EUROCOM M620NC Service Manual page 31

4. Carefully lift the hard disk assembly up and disconnect the cable at point
d.
5. Remove the hard disk 7 from the bay, and then remove the case
e.
8
6. Reverse the process to install any new hard disk; however if you are replacing a hard disk with a hard disk of a different
size from that originally provided in the bay, then see overleaf.
.
6
d.
6
8 .
e.
9
7

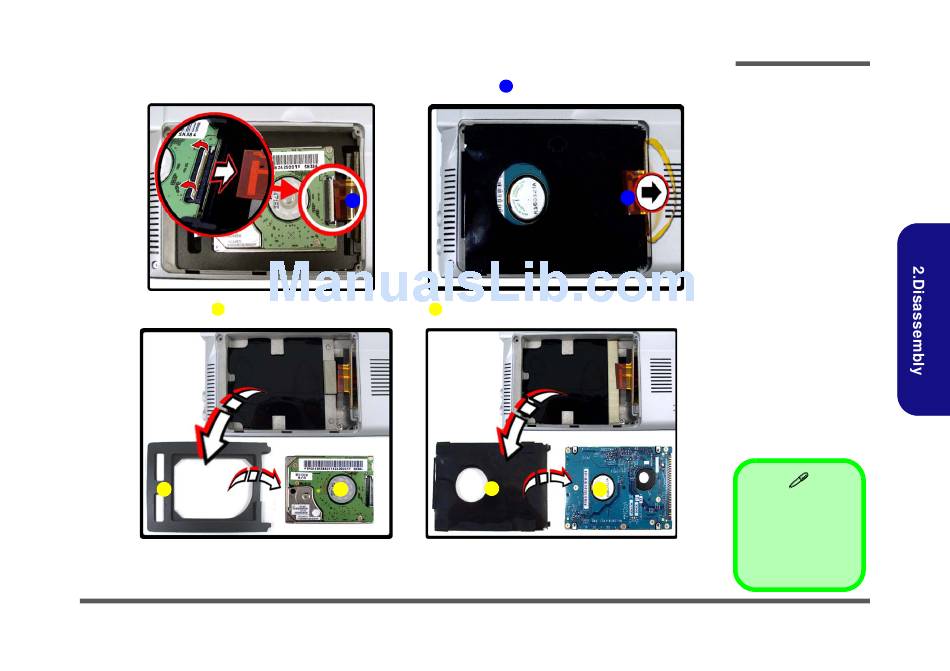

Figure 3
HDD Assembly
Removal (cont'd)
d. Disconnect the cable.
e. Remove the hard disk
and case.
6
7
7. HDD
8. Bottom Sponge Mod-
ule
Disks
9. 2.5" HDD Mylar Case
Removing the Hard Disk Drive 2 - 7
Disassembly
for 1.8" Hard
