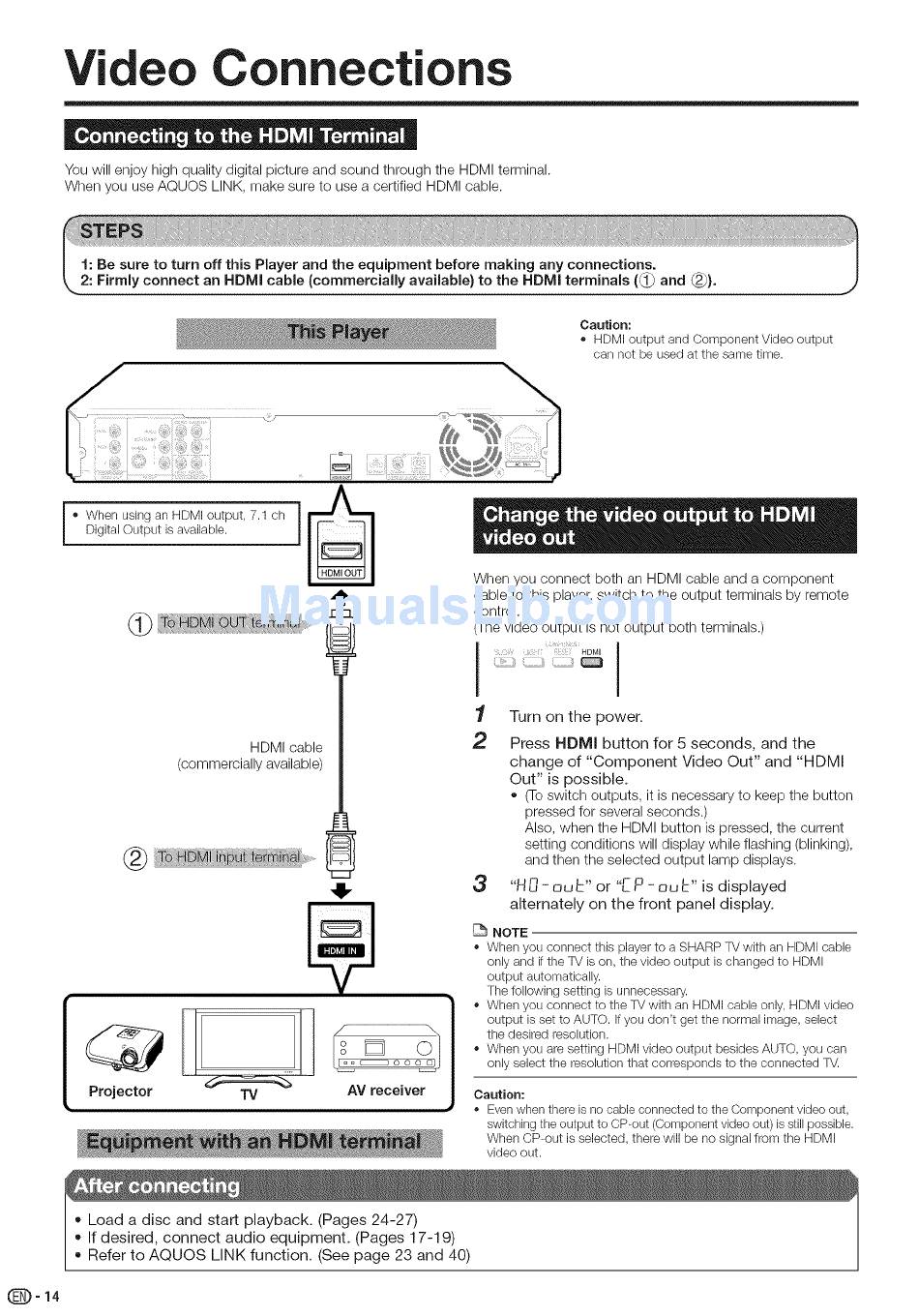

Video Connections
You will enjoy high quality digital picture and sound through the HDMI terminal.
When you use AQUOS LINK, make sure to use a certified HDMI cable.
2: Firmly connect an HDMI cable (commercially available} to the HDMI terminals (_ and (_}.
" When using an HDMI output, 7.1 ch
DigitaJ Output is available.
Caution:
,, HDMI output and Component Video output
can not be used at the same time.
HDMI cable
(commercially available)
@' I
When you connect both an HDMI cable and a component
cable to this player, switch to the output terminals by remote
control.
(The video output is not output both terminals.)
I I
HDMI
1 Turn on the power.
2
3
Press HDMI button for 5 seconds, and the
change of "Component Video Out" and "HDMI
Out" is possible.
• (Toswitch outputs, it is necessaryto keep the button
pressed for severalseconds.)
Also, when the HDMI button is pressed, the current
setting conditions will display whileflashing (blinking),
and then the selected output lamp displays.
"Hu n - ouL" or "El u - ouL" is displayed
alternately on the front panel display.
Projector
TV
NOTE
" When you connect this player to a SHARP TV with an HDMI cable
only and if the 77/is on, the video output is changed to HDMI
output automatically.
The following setting is unnecessary.
,, When you connect to the 77/with an HDMI cable only, HDMI video
output is set to AUTO. If you don't get the normal image, select
the desired resolution.
,, When you are setting HDMI video output besides AUTO, you can
only select the resolution that corresponds to the connected 774
Caution:
,, Even when there is no cable connected to the Component video out,
switching the output to CP-out (Component video out) is still possible.
When CP out is selected, there will be no signal from the HDMI
video out.
,, Load a disc and start playback. (Pages 24-27)
• If desired, connect audio equipment. (Pages 17-19)
Refer to AQUOS LINK function. (See page 23 and 40)
