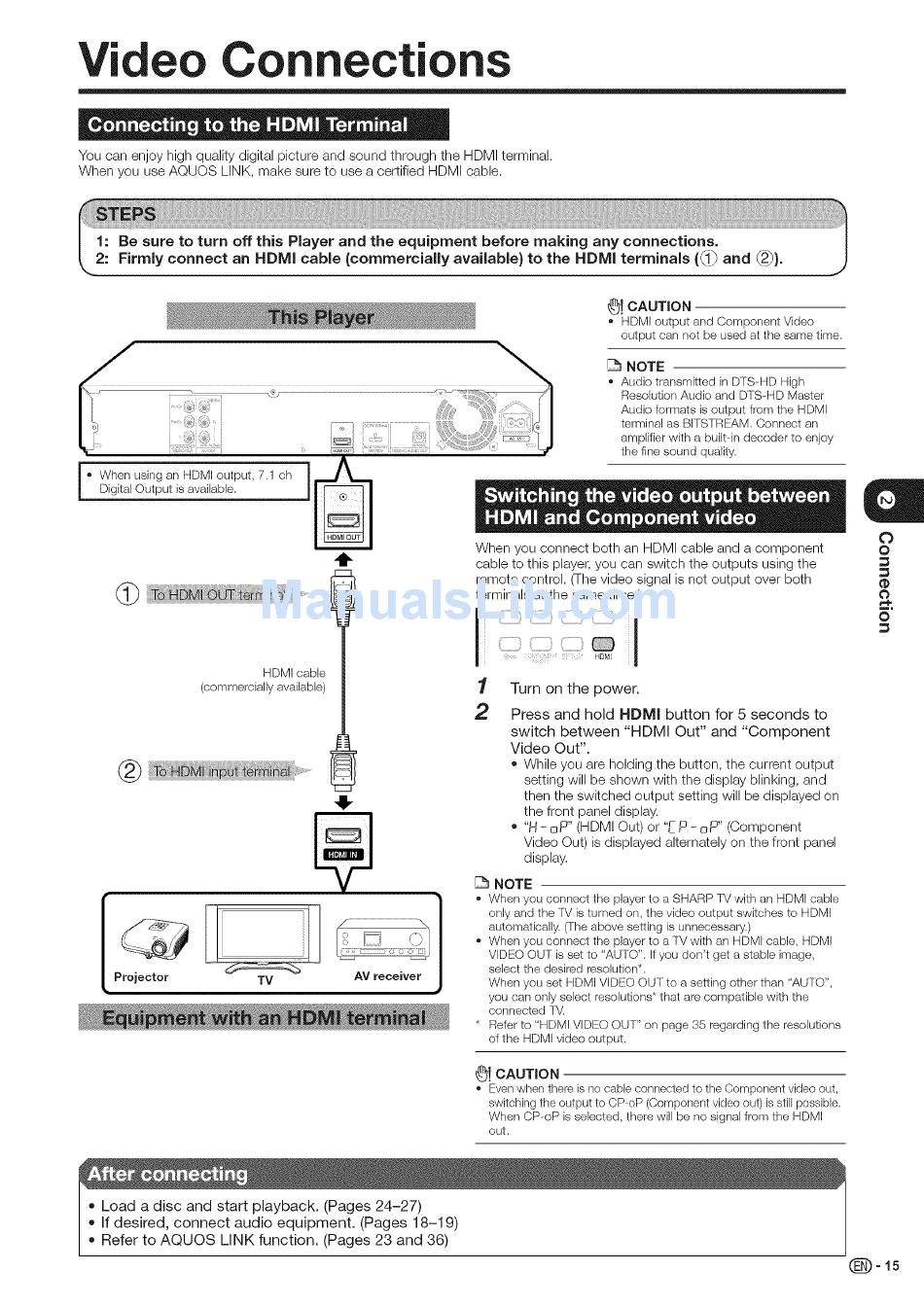

Video Connections
You can enjoy high quality digital picture and sound through the HDMI terminal.
When you use AQUOS LINK, make sure to use a certified HDMI cable.
" hen using an HDMI output, 7.1 ch
Digital Output is available.
Projector
_! CAUTION
,' HDMI output and Component Video
output can not be used at the same time.
NOTE
,' Audio transmitted in DrS-HD High
Resolution Audio and DTS-HD Master
Audio formats is output from the HDMI
terminal as BITSTREAM. Connect an
amplifier with a built-in decoder to enjoy
the fine sound quality.
HDMI
1
2
When you connect both an HDMI cable and a component
cable to this player, you can switch the outputs using the
remote control. (The video signal is not output over both
terminals at the same time.)
!
Turn on the power.
Press and hold HDMI button for 5 seconds to
switch between "HDMI Out" and "Component
Video Out".
,, While you are holding the button, the current output
setting will be shown with the display blinking, and
then the switched output setting will be displayed on
the front panel display.
" "H - oP" (HDMI Out) or "__ _o_ aP" (Component
Video Out) is displayed alternately on the front panel
display.
NOTE
,' When you connect the player to a SHARP TM with an HDMI cable
only and the R/is turned on, the video output switches to HDMI
automatically. (The above setting is unnecessary.)
,, When you connect the player to a TMwith an HDMI cable, HDMI
VIDEO OUT is set to "AUTO". If you don't get a stable image,
select the desired resolution*.
When you set HDMI VIDEO OUT to a setting other than "AUTO",
you can only select resolutions* that are compatible with the
connected TM
* Refer to "HDMI VIDEO OUT" on page 35 regarding the resolutions
of the HDMI video output.
_! CAUTION
,' Even when there is no cable connected to the Component video out,
switching the output to CP oP (Component video out) is still possible.
When CP-oP is selected, there will be no signal from the HDMI
out.
O
O
@
0
o Load a disc and start playback. (Pages 24-27)
o If desired, connect audio equipment. (Pages 18-19)
o Refer to AQUOS LINK function. (Pages 23 and 36)
_-15
