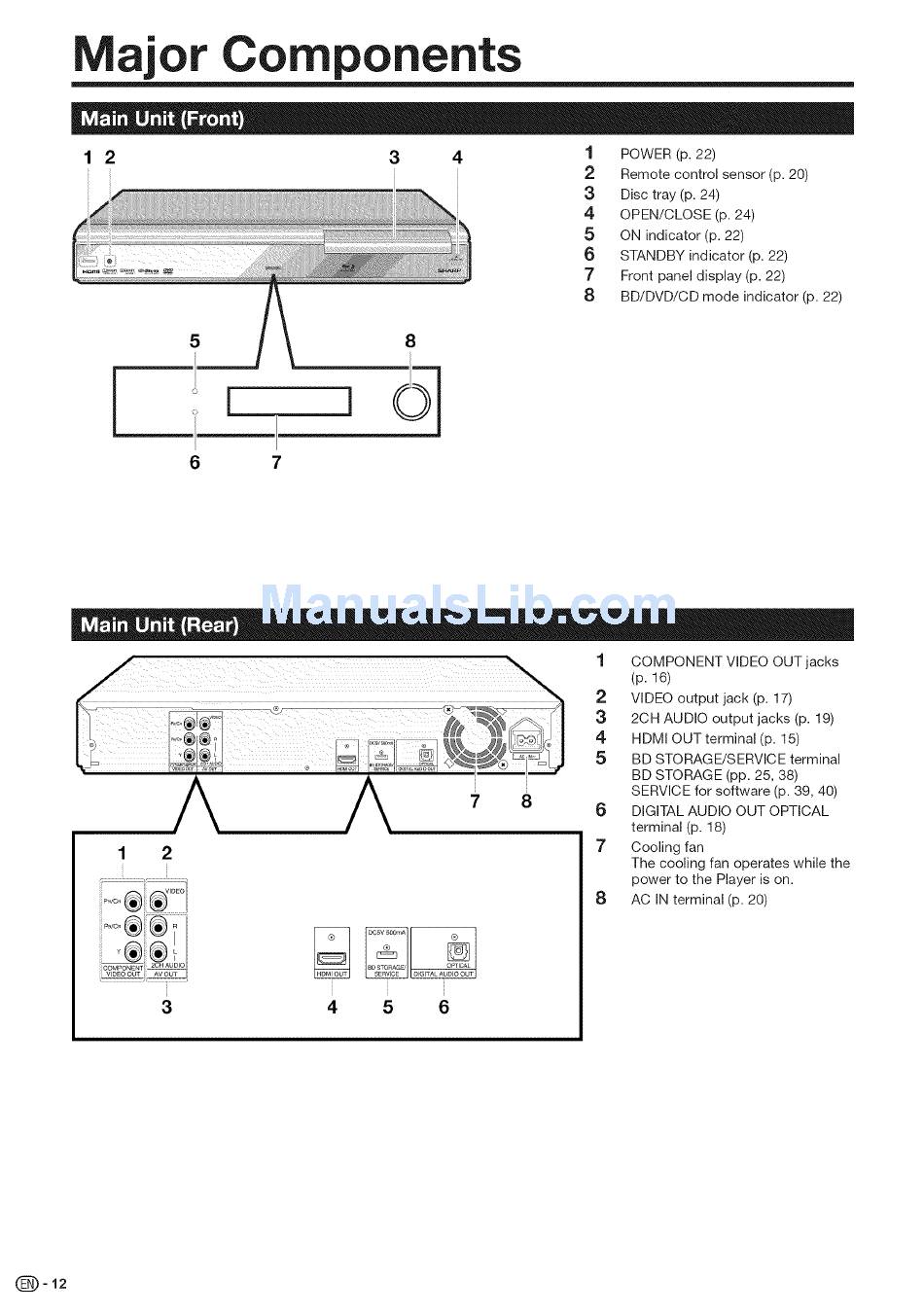

ajor Components
1 2
3
4
1
POWER (p.22)
2
Remote control sensor (p. 20)
3
Disc tray (p. 24)
4
OPEN/CLOSE (p. 24)
5
ON indicator (p. 22)
6
STANDBY indicator (p. 22)
7
Front panel display (p. 22)
8
BD/DVD/CD mode indicator (p. 22)
5
[
6
7
1
7
2
3
4
5
6
1
COMPONENT VIDEO OUT jacks
(p. 16)
2
VIDEO output jack (p. 17)
3
2OH AUDIO output jacks (p. 19)
4
HDMI OUT terminal (p. 15)
5
BD STORAGE/SERVICE terminal
BD STORAGE (pp. 25, 38)
SERVICE for software (p. 39, 40)
6
DIGITAL AUDIO OUT OPTICAL
terminal (p. 18)
7
Cooling fan
The cooling fan operates while the
power to the Player is on.
8
AC IN terminal (p. 20)
(_=12
