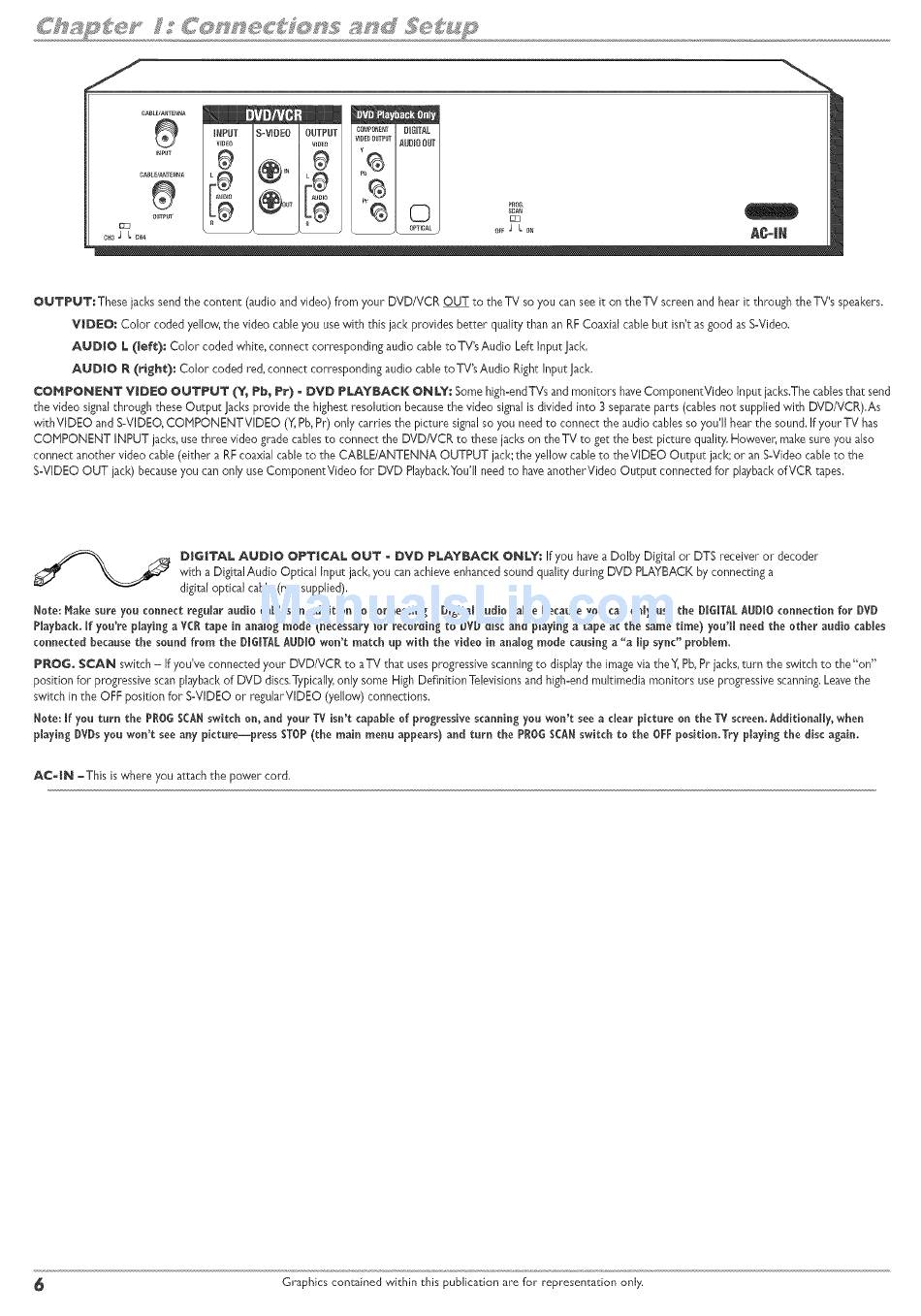

OUTPUT:
These jacksseed the content (audio and video) flora your DVD/VCR OUT to the TV so you can see it on the TV screen and hear it through the TV's speakers.
VIDEO: Color coded yellow, the video cableyou use with this jack provides better quality than an RFCoaxial cable but isn't asgood as S-Video.
AUB|O
L (_ef_): Color coded white, connect corresponding audio cable to TV'sAudio Left Input Jack,
AUDIO
R (right):
Color coded red, connect corresponding audio cable toTV's Audio Right Input lack.
¢OHPON_T
VJBEO OUTPUT
(% Pb_ P_) - BVD PLAYBACK O_LY: Some high-endTVs and monitors haveComponentVideo input jacks.Thecablesthat send
the video signalthrough these Output lacks provide the highest resolution becausethe video signal is divided into ] separate parts (cablesnot supplied with DVD/VCR),As
withVlDEO and SoVIDEO, C ONPONENTVIDEO
(Y,Pb,Pr) only carries the picture signal so you need to connect the audio cables so you'll hear the sound. If your TV has
COHPONENT INPUT jacks,use three video grade cablesto connect _he DVDNCR to these jacks on the TV to get the best picture quality. However, make sure you also
connect another video cable (either a RFcoaxial cable to the CABLE/ANTENNA OUTPUT jack;the yellow cable to theVlDEO Output bck; or an SoVideocable to the
SoVlDEOOUT jack) becauseyou can only use ComponentVideo for DVD Playback.You'llneed to have anotherVideo Output connected for playbackof VCR tapes,
D|G|TAL
AUDIO
OPTICAL
OUT
- DVD PLAYBACK
ONLY: If you have a Dolby Digital or DTS receiver or decoder
with a DigitalAudio Optical input bck, you can achieve enhancedsound quality during DVD PLAYBACK by connecting a
digital optical cable (not supplied),
Note: _ake sure you connect regn_ar audio cables in addition to connecting a Digital Audio cable because you can on_y use the D_G_TAL AUD_Oconnection for DVD
Playback. Jf you're pJaying a VCRtape in analog mode (necessary for recording to DVD disc and p_ayinga tape at the same time) you'll need the other audio cables
connected because the sound from the D_G_TAL A UDIOwon't match up with the video in analog mode causing a "a ffp sync" problem.
P_OG. SCAN switch - if you've connected your DVD/VCR to aTV thac usesprogressive scanningto displaythe image via the_ Pb,Pr bcks, turn the switch to the "on"
position for progressive scan playbackof DVD discs,Typically, o nly some High Definition Televisionsand high-end mukimedia monitors use progressive scanning.Leavethe
switch in the OFF position for S-VIDEO or reguJarVlDEO (yellow') connections.
Note: Jf you tern the P_0G SCANswitch on, and your TV isn't capable of progressive scanning you won't see a dear picture on the TV screen. Additionally, when
ptayingDVDsyou won't see any pkture--press STOP(the main menu appears) and turn the PROGSCANswitch to the OFFposition.Try ptayingthe disc again.
A¢-_N -This is where you attach the power cord.
Graphics contained
within
this publication
are for representation
only.
