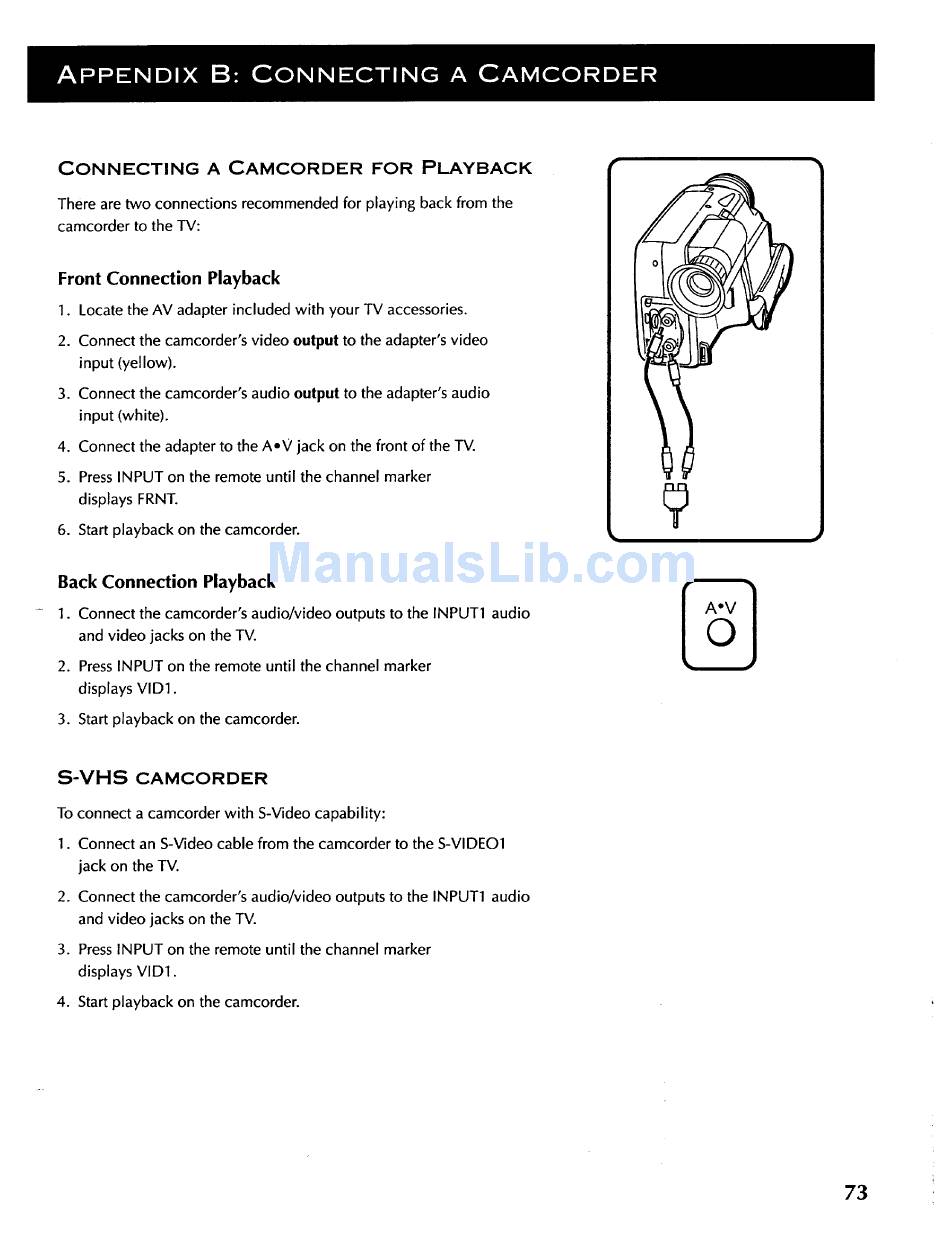

CONNECTING A CAMCORDER FOR PLAYBACK
There are two connections recommended for playing back from the
camcorder to the TV:
Front Connection Playback
1. Locate the AV adapter included with your TV accessories.
2. Connect the camcorder's video output to the adapter's video
input (yellow).
3. Connect the camcorder's audio output to the adapter's audio
input (white).
4. Connect the adapter to the AoV jack on the front of the TV.
5. Press INPUT on the remote until the channel marker
displays FRNT.
6. Start playback on the camcorder.
Back Connection Playback
1. Connect the camcorder's audio/video outputs to the INPUT1 audio
and video jacks on the TV.
2. Press INPUT on the remote until the channel marker
displays VlD1.
3. Start playback on the camcorder.
A°V
O
S-VHS CAMCORDER
To connect a camcorder with S-Video capability:
I. Connect an S-Video cable from the camcorder to the S-VlDEOI
jack on the TV.
2. Connect the camcorder's audio/video outputs to the INPUTI audio
and video jacks on the TV.
3. Press INPUT on the remote until the channel marker
displays VlDI.
4. Start playback on the camcorder.
73
