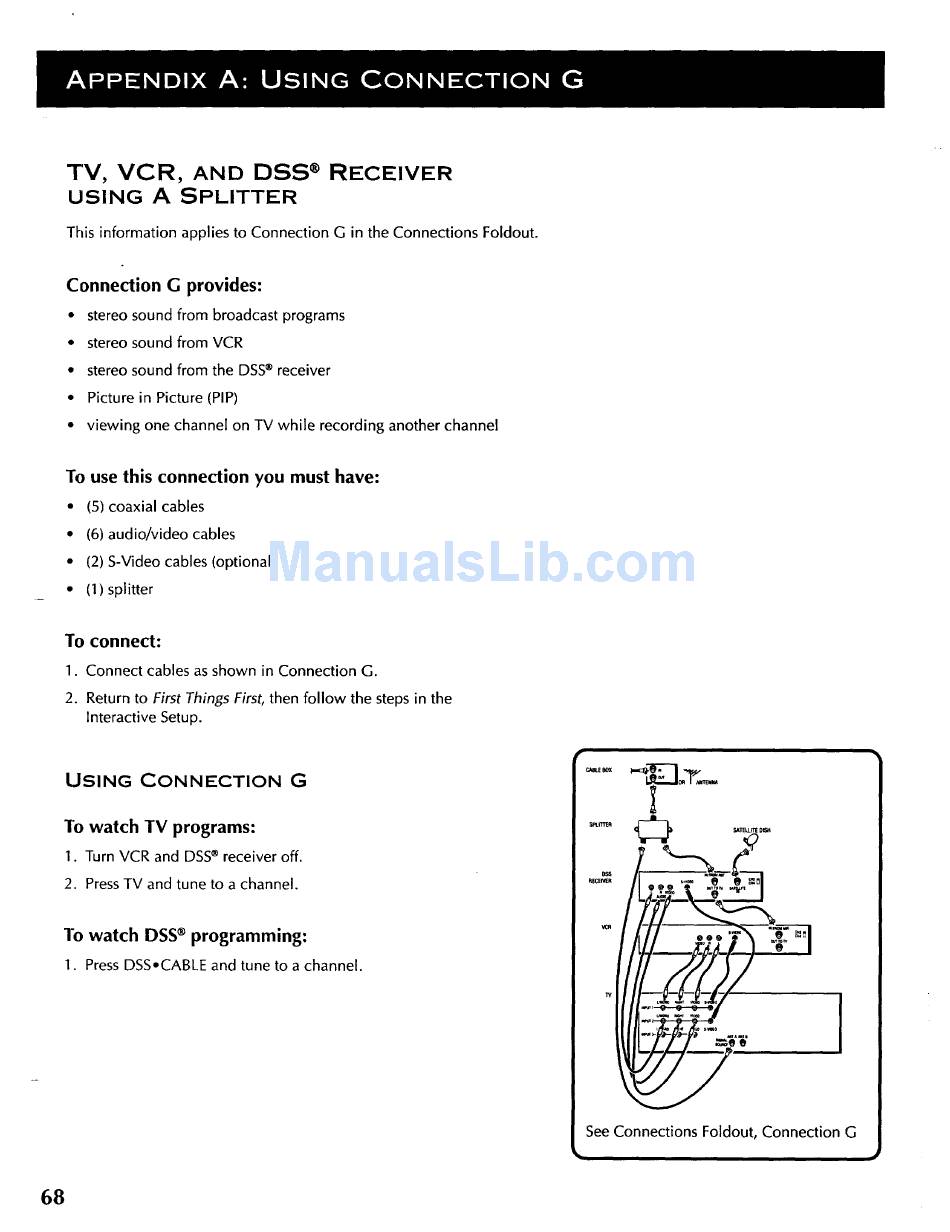

Connection G: Tv, Vcr And Dss® Receiver Using A Splitter - ProScan PS52690 User Manual

TV, VCR, AND DSS ® RECEIVER
USING
A
SPLITTER
This information applies to Connection G in the Connections Foldout.
Connection G provides:
• stereo sound from broadcast programs
• stereo sound from VCR
• stereo sound from the DSS® receiver
• Picture in Picture (PIP)
• viewing one channel on TV while recording another channel
To use this connection you must have:
• (5) coaxial cables
• (6) audio/video cables
• (2) S-Video cables (optional)
• (1) splitter
To connect:
1. Connect cables as shown in Connection G.
2. Return to First Things First, then follow the steps in the
Interactive Setup.
USING CONNECTION
G
To watch TV programs:
1. Turn VCR and DSS ® receiver off.
2. PressTV and tune to a channel.
To watch DSS ® programming:
1. Press DSS•CABLE and tune to a channel.
ii i
F
See Connections Foldout, Connection G
68
