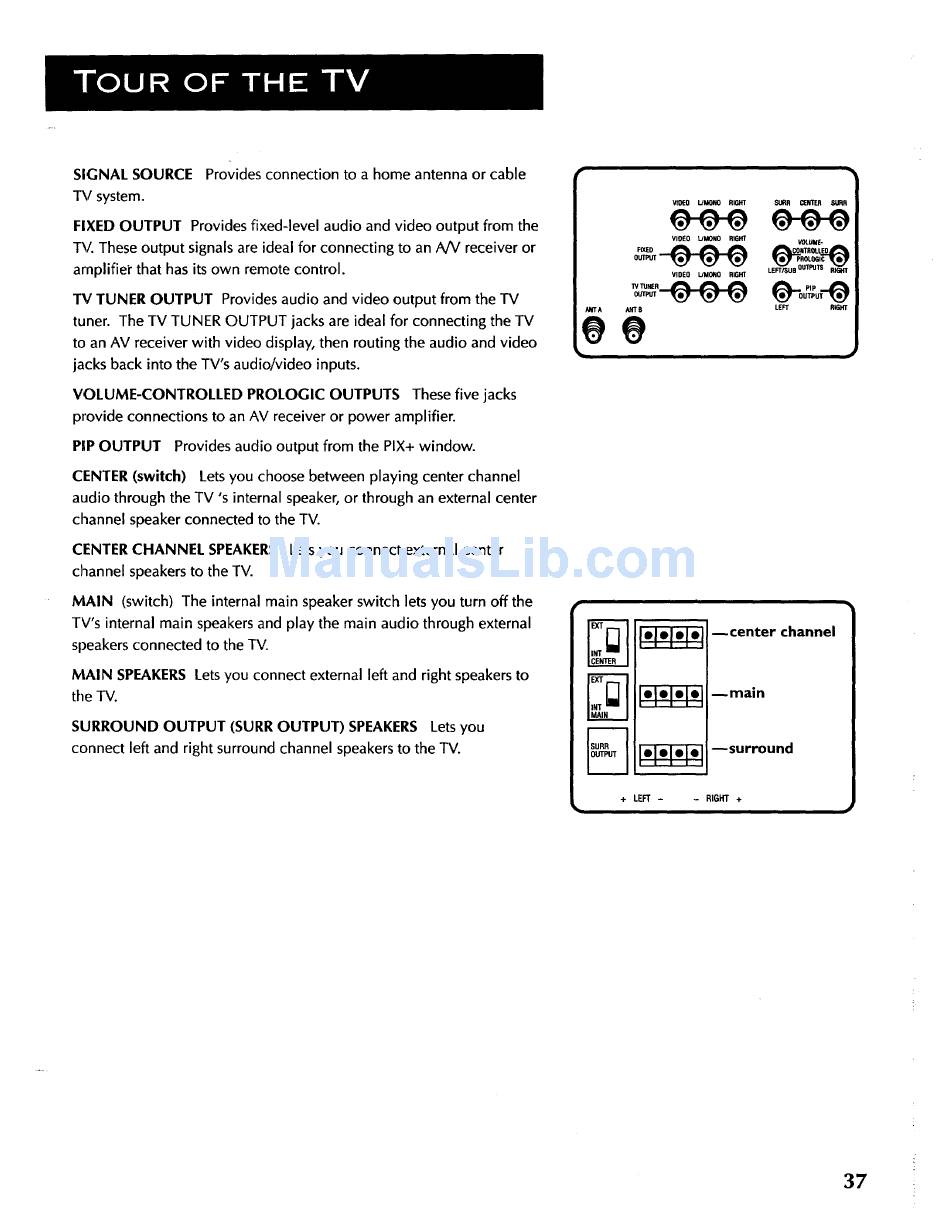

SIGNAL SOURCE Provides connection to a home antenna or cable
TV system.
FIXED OUTPUT Provides fixed-level audio and video output from the
TV. These output signals are ideal for connecting to an AN receiver or
arnplifiei" that has its own remote control.
TV TUNER OUTPUT Provides audio and video output from the TV
tuner. The TV TUNER OUTPUT jacks are ideal for connecting the TV
to an AV receiver with video display, then routing the audio and video
jacks back into the TV's audio/video inputs.
VOLUME-CONTROLLED PROLOGIC OUTPUTS These five jacks
provide connections to an AV receiver or power amplifier.
PIP OUTPUT Provides audio output from the PIX+ window.
CENTER (switch) Lets you choose between playing center channel
audio through the TV's internal speaker, or through an external center
channel speaker connected to the TV.
CENTER CHANNEL SPEAKERS Lets you connect external center
channel speakers to the TV.
MAIN (switch) The internal main speaker switch lets you turn off the
TV's internal main speakers and play the main audio through external
speakers connected to the TV.
MAIN SPEAKERSLets you connect external left and right speakers to
tile TV.
SURROUND OUTPUT (SURR OUTPUT) SPEAKERS Lets you
connect left and right surround channel speakers to the TV.
k_rrA N/TB
VIDEO UMONO RIC41T SURR _
VIDEO UI_ONO RIGHT VOLlilI¢E-
PAOLI_IG
VIDEO L/I_IONO RIGHT LEFT/_jBOU_TS
RIGHT
LEFT RIGHT
37
