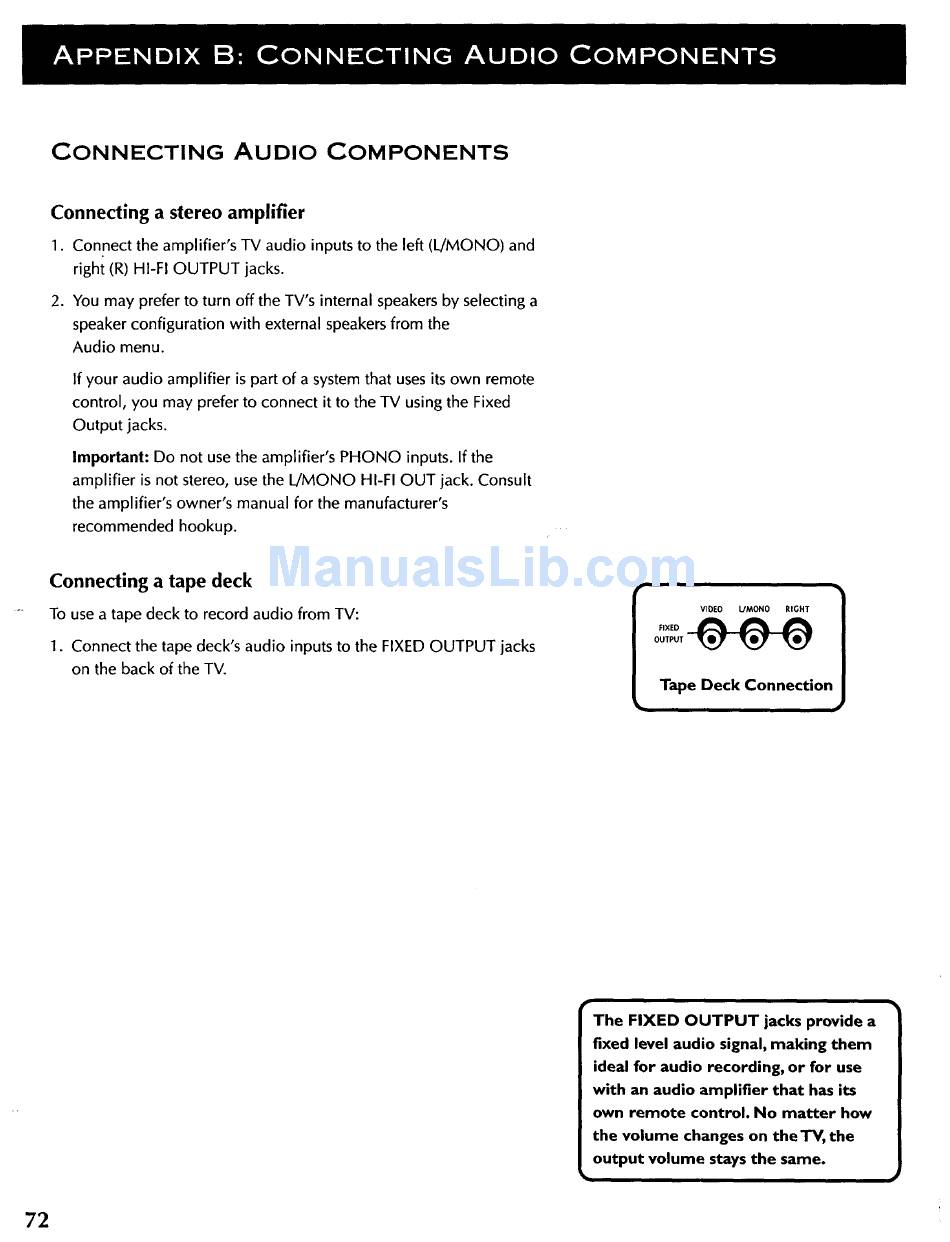

CONNECTING AUDIO COMPONENTS
Connecting a stereo amplifier
1. Connect the amplifier's TV audio inputs to the left (L/MONO) and
right (R) HI-FI OUTPUT jacks.
2. You may prefer to turn off the TV's internal speakers by selecting a
speaker configuration with external speakers from the
Audio menu.
If your audio amplifier is part of a system that uses its own remote
control, you may prefer to connect it to the TV using the Fixed
Output jacks.
Important: Do not use the amplifier's PHONO inputs. If the
amplifier is not stereo, use the L/MONO HI-FI OUT jack. Consult
the amplifier's owner's manual for the manufacturer's
recommended hookup.
Connecting a tape deck
To use a tape deck to record audio from TV:
1. Connect the tape deck's audio inputs to the FIXED OUTPUT jacks
on the back of the TV.
I VIDEO L/MONO RIGH_ 1
FIXED
OUTPUT
Tape Deck Connection
The FIXED OUTPUT jacks provide a
fixed level audio signal, making them
ideal for audio recording, or for use
with an audio amplifier that has its
own remote control. No matter how
the volume changes on the TV, the
output volume stays the same.
72
