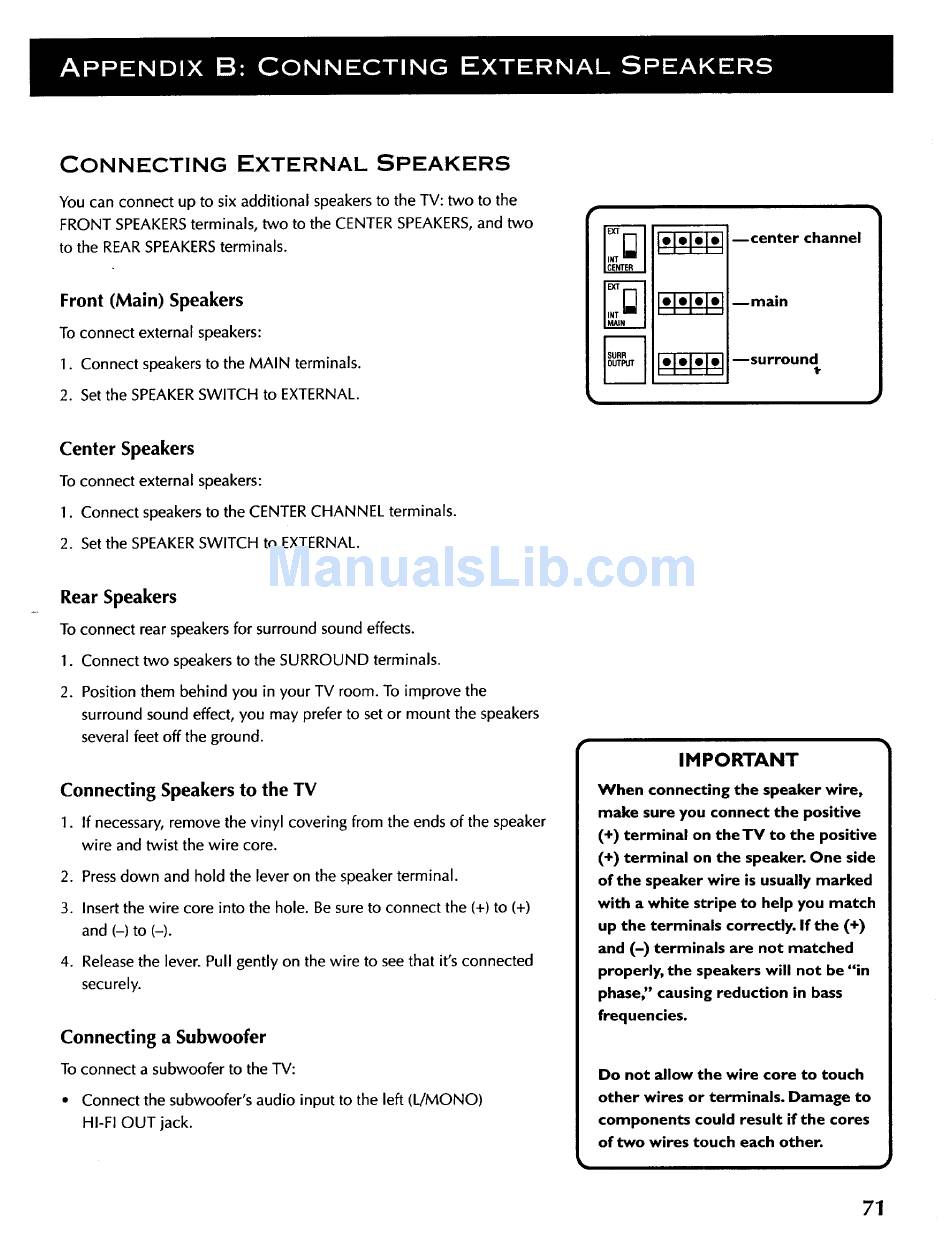

CONNECTING EXTERNAL SPEAKERS
You can connect up to six additional speakers to the TV: two to the
FRONT SPEAKERSterminals, two to the CENTER SPEAKERS,and two
to the REAR SPEAKERSterminals.
Front (Main) Speakers
To connect external speakers:
1. Connect speakers to the MAIN terminals.
2. Set the SPEAKERSWITCH to EXTERNAL.
I,,_ Ill
I,_TIII
J
SURR
OUTPUT
mcenterchannel
remain
--surround
Center Speakers
To connect external speakers:
1. Connect speakers to the CENTER CHANNEL terminals.
2. Set the SPEAKERSWITCH to EXTERNAL.
Rear Speakers
To connect rear speakers for surround sound effects.
1. Connect two speakers to the SURROUND terminals.
2. Position them behind you in your TV room. To improve the
surround sound effect, you may prefer to set or mount the speakers
several feet off the ground.
Connecting Speakers to the TV
1. If necessary, remove the vinyl covering from the ends of the speaker
wire and twist the wire core.
2. Press down and hold the lever on the speaker terminal.
3. Insert the wire core into the hole. Be sure to connect the (+) to (+)
and (-) to (-).
4. Release the lever. Pull gently on the wire to see that it's connected
securely.
Connecting a Subwoofer
To connect a subwoofer to the TV:
• Connect the subwoofer's audio input to the left (I_/MONO)
HI-FI OUT jack.
IMPORTANT
When connecting the speaker wire,
make sure you connect the positive
(+) terminal on theTV to the positive
(+) terminal on the speaker. One side
of the speaker wire is usually marked
with a white stripe to help you match
up the terminals correctly. If the (+)
and (-) terminals are not matched
properly, the speakers will not be "in
phase," causing reduction in bass
frequencies.
Do not allow the wire core to touch
other wires or terminals. Damage to
components could result if the cores
of two wires touch each other.
71
