AVT 100 Series

sPeciFications

rF video inPUt
Number / signal type . . . . . . . . . . . 1 radio frequency (RF)
Connectors
NTSC model . . . . . . . . . . . . . . . . . . . . . . . 1 female F connector
PAL model . . . . . . . . . . . . . . . . . . . . . . . . . 1 female IEC 169-2, 75 ohm connector
Impedance . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Sensitivity. . . . . . . . . . . . . . . . . . . . . . . . . -20 to +20 dBmV
Frequency range . . . . . . . . . . . . . . . . 48 MHz to 855 MHz
NTSC off air TV channels ........... 2 to 69
Japan .................................. 1-62
NTSC CATV cable channels ....... 2 to 125
Japan .................................. 1-63
PAL off air TV and cable
Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 - 855
Vertical frequency
NTSC model . . . . . . . . . . . . . . . . . . . . . . . 60 Hz
PAL model . . . . . . . . . . . . . . . . . . . . . . . . . 50 Hz

video oUtPUt

Number / signal type . . . . . . . . . . . 1 composite video
Connectors . . . . . . . . . . . . . . . . . . . . . . . 1 BNC female
Nominal level . . . . . . . . . . . . . . . . . . . . 1 Vp-p for composite video
Minimum / maximum levels . . 0.4 V to 1.0 Vp-p (follows input)
Impedance . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
DC offset . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 mV with input at 0 offset
sync
Standards
NTSC model . . . . . . . . . . . . . . . . . . . . . . . NTSC 3.58
International model . . . . . . . . . . . . . . . PAL
aUdio
THD + Noise . . . . . . . . . . . . . . . . . . . . . . NTSC: 0.4% @ 1 kHz
PAL: 0.6% @ 1 kHz
S/N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NTSC: -55 dB @ 1 kHz
PAL: -58 dB @ 1 kHz
Stereo channel separation . . . . >35 dB @ 1 kHz
rF aUdio inPUt
Number / signal type . . . . . . . . . . . 1 (as part of the RF signal)
NOTE: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Europe Europe Dubai Dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX

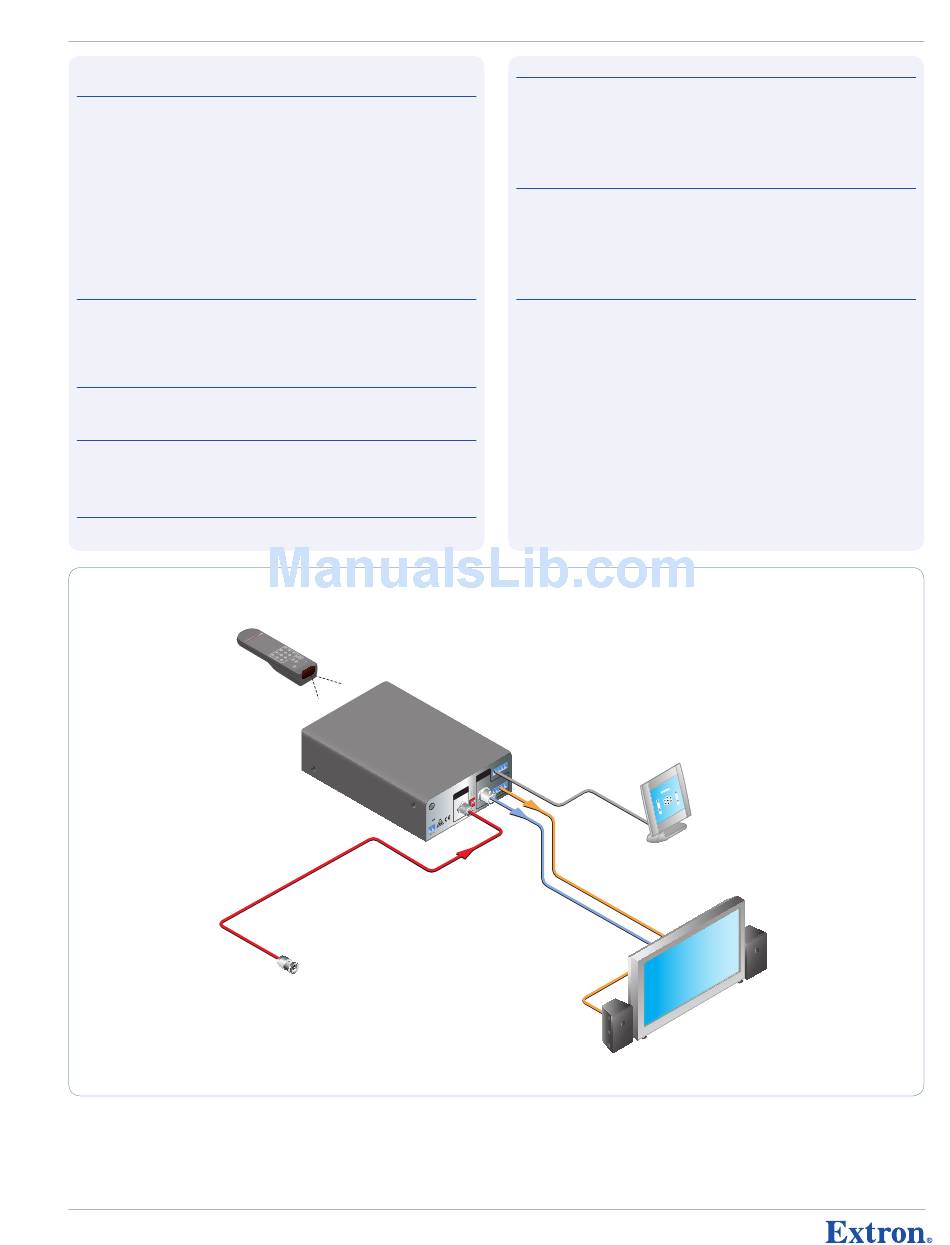

Optional
IR Remote
Extron
AVT 100
TV/Cable Demodulator
T P
O U
V ID
T IN
A N
T E D R F
L IS
1 T 2 3
.
I. T. E
U S
C
R
W E
P O
V A X
1 2
A M
0 .5
RF
Cable
Feed
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX
e n c o D e r S , D e c o D e r S , a n D T r a n S c o D e r S

aUdio oUtPUt

Number / signal type . . . . . . . . . . . 1 balanced/unbalanced;
stereo for NTSC, PAL B/G, PAL D/K
mono only for PAL I
Connectors . . . . . . . . . . . . . . . . . . . . . . . (1) 3.5 mm captive screw connector, 5 pole
Impedance . . . . . . . . . . . . . . . . . . . . . . . . 50 ohms unbalanced, 100 ohms balanced
Gain error . . . . . . . . . . . . . . . . . . . . . . . . . ± 0.5 dB channel to channel
Nominal level . . . . . . . . . . . . . . . . . . . . 0 dBu
Output level . . . . . . . . . . . . . . . . . . . . . . 1 Vrms (max.)
control / reMote — tUner
Serial control port . . . . . . . . . . . . . . . RS-232; 3.5 mm captive screw connector, 5 pole
Baud rate and protocol . . . . . . . . . 9600 baud, 8 data bits, 1 stop bit, no parity
Serial / IR control pin
configurations . . . . . . . . . . . . . . . . . . . 1 = TX, 2 = RX, 3 = GND, 4 = modulated IR, 5 = +12 VDC
IR controller module . . . . . . . . . . . . AVT Remote (optional)
30' maximum, 40 degrees off axis
Program control . . . . . . . . . . . . . . . . . Extron's control/configuration program for Windows
Extron's Simple Instruction Set (SIS
general
External power supply . . . . . . . . . 100 VAC to 240 VAC, 50/60 Hz, external, universal; to 12 VDC,
1 A (max.), regulated
Power input requirements . . . . . 12 VDC, 0.5 A
Temperature / humidity . . . . . . . . Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing
Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing
Rack mount . . . . . . . . . . . . . . . . . . . . . . Yes, with optional 1U, 9.5" deep rack shelf (RSU 129, #60-190-01; RSB 129,
#60-604-01)
Enclosure type . . . . . . . . . . . . . . . . . . . Metal
Enclosure dimensions . . . . . . . . . . 1.7" H x 4.3" W x 6.7" D (1U high, quarter rack wide)
4.3 cm H x 10.9 cm W x 17.0 cm D
(Depth excludes connectors.)
Product weight . . . . . . . . . . . . . . . . . . 0.8 lbs (0.4 kg)
Shipping weight . . . . . . . . . . . . . . . . . 3 lbs (2 kg)
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . ISTA 1A in carton (International Safe Transit Association)
Compliances . . . . . . . . . . . . . . . . . . . . . CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30,000 hours
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years parts and labor
NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.
