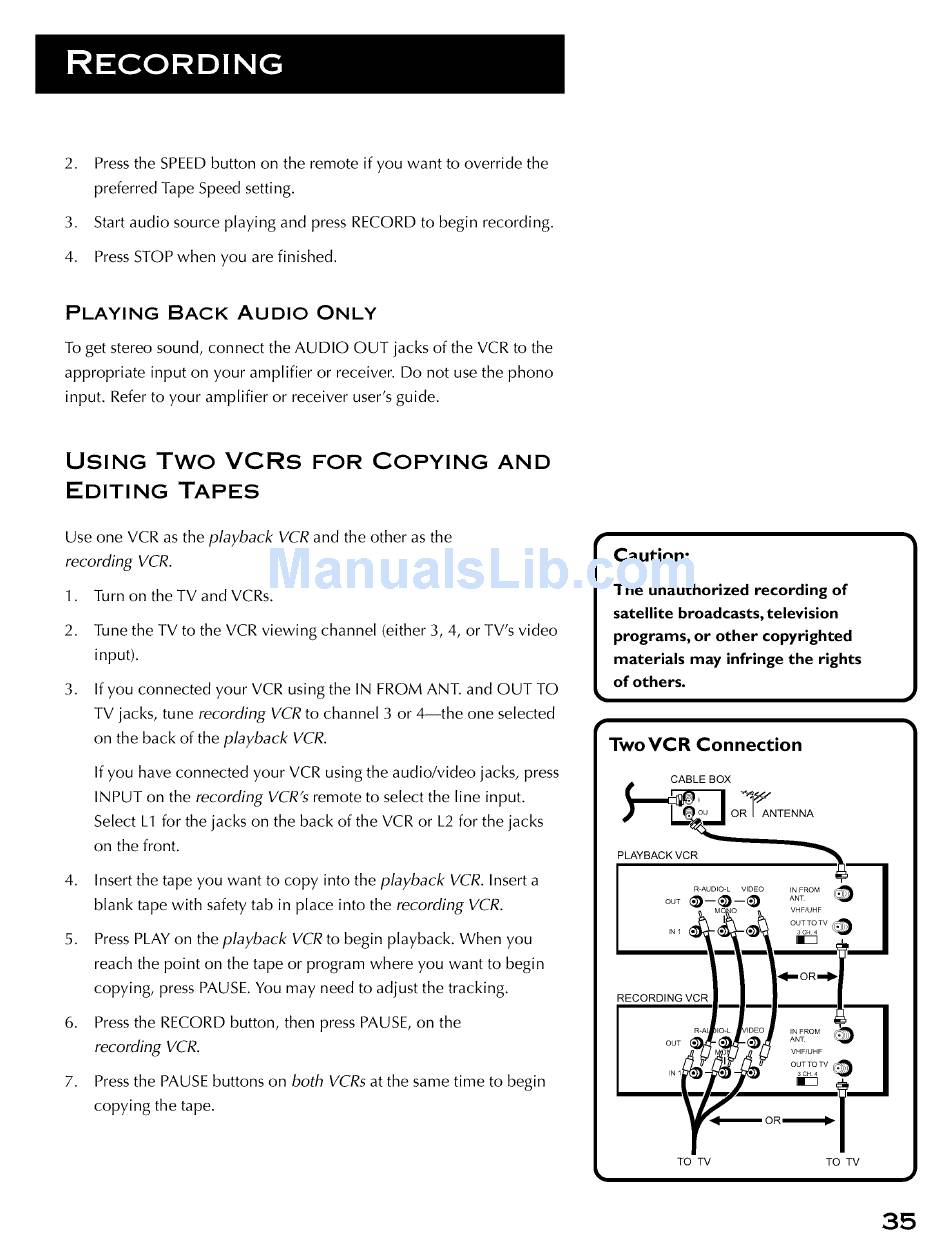

ProScan PSVR71 User Manual page 37

2. Press the SPEEDbutton on the remote if you want to override the
preferred Tape Speed setting.
3. Start audio source playing and press RECORD to begin recording.
4. Press STOP when you are finished.
PLAYING BACK AUDIO ONLY
To get stereo sound, connect the AUDIO OUT jacks of the VCR to the
appropriate input on your amplifier or receiver. Do not use the phono
input. Refer to your amplifier or receiver user's guide.
USING TWO VCRS
FOR COPYING AND
EDITING TAPES
Use one VCR as the playback VCR and the other as the
recording VCR.
1. Turn on theTV and VCRs.
2.
.
Tune the TV to the VCR viewing channel (either 3, 4, or TV's video
input).
If you connected your VCR using the IN FROM ANT. and OUT TO
TV jacks, tune recording VCR to channel 3 or 4--the one selected
on the back of the playback VCR.
If you have connected your VCR using the audio/video jacks, press
INPUT on the recording VCR's remote to select the line input.
Select L1 for the jacks on the back of the VCR or L2 for the jacks
on the front.
4.
.
.
7.
Insert the tape you want to copy into the playback VCR. Insert a
blank tape with safety tab in place into the recording VCR.
Press PLAY on the playback VCR to begin playback. When you
reach the point on the tape or program where you want to begin
copying, press PAUSE. You may need to adjust the tracking.
Press the RECORD button, then press PAUSE, on the
recording VCR.
Pressthe PAUSE buttons on both VCRs at the same time to begin
copying the tape.
Two VCR Connection
O2_ANTENNA
PLAYBACK VGR
RECORDING VCR
TO TV TO TV
35
