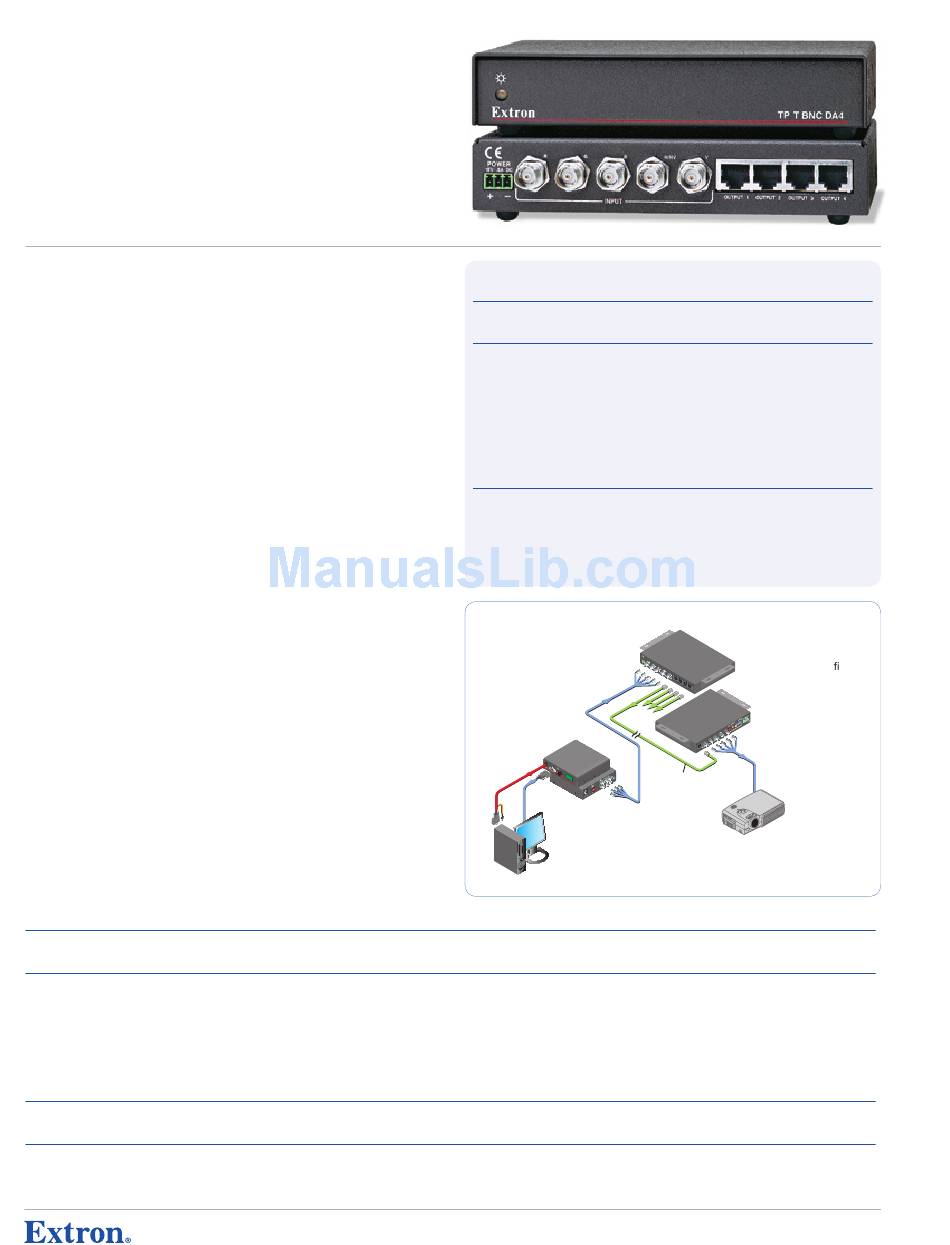

Extron electronics TP T BNC DA4 Specification Sheet

TP T BNC DA4
TP - Twisted Pair Transmitter/Distribution Amplifier for RGBHV

FeATures

Input: Female BNCs
•
• Output: Four female RJ-45 connectors
• Transmits signals to four TP R Series receivers
• Four individually isolated, buffered, and amplified outputs
• Supports RGBHV, RGBS,RGsB, compon
• Transmits signals 1,000 feet (300 meters) or more over Category 5, 5e, or
6 UTP cable
• Through-desk, under-desk, or rack-mountable
• External universal power supply included, part # 70-057-01 — Provides worldwide
power compatibility.

descriPTion

The Extron TP T BNC DA4 video distribution amplifier/transmitter splits a single analog
computer-video input into four identical outputs and transmits the signals 1,000 feet
(300 meters) or more via Category 5, 5e, or 6 shielded twisted pair or unshielded twisted pair
cable. The TP T BNC DA4 transmits the computer-video to four compatible Extron twisted pair
receivers with no loss of signal integrity.
The TP T BNC DA4 is compatible with nearly every computer and video signal type, including
VGA-UXGA, composite video, component video, and S-video. Optional mounting kits allow the
TP T BNC DA4 video distribution amplifier/transmitter to be mounted on a rack shelf, or under
or through a desk surface.
Model
TP T BNC DA4

coMPATible receiVers

TP R BNC A
TP R BNC AV
TP R 15HD A
VTR001
VTR001 AAP
VTR001 MAAP

included Accessories

EPS 1508 B

oPTionAl Accessories

RSU 129
RSM 100
MBD 129
104
nt video, S-video, and composite video
e
Version descriPTion
Four Output Transmitter/DA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Model descriPTion
TP - Twisted Pair Receiver for RGBHV and Audio
TP - Twisted Pair Receiver for RGBHV, Composite Video, and Audio
TP R - Twisted Pair Receiver for RGBHV and Audio
VT - VGA Twisted Pair Receiver for RGBHV
VT - VGA Twisted Pair Receiver for RGBHV - AAP Version
VT - VGA Twisted Pair Receiver for RGBHV - MAAP Version
Model descriPTion
Extron Desktop Power Supply - 15VDC, 800mA, wire
Model descriPTion
1U 9.5" Deep Universal Rack Shelf Kit
Rack Shelf Mount Kit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1U, 1/2 & 1/4 Rack Width Through-Desk Mount Kit for Two-Piece Enclosure
usa West usa West
+1.714.491.1500 / +800.633.9876 +1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX +1.714.491.1517 FAX

sPeciFicATions

Video — Video Models
Number / Signal type . . . . . . . . . . . 4 sets of proprietary analog signals
Connectors . . . . . . . . . . . . . . . . . . . . . . . 4 shielded RJ-45 female
Video inPuT
Number / Signal type . . . . . . . . . . . 1 analog RGBHV, RGBS, RGsB, component video, or S-video; or
1 S-video and 1 NTSC/PAL/SECAM composite video from a single source; or
3 NTSC/PAL/SECAM composite video from a single source
Connectors . . . . . . . . . . . . . . . . . . . . . . . 5 BNC female
Nominal level . . . . . . . . . . . . . . . . . . . . 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
Minimum / Maximum levels . . . 0.3 V to 1.45 Vp-p with no offset at unity gain
Impedance . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Horizontal frequency. . . . . . . . . . . . 15 kHz to 130 kHz
Vertical frequency . . . . . . . . . . . . . . . 30 Hz to 150 Hz

GenerAl

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 VDC, 0.8 A, external
NOTE: The TP R 15HD A receiver will not provide power to any twisted pair transmitter.
Rack mount . . . . . . . . . . . . . . . . . . . . . . Yes, with optional rack shelves (See optional accessories.)
Enclosure type . . . . . . . . . . . . . . . . . . . Metal
Enclosure dimensions . . . . . . . . . . 1.3" H x 6.8" W x 4.5" D (<1U high, <half rack wide)
(3.3 cm H x 17.3 cm W x 11.4 cm D) (Depth excludes connectors.)
Product / Shipping weight . . . . . 0.9 lbs (0.4 kg) / 3 lbs (2 kg)
Front
INP UT
BUF
MO NIT FER ED
OR LOC OUT
AL PUT
SHI H.
FT Rear
VGA
INT ERF RGB
ACE 109
W /AD xi
SP PUT
OUT
0.5A
40V LEVE L/
100-2 PEAK 50%
0.8V
UNIT Y
0.9V 100%
Hz
50/60
Extron
RGB 109xi
Interface
PC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
usa east usa east
+1.919.863.1794 / +800.633.9876 +1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX +1.919.863.1797 FAX
T P - T w i s T e d P a i r s e r i e s
Extron
TP T BNC DA4
Twisted Pair
PO
W ER
15V
.5A Distribution Ampli er/
DC
R
G
B
INP
UT Transmitter
S HV H/
V
OU
TP UT
1 OU
TP
UT
2 OU
TP
UT 3
OU
TP UT
4
Extron
4 Outputs
ER DC TP R BNC A
POW .5A
15V
O B R
AU DI L
A
R
UT
B OU TP
RG
PU T
B IN
RG
Extron
Enhanced Skew-Free
™
A/V UTP C able
(up to 1,000')
Projector
PArT #
60-349-02
PAGe PArT #
page 102 60-351-02
page 103 60-350-03
page 101 60-450-01
page 66 60-582-01
page 66 70-259-11
page 66 70-285-11
PAGe PArT #
page 694 70-057-01
PAGe PArT #
page 819 60-190-01
page 817 70-123-01
page 817 70-077-02
. . .
