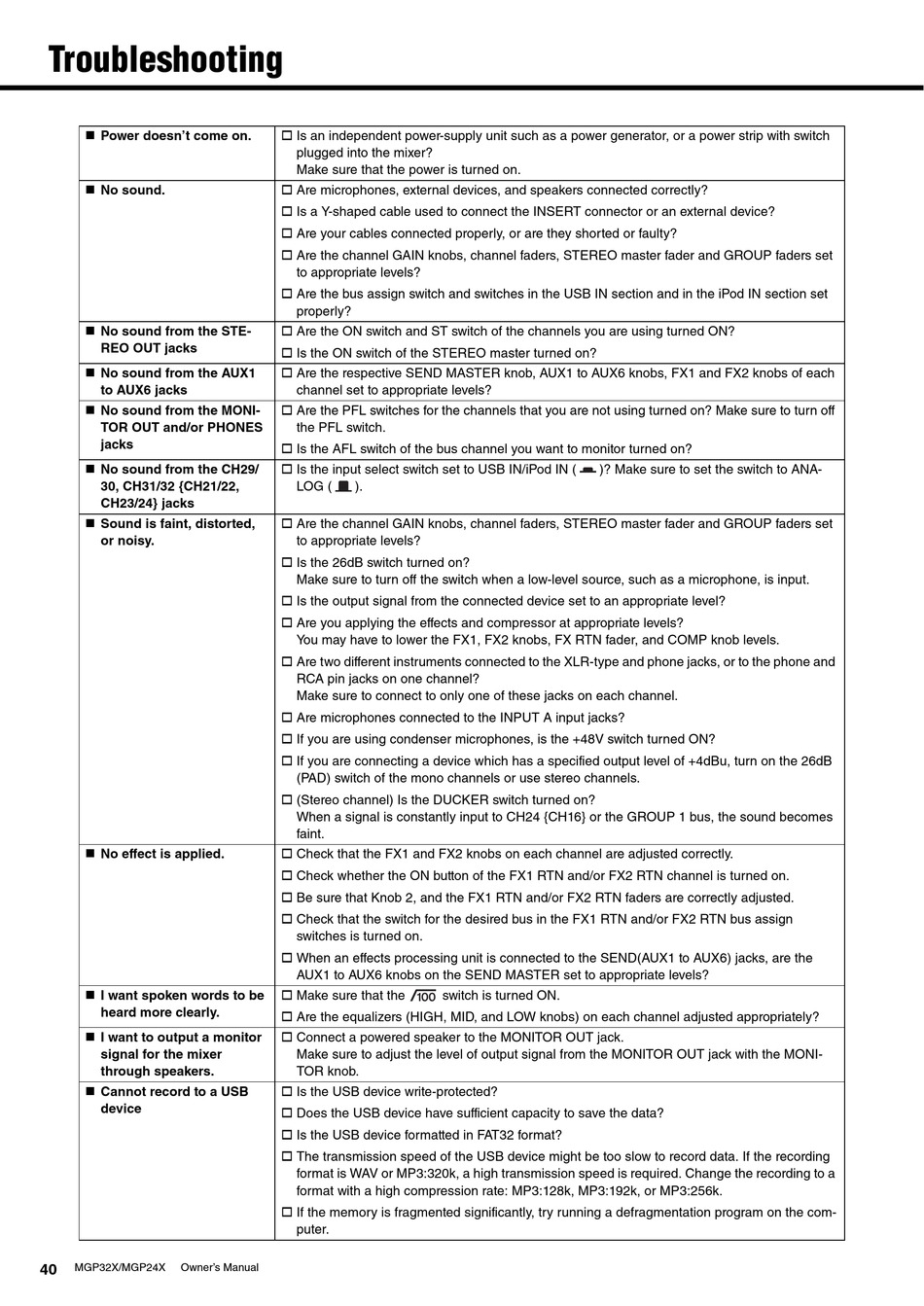

Troubleshooting


Power doesn't come on.

No sound.

No sound from the STE-
REO OUT jacks

No sound from the AUX1
to AUX6 jacks

No sound from the MONI-
TOR OUT and/or PHONES
jacks

No sound from the CH29/
30, CH31/32 {CH21/22,
CH23/24} jacks

Sound is faint, distorted,
or noisy.

No effect is applied.

I want spoken words to be
heard more clearly.

I want to output a monitor
signal for the mixer
through speakers.

Cannot record to a USB
device
40
MGP32X/MGP24X Owner's Manual
 Is an independent power-supply unit such as a power generator, or a power strip with switch
plugged into the mixer?
Make sure that the power is turned on.
 Are microphones, external devices, and speakers connected correctly?
 Is a Y-shaped cable used to connect the INSERT connector or an external device?
 Are your cables connected properly, or are they shorted or faulty?
 Are the channel GAIN knobs, channel faders, STEREO master fader and GROUP faders set
to appropriate levels?
 Are the bus assign switch and switches in the USB IN section and in the iPod IN section set
properly?
 Are the ON switch and ST switch of the channels you are using turned ON?
 Is the ON switch of the STEREO master turned on?
 Are the respective SEND MASTER knob, AUX1 to AUX6 knobs, FX1 and FX2 knobs of each
channel set to appropriate levels?
 Are the PFL switches for the channels that you are not using turned on? Make sure to turn off
the PFL switch.
 Is the AFL switch of the bus channel you want to monitor turned on?
 Is the input select switch set to USB IN/iPod IN (
LOG ( ).
 Are the channel GAIN knobs, channel faders, STEREO master fader and GROUP faders set
to appropriate levels?
 Is the 26dB switch turned on?
Make sure to turn off the switch when a low-level source, such as a microphone, is input.
 Is the output signal from the connected device set to an appropriate level?
 Are you applying the effects and compressor at appropriate levels?
You may have to lower the FX1, FX2 knobs, FX RTN fader, and COMP knob levels.
 Are two different instruments connected to the XLR-type and phone jacks, or to the phone and
RCA pin jacks on one channel?
Make sure to connect to only one of these jacks on each channel.
 Are microphones connected to the INPUT A input jacks?
 If you are using condenser microphones, is the +48V switch turned ON?
 If you are connecting a device which has a specified output level of +4dBu, turn on the 26dB
(PAD) switch of the mono channels or use stereo channels.
 (Stereo channel) Is the DUCKER switch turned on?
When a signal is constantly input to CH24 {CH16} or the GROUP 1 bus, the sound becomes
faint.
 Check that the FX1 and FX2 knobs on each channel are adjusted correctly.
 Check whether the ON button of the FX1 RTN and/or FX2 RTN channel is turned on.
 Be sure that Knob 2, and the FX1 RTN and/or FX2 RTN faders are correctly adjusted.
 Check that the switch for the desired bus in the FX1 RTN and/or FX2 RTN bus assign
switches is turned on.
 When an effects processing unit is connected to the SEND(AUX1 to AUX6) jacks, are the
AUX1 to AUX6 knobs on the SEND MASTER set to appropriate levels?
 Make sure that the
switch is turned ON.
 Are the equalizers (HIGH, MID, and LOW knobs) on each channel adjusted appropriately?
 Connect a powered speaker to the MONITOR OUT jack.
Make sure to adjust the level of output signal from the MONITOR OUT jack with the MONI-
TOR knob.
 Is the USB device write-protected?
 Does the USB device have sufficient capacity to save the data?
 Is the USB device formatted in FAT32 format?
 The transmission speed of the USB device might be too slow to record data. If the recording
format is WAV or MP3:320k, a high transmission speed is required. Change the recording to a
format with a high compression rate: MP3:128k, MP3:192k, or MP3:256k.
 If the memory is fragmented significantly, try running a defragmentation program on the com-
puter.
)? Make sure to set the switch to ANA-
