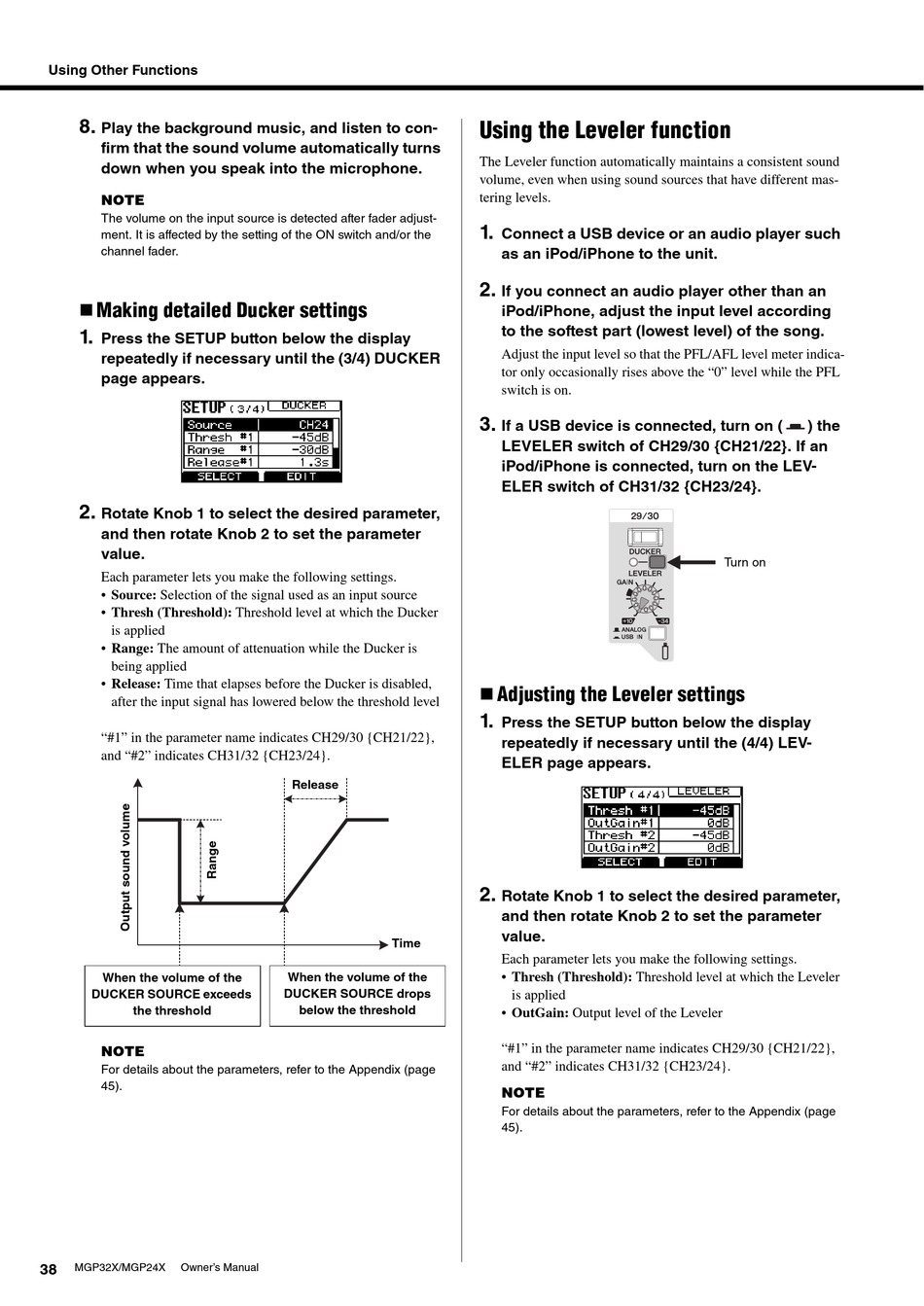

Using The Leveler Function - Yamaha MGP32X Owner's Manual

Using Other Functions
8.
Play the background music, and listen to con-
firm that the sound volume automatically turns
down when you speak into the microphone.
NOTE
The volume on the input source is detected after fader adjust-
ment. It is affected by the setting of the ON switch and/or the
channel fader.
 Making detailed Ducker settings
1.
Press the SETUP button below the display
repeatedly if necessary until the (3/4) DUCKER
page appears.
2.
Rotate Knob 1 to select the desired parameter,
and then rotate Knob 2 to set the parameter
value.
Each parameter lets you make the following settings.
• Source: Selection of the signal used as an input source
• Thresh (Threshold): Threshold level at which the Ducker
is applied
• Range: The amount of attenuation while the Ducker is
being applied
• Release: Time that elapses before the Ducker is disabled,
after the input signal has lowered below the threshold level
"#1" in the parameter name indicates CH29/30 {CH21/22},
and "#2" indicates CH31/32 {CH23/24}.
When the volume of the
DUCKER SOURCE exceeds
the threshold
NOTE
For details about the parameters, refer to the Appendix (page
45).
38
MGP32X/MGP24X Owner's Manual
Release
Time
When the volume of the
DUCKER SOURCE drops
below the threshold

Using the Leveler function

The Leveler function automatically maintains a consistent sound
volume, even when using sound sources that have different mas-
tering levels.
1.
Connect a USB device or an audio player such
as an iPod/iPhone to the unit.
2.
If you connect an audio player other than an
iPod/iPhone, adjust the input level according
to the softest part (lowest level) of the song.
Adjust the input level so that the PFL/AFL level meter indica-
tor only occasionally rises above the "0" level while the PFL
switch is on.
3.
If a USB device is connected, turn on (
LEVELER switch of CH29/30 {CH21/22}. If an
iPod/iPhone is connected, turn on the LEV-
ELER switch of CH31/32 {CH23/24}.
 Adjusting the Leveler settings
1.
Press the SETUP button below the display
repeatedly if necessary until the (4/4) LEV-
ELER page appears.
2.
Rotate Knob 1 to select the desired parameter,
and then rotate Knob 2 to set the parameter
value.
Each parameter lets you make the following settings.
• Thresh (Threshold): Threshold level at which the Leveler
is applied
• OutGain: Output level of the Leveler
"#1" in the parameter name indicates CH29/30 {CH21/22},
and "#2" indicates CH31/32 {CH23/24}.
NOTE
For details about the parameters, refer to the Appendix (page
45).
) the
Turn on
