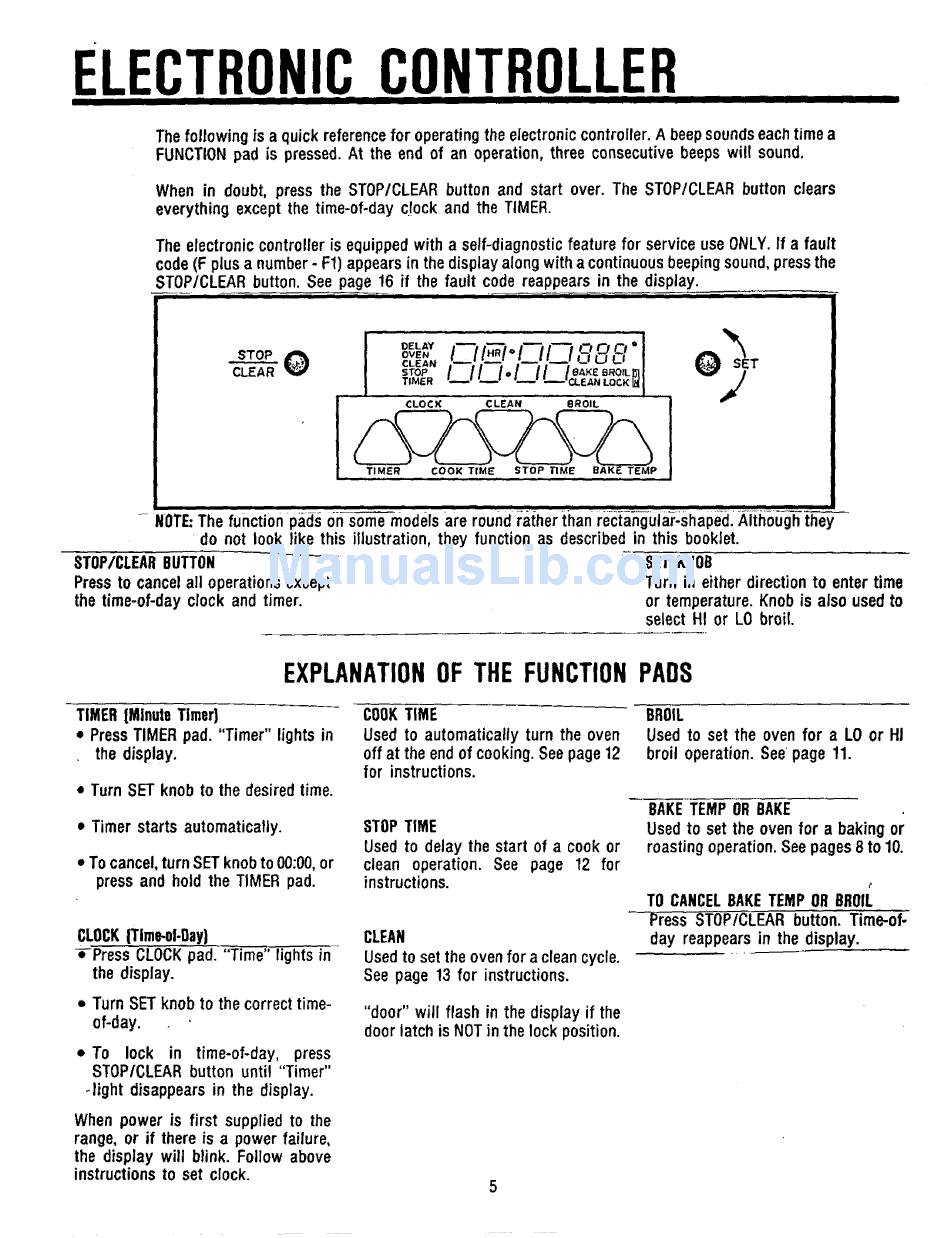

ELECTRONIC CONTROLLER
[ I II I I[I I II II I
The following is a quick reference for operating the electronic controller. A beep sounds each time a
FUNCTION pad is pressed. At the end of an operation, three consecutive beeps will sound.
When in doubt, press the STOP/CLEAR button and start over. The STOP/CLEAR button clears
everything except the time-of-day c.fock and the TIMER.
The electronic controller is equipped with a self-diagnostic feature for service use ONLY. if a fault
code (F plus a number - F1) appears in the display along with a continuous beeping sound, press the
STOPtCLEAR button. See page 16 if the fault code reappears in the display.
II I I i i UUlliiii _-- " IIIIIIIIII II I iiiiiiiiiu ' Ii . ... -'_ ........................
szoP ov . IT/ / "
CLEAR SI"OP"'""
!'--I t---I . I--'II'--I"AK "RO'L I "r
TIMER .... CLEAN LOCK I/,i {
CLO¢ K C LEAN eROIL
TIMER COOK TIME STOP TIME BAK
I IIIIIIIIIIIII C IIIII IIIIIIIIIII • IIIIIIIIII II...... IIIIIIIIIIIIIIL __1 IIIIIIIIIIIIIL I ...g _._ = r _
.... NOTE:The fun tion pads on some models are round rather than rectangular-shaped. Although they
do not look like this illustration, they function as described in this booklet.
STOP/CLEARBUTTON SET KNOB
Press to cancel a]t operations except Turn in either direction to enter time
the time-of-day clock and timer, or temperature. Knob is also used to
select HI or LO broil.
EXPLANATION OF THEFUNCTION PADS
TIMER IMinute Timer]
• Press TIMER pad. "Timer" lights in
the display,
• Turn SET knob to the desired time.
• Timer starts automatically.
• To cancel, turn SET knob to 00:00, or
press and hold the TIMER pad.
CLOCKITime-el-Day)
-_-Press CLOCK pad. "Time" lights in
the display.
• Turn SET knob to the correct time-
of-day.
• To lock in time-of-day, press
STOP/CLEAR button until "Timer"
-light disappears in the display.
When power is first supplied to the
range, or if there is a power failure,
the display wilt blink. Follow above
instructions to set clock.
COOK TIME
Used to automatically turn the oven
off at the end of cooking.See page12
for instructions.
STOPTIME
Used to delay the start of a cook or
clean operation. See page 12 for
instructions.
CLEAN
Usedto set the ovenfor a cleancycle.
See page 13 for instructions.
"door" will flash in the display if the
door latch is NOT in the lock position.
5
BROIL
Used to set the oven for a LO or Hi
broil operation. See page 11.
BAKETEMP OR BAKE
Used to set the oven for a baking or
roasting operation. See pages 8 to 10.
TO CANCELBAKETEMP OR BROIL
Press STOP/CLEAR button. Time-of-
day reappears in the display.
