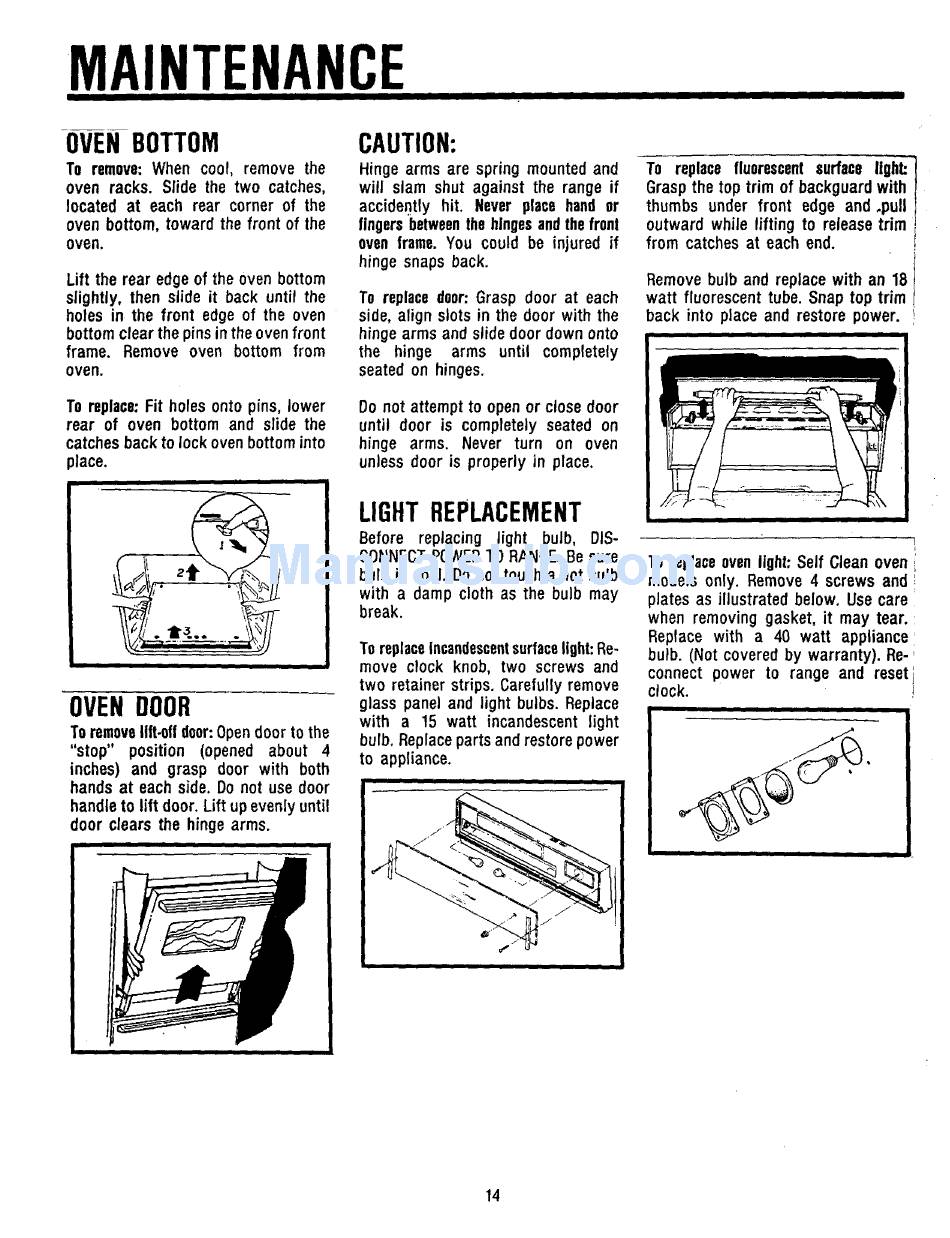

MAINTENANCE
IIIIIIIII
IIII
Illl i
........................................
OVENBOTTOM
To remove: When coot, remove the
oven racks.
Slide the two catches,
located at each rear corner of the
oven bottom, toward the front of the
oven.
Lift the rear edge of the oven bottom
slightly, then slide it back until the
holes in the front edge of the oven
bottom clear the pins in the oven front
frame.
Remove oven bottom
from
oven.
To replace: Fit holes onto pins, lower
rear of oven bottom
and slide the
catches back to lock oven bottom into
place.
m=
•
i
mmll
i
,.
OVEN DOOR
To removelift-off door:Open door to the
"stop"
position
(opened about
4
inches) and grasp door with both
hands at each side. Do not use door
handle to lift door. Lift up evenly until
door clears the hinge arms.
...........
iiiiiiiiiiii
iii
CAUTION:
Hinge arms are spring mounted and
wilt slam shut against the range if
accidently
hit. Never place hand or
fingers between the hinges and the front
oven frame. You could be injured Jf
hinge snaps back.
To replace door: Grasp door at each
side, align slots in the door with the
hinge arms and slide door down onto
the
hinge
arms
until completely
seated on hinges.
Do not attemptto open or close door
until door is completely seated on
hinge arms. Never turn on oven
unless door is properly in place.
LIGHTREPLACEMENT
Before
replacing
light
bulb,
DIS-
CONNECT POWER TO RANGE. Be sure
bulb is cool. Do not touch a hot bulb
with a damp cloth as the bulb may
break.
To replaceincandescent surfacelight: Re-
move clock knob, two screws and
two retainer strips. Carefully remove
glass panel and light bulbs. Replace
with
a 15 watt
incandescent
light
bulb. Replace parts and restore power
to appliance.
To replace fluorescent surface ught:-
Grasp the top trim of backguard with
thumbs under front
edge and .pull
outward while lifting to release trim
from catches at each end.
Remove bulb and replacewith an 18
watt fluorescent tube. Snap top trim
back into place and restore power.
To replace ovenlight:Self Clean oven i
models only. Remove 4 screws and!
plates as illustrated below. Usecare
when removinggasket, it may tear.
Replace with a 40 watt appliance
bulb. (Not covered by warranty). Re-
connect power to range and reset
clock.
i
iiiiii
]
ii]1_]
ii iiii
ii
iiiiii
14
