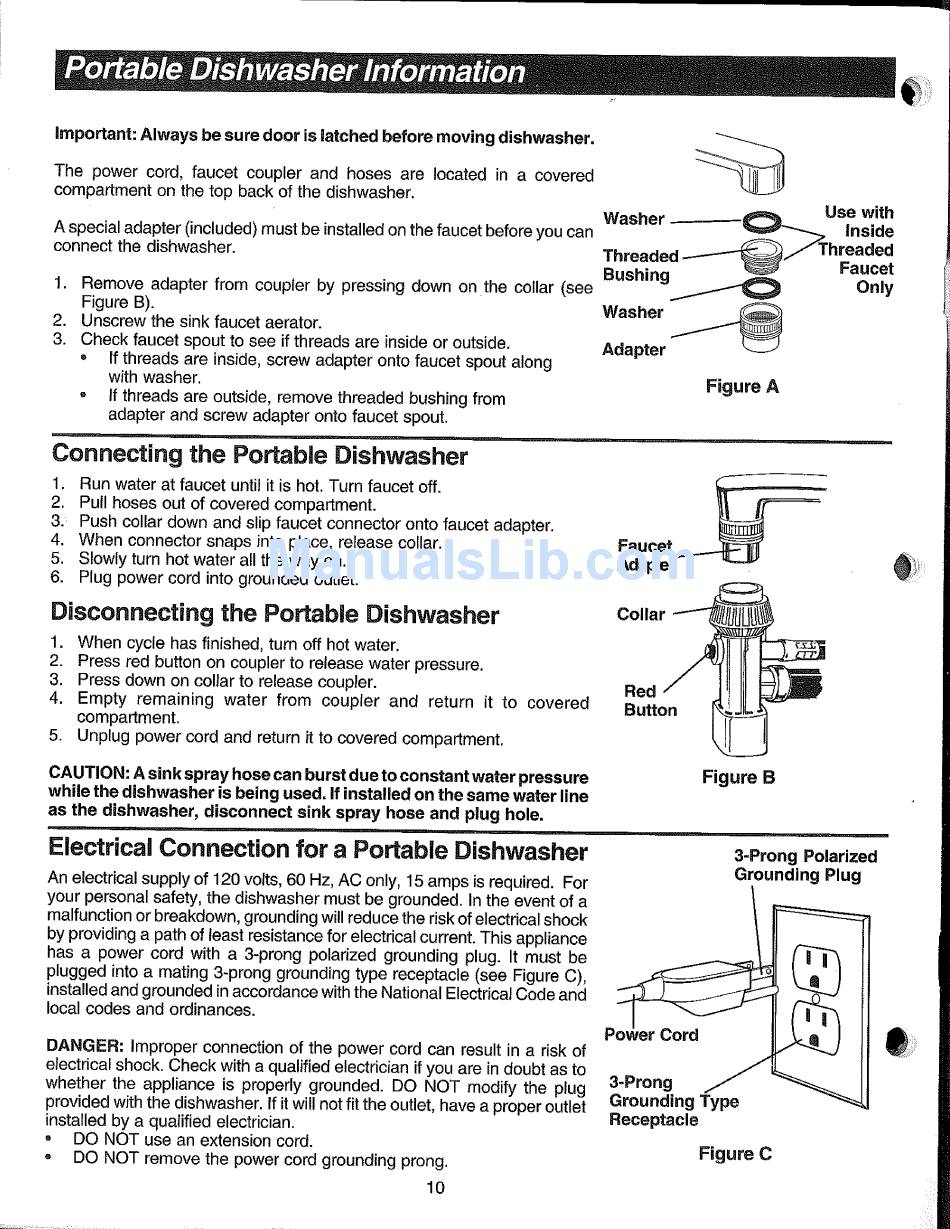

important: Always be sure door is latched before moving dishwasher.
The power cord, faucet coupler and hoses are located in a covered
compartment on the top back of the dishwasher.
A special adapter (included) must be installed on the faucet before you can
connect the dishwasher.
1. Remove adapter from coupler by pressing down on the collar (see
Figure B). Washer
2. Unscrew the sink faucet aerator.
3. Check faucet spout to see if threads are inside or outside. Adapter
• If threads are inside, screw adapter onto faucet spout along
with washer. Figure A
- tf threads are outside, remove threaded bushing from
adapter and screw adapter onto faucet spout.
Only
Connecting the Portable Dishwasher
1. Run water at faucet until it is hot. Turn faucet off.
2. Pull hoses out of covered compartment.
3. Push collar down and slip faucet connector onto faucet adapter.
4. When connector snaps into place, release collar.
5. Slowly turn hot water all the way on.
6. Plug power cord into grounded outlet.
Faucet
Adapter
Disconnecting the Portable Dishwasher
1. When cycle has finished, turn off hot water.
2. Press red button on coupler to release water pressure.
3. Press down on collar to release coupler.
4. Empty remaining water from coupler and return it to
compartment.
5. Unplug power cord and return it to covered compartment.
Collar
Red
covered Button
CAUTION: A sink spray hose can burst due to constant water pressure Fig ure B
while the dishwasher is being used. if installed on the same water line
as the dishwasher, disconnect sink spray hose and plug hole.
Electrical Connection for a Portable Dishwasher
3-Prong
Polarized
An electrical supply of 120 volts, 60 Hz, AC only, 15 amps is required. For Grounding Plug
your personal safety, the dishwasher must be grounded. In the event of a
malfunction or breakdown, grounding will reduce the risk of electrical shock
by providing a path of least resistance for electrical current. This appliance
has a power cord with a 3-prong polarized grounding plug. It must be
plugged into a mating 3-prong grounding type receptacle (see Figure C),
installed and grounded in accordance with the National Electrical Code and
local codes and ordinances.
DANGER: Improper connection of the power cord can result in a risk of
electrical shock. Check with a qualified electrician if you are in doubt as to
whether the appliance is properly grounded. DO NOT modify the plug
provided with the dishwasher. If it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
• DO NOT use an extension cord.
® DO NOT remove the power cord grounding prong.
Cord
3-Prong
Grounding Type
Receptacle
Figure C
