Kenmore 15801 Use And Care Manual

Ultra wash dishwasher.
Hide thumbs

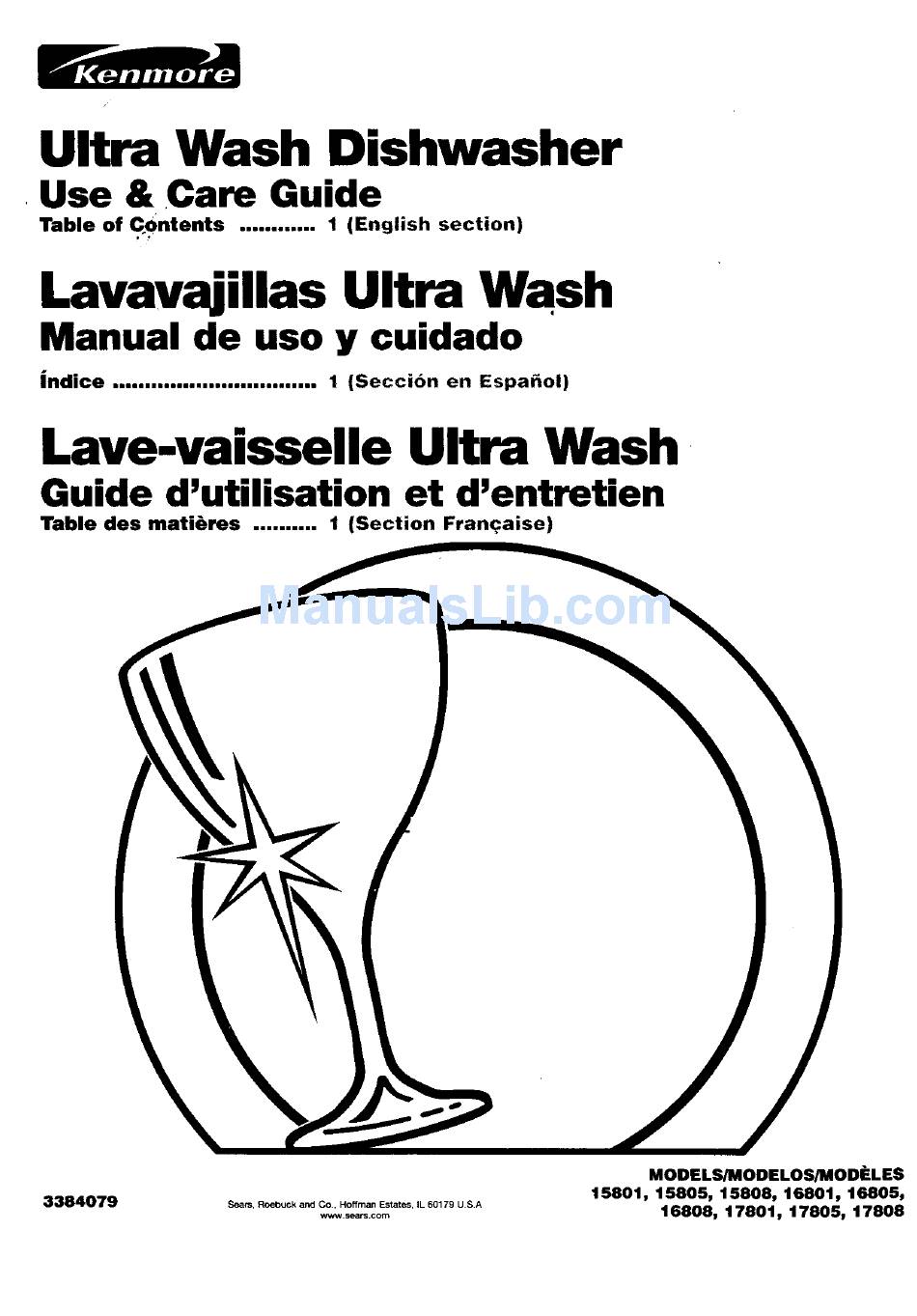

Ultra Wash Dishwasher
Use & Care Guide
of €ontents
1 (English
Ultra Wash
de uso y cuidado
1 (Seccion
Ultra Wash
Guide d'utilisation
et d'entretien
I (Section
Sears, Roebuck
and Co., Hoffman Estates, IL 60179 U.S.A


   Summary of Contents for Kenmore 15801

  • Page 1

    Guide d'utilisation Table mati_)res 3384079 Sears, Roebuck 1 (English section) Ultra Wash 1 (Seccion Espa_ol) Ultra Wash et d'entretien I (Section Franqaise) and Co., Hoffman Estates, IL 60179 U.S.A MODELS/MODELOS/MODELES 15801, 15805, 15808, 16801, 16808, 17801, 17805, 16805, 17808...

  • Page 2: Table Of Contents

    LEAKS IN THE TUB AND INNER DOOR PANEL For the life of the dishwasher if a leak should occur as a result of failure of the polypropylene tub or inner door panel due to cracking, chipping or peeling, Sears will replace, free of charge, the tub or inner door panel.

  • Page 3

    • Read all instructions before using the dishwasher. • Use the dishwasher only for its intended function. • Use only detergents or rinse agents recommended for use in a dishwasher and keep them out of the reach of children. -,When loading items to be washed: 1) Locate sharp items so that they are not likely to damage the door seal;...

  • Page 4: Parts And Features

    Lower spray arm _) Water inlet opening [in tub wall] Rack bumper Heating element Additional feature(s) your dishwasher NO FLIP* Clip(a) (pg. 8) Extra Capacity fold-down shelf (pg. 8) Fold-Down dividers (pg. 8) _) Upper level spray _) ULTRAFLOW* water feed tube _) Silverware basket (p.

  • Page 5

    WASH System works: 1. When you load the dishwasher, all you need to do is remove bones, large chunks, or burned-on food. Any remaining food will be ground up and disposed. 2. Hot water fills the dishwasher to a level near the bottom of the overfill protector.

  • Page 6

    Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

  • Page 7: The Ultra Wash* Soil Removal System

    See pages 10 and 11. 4. Push door firmly closed []. The door latches automati- cally. Run hot water at the sink nearest your dishwasher until water is hot []. Turn off water. See page 11. 5. Press the desired Cycle and Options buttons [].

  • Page 8

    • Load correctly for best washing results. Incorrect loading may cause poor washing and the need to rewash all or part of the load. • Wash full loads. Running a half-filled dishwasher uses the same amount of electricity and hot water as a fully loaded machine.

  • Page 9

    Items with cooked-on or dried-on food should be loaded in the bottom reck, with soiled surfaces facing inward to the spray. (See recommended loading patterns below.) NOTE: The features on your dishwasher reck may vary from the drawings below. 10 place setting 12 place setting •...

  • Page 10: Loading The Silverware Basket

    • Load dishes so they do not touch one another. NOTE: Keep sink drain plugs closed during dishwasher operation to prevent noise transfer through drains. tips...

  • Page 11

    7 to 12 grains per gallon NOTE: Fill amounts shown are for standard powdered detergent. Amounts may vary if you use liquid or concentrated powdered detergent. Follow instructions on the package when using liquid dishwasher detergent or concentrated powdered detergent.

  • Page 12

    3. Add rinse agent r_. Fill only to smallest opening in lower part of dispenser. Overfilling may cause rinse agent to leak out. This will not harm the dishwasher, but could cause oversudsing. 4. Clean up any spilled rinse agent with a damp cloth.

  • Page 13

    If the water is already hot enough, the cycle times will be as shown, WATER N EA11NG RINSING Dfl_tNG _OUFtS A '_," shows what each cycle includes. Main Wash Wash of water entering the dishwasher. LOCK ON " Water Cycle Usage Final ITime- Igallons[U.S.] Rinse Rinse (min.)

  • Page 14

    Water automatically heats to 135°F (57°C). tt Cycle time includes dry time and may be longer depending on the temperature of water entering the dishwasher, longer the cycle time. If the water is already hot enough, the cycle times will be as shown.

  • Page 15

    • Press Delay Hours a fourth time to cancel the option. • If you wish to put more dishes in the dishwasher while it is in delay mode, be sure to latch the door after you add them. • The amount of delay can be changed or...

  • Page 16

    Memory • To use last full cycle and options completed, press Start. • If you do not run dishwasher daily, close door to main- tain memory. • If power is off or door is open for an extended period of time, the Start button memory will default to Normal cycle with Heat Dry.

  • Page 17

    Moving or winterizing your Protect your dishwasher and home against water damage due to freezing water lines. If your dishwasher is left in a seasonal dwelling or could be exposed to near freezing temperatures, have a qualified person do the following: 1.

  • Page 18

    Tips for washing If you have any doubts about washing a particular item, check with the manufacturer to see if it is dishwasher safe. MATERIAL Aluminum Bottles and Cans Cast Iron China/Stoneware Crystal Gold Glass Hollow-Handle Knives Pewter Disposable Plastics...

  • Page 19: Using The Detergent Dispenser

    Checkto see if shut-off valve (if installed) is turned on. Check to see if the overfill protector moves up and down freely. Press down to release. It is normal for the dishwasher to run longer while heating water. Refer to the '_Nater temperature tips" section, page 11.

  • Page 20

    Keep the dispenser full with a rinse agent at all times. Use the Water Heat option. If needed, turn home water heater up to ensure water entering dishwasher is 120°F (49°C) minimum. Refer to the "Water temperature tips" section page 11.

  • Page 21: Using The Rinse Agent Dispenser, Cycles, Options, Guide

    Aluminum items should be loaded so that they will not rub against dishes during washing. Throwaway aluminum items should not be washed in the dishwasher because they may break down and cause marking. Aluminum markings can be removed by using a mild abrasive cleanser.

  • Page 22

    We Service =We Service What We Sell" is our assurance that you can depend on Sears for service. Your dishwasher has added value when you consider that Sears has service units nationwide, staffed with professional technicians specifically trained on Sears appliances and having the parts, tools, and equipment to ensure that we meet our pledge to you ... "We Service What We Sell."...

  • Page 23


  • Page 24


  • Page 25


  • Page 26

    In U.S.A. or Canada for in-home major brand repair service: Call 24 hours a day, 7 days a week 1-800-4-MY-HOM E°M (1-800-469-4663) Para pedir servicio de reparacibn a domicilio- 1-800-676-5811 Au Canada pour tout le service - 1-877-LE-FOYER _M(1-877-533-6937) For the repair or replacement parts you need: Call 6 aom.
