WIRING DIAGRAMS

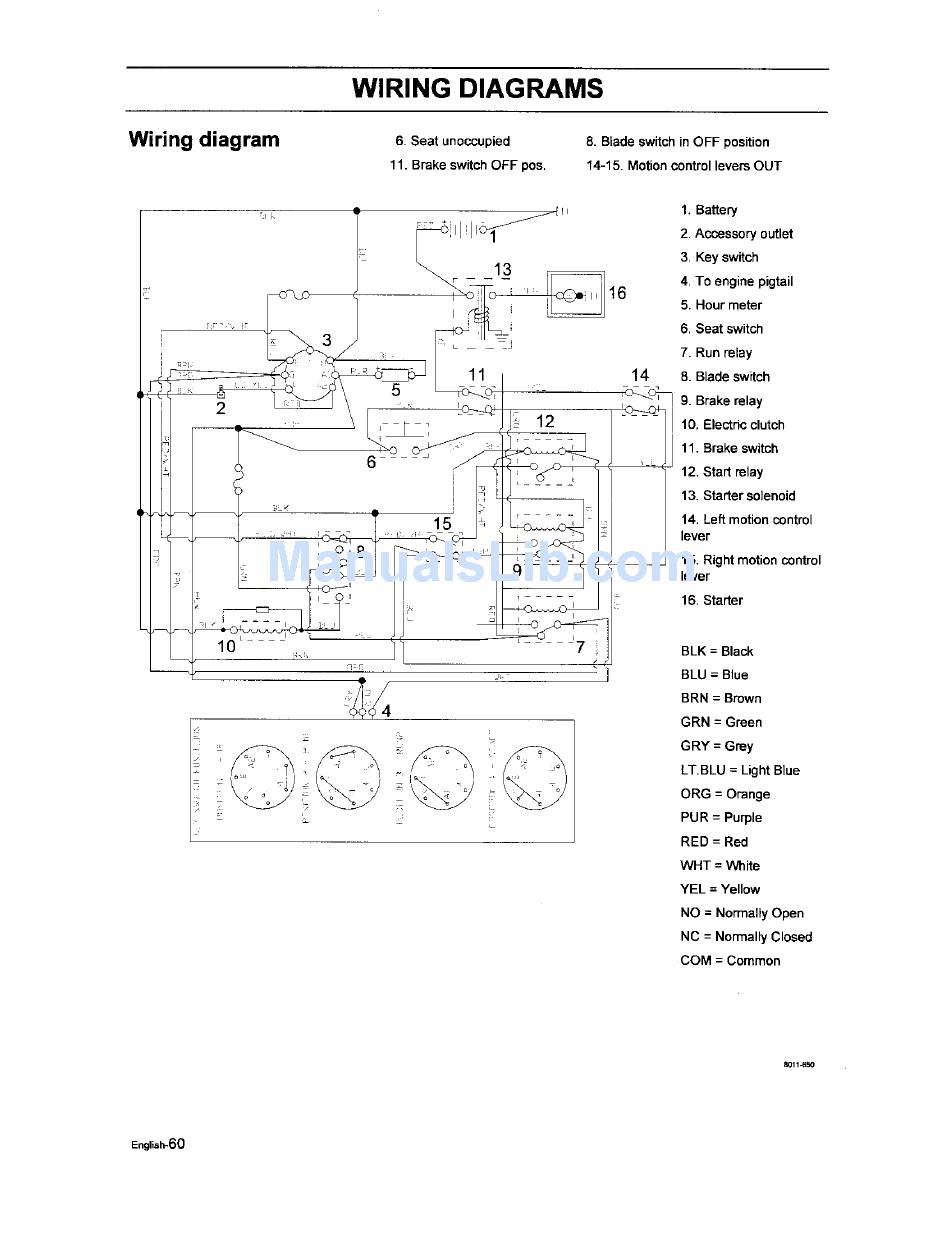

Wiring diagram
6. Seat unoccupied
11. Brake switch OFF pos.
8. Blade switch in OFF position
14-15. Motioncontrol levers OUT
1. Battery
2. Accessory outlet
3. Key switch
4. To engine pigtail
5. Hour meter
6. Seat switch
2
14
7. Run relay
8. Blade switch
9. Brake relay
10. Electric clutch
11. Brake switch
12. Start relay
13. Starter solenoid
14. Left motion control
lever
15. Right motion control
lever
16. Starter
BLK = Black
BLU = Blue
BRN = Brown
GRN = Green
GRY = Grey
LT.BLU = Light Blue
ORG = Orange
PUR = Purple
RED = Red
WHT = White
YEL = Yellow
NO = NormallyOpen
NC = Normally Closed
COM = Common
8011_50
English-60
