1.11.9 Front Panel Connectors

The front panel connector includes headers for these I/O connections:
Speaker
Reset switch
Power LED
Hard drive activity LED
Infrared (IrDA) port
Sleep switch
Power switch
27
1.11.9.1

Front Panel I/O Connectors

Pin Signal Name
1 SW_ON#
2 Ground
3 SLEEP
4 SLEEP_PU (pullup)
5 No connect
6 +5 V
7 Key
8 IrRX
9 Ground
10 IrTX
11 CONIR (Consumer IR)
12 No connect
24 22 18
SPKR RST PWR LED HD LED

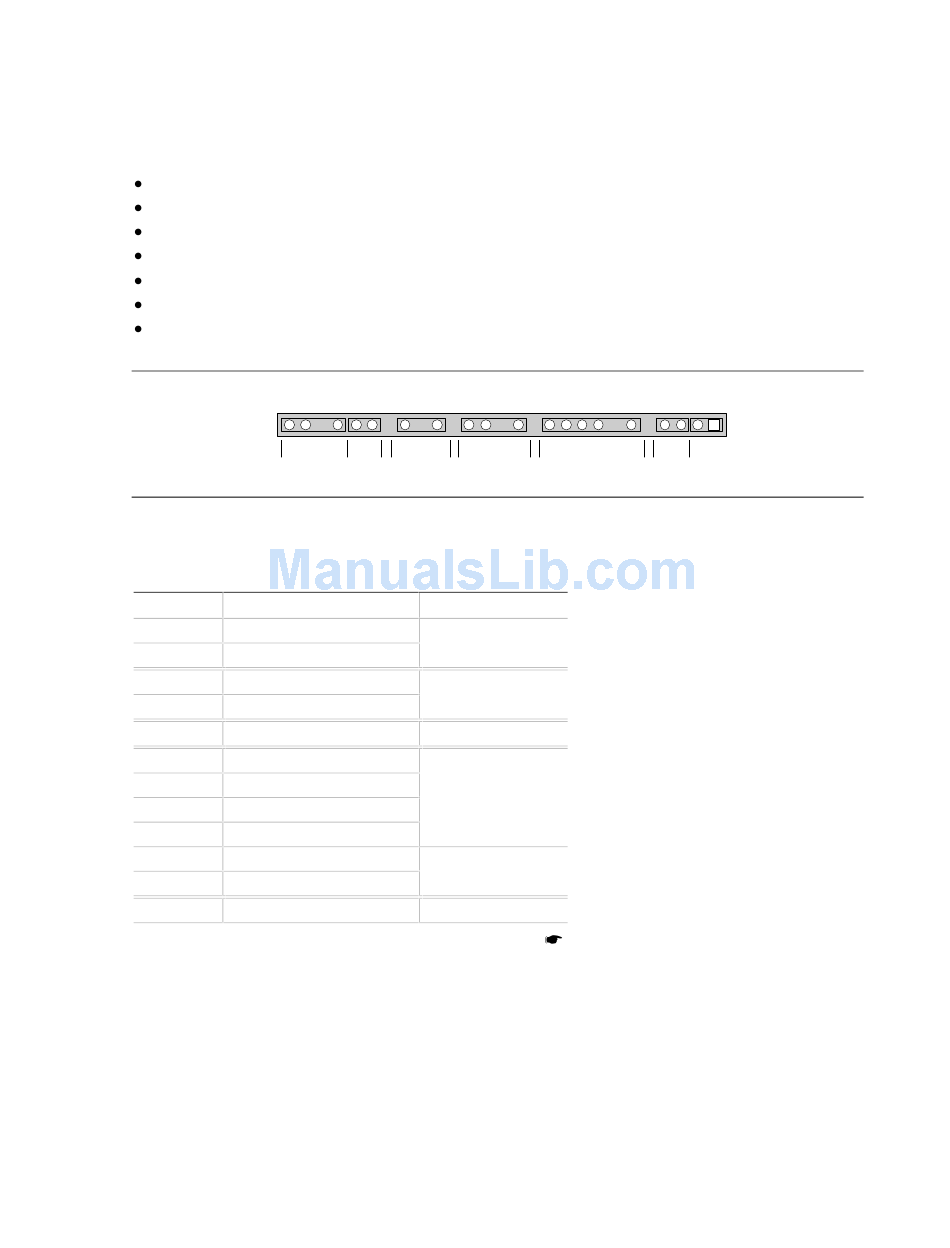

Figure 5. Front Panel I/O Connectors
Connector
Power On
Sleep/Resume
none
IrDA
none
continued
Motherboard Description
J10H1
13 6
INFRARED SLP
1
PWR ON
OM04550
25
