1.2 Motherboard Manufacturing Options

Support for USB
Audio Option
CS4236 audio codec
CD-ROM connector
Wavetable upgrade connector
Telephony connector
MIDI/game port/audio jacks
Management Extension Hardware ASIC

1.3 Form Factor

The motherboard is designed to fit into a standard ATX form factor chassis. Figure 2 illustrates the
mechanical form factor for the motherboard. Location of the I/O connectors and mounting holes is
in strict compliance with the ATX specification (refer to Section 5.1).
9.60
0.0
9.20
3.10
0.25
0.0
0.65 3.75

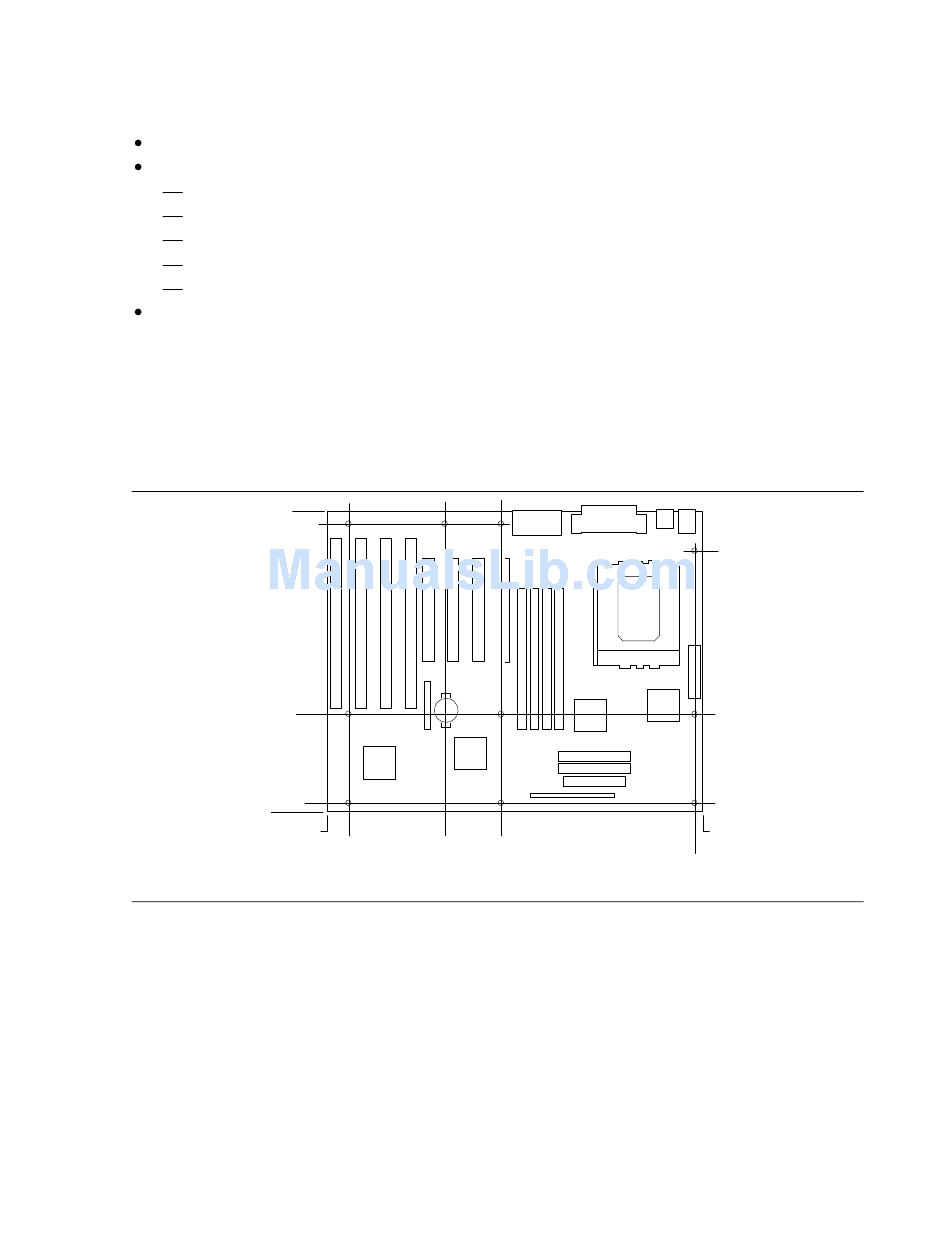

Figure 2. Motherboard Dimensions
5.55
Motherboard Description
8.25
12.00
11.75
OM05522
