Oven Door Parts - KitchenAid KEBS207SBL02 Parts List

30" built−in electric double oven thermal convection
Hide thumbs

1
2
3
4
5
6
7

Advertisement

Illus.
Part
No.
No.
DESCRIPTION
1
8303737BL Door Liner
2 W10174285 Hinge, Door (2)
3
3196183 Screw
4
8304581BL Vent, Door Top
5
Bracket, Door
8304377 Right
8304378 Left
6
Cover, Door Hinge
W10137043 Right
W10137044 Left
7
8303731 Glass, Inner

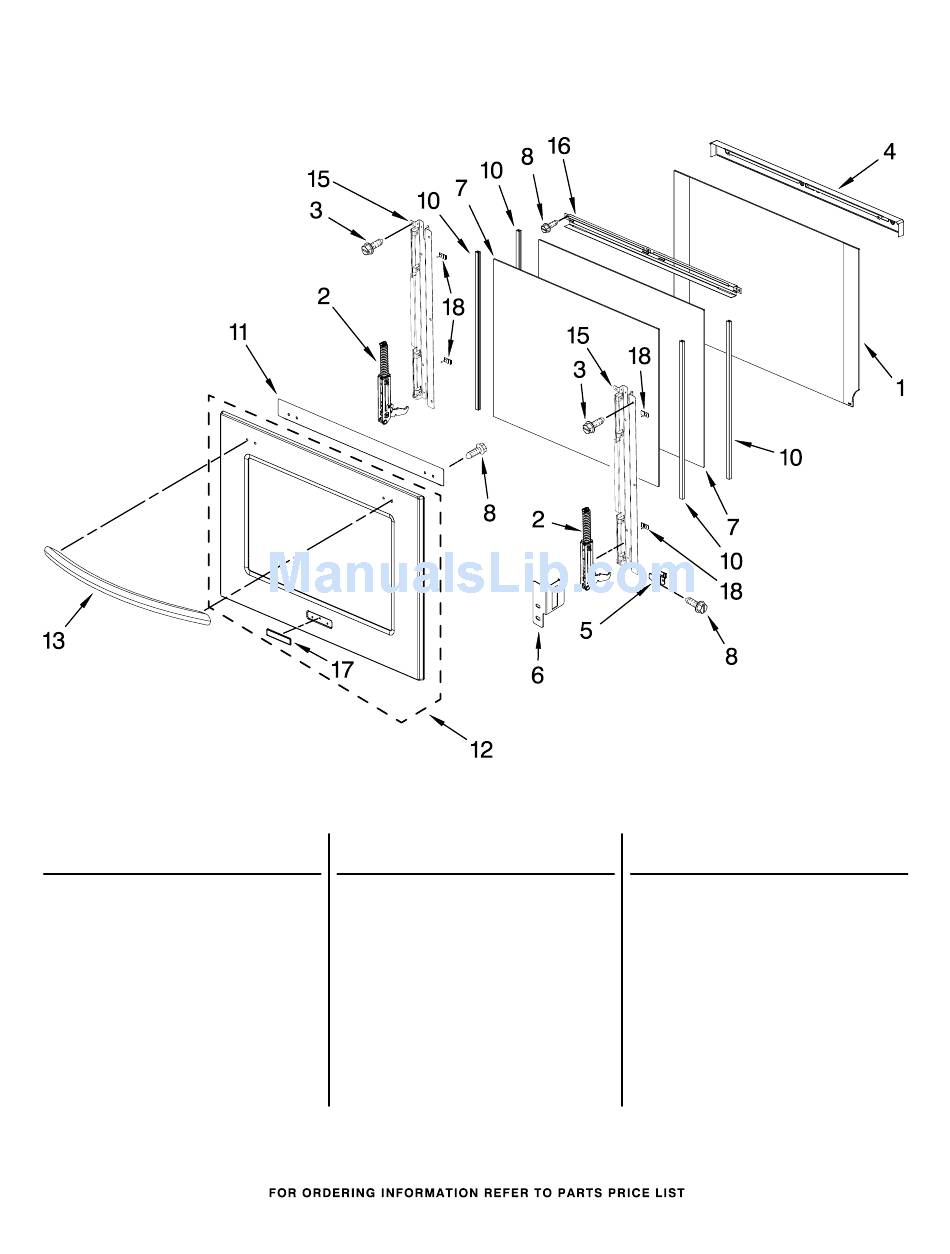

OVEN DOOR PARTS

For Models:KEBS207SBL02, KEBS207SWH02, KEBS207SSS02
(Black)
Illus.
Part
No.
No.
8
4449743 Screw
10
8304523 Seal
11
8304360BL Bracket, Handle
12
8303995 White
8303993 Black
8303991 Stainless
8303996 White
8303994 Black
8303992 Stainless
(White)
(Stainless)
Illus.
DESCRIPTION
No.
13
Door Glass, Assy
Lower Includes #17
15
16
17
Door Glass, Assy
Upper No Nameplate
18
4
Part
No.
DESCRIPTION
Door Handle
8303774WH White
8303774BL Black
8303774SS Stainless
8303745BL Frame−Door Side(2)
8303746 Door, Top Bracket
Badge, Lower Door
8304603BL Black
8304603WH White
8304603SS Stainless
8304522 Bumper, Glass
W10207222
