Oven Door Parts - KitchenAid KEBS208DBL11 Parts List

30" built−in electric double oven thermal convection self−clean
Hide thumbs

Advertisement

For Models: KEBS208DBL11, KEBS208DWH11, KEBS208DBS11, KEBS208DSS11
Illus.
Part
No.
No.
DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1
4451719 Door Liner
2
Hinge, Door
4455525 White, Black &
Black Stainless
4455526 Stainless Steel
4449743 Screw
3
4449259 Glass, Inner
4
4451722 Insulation, Door

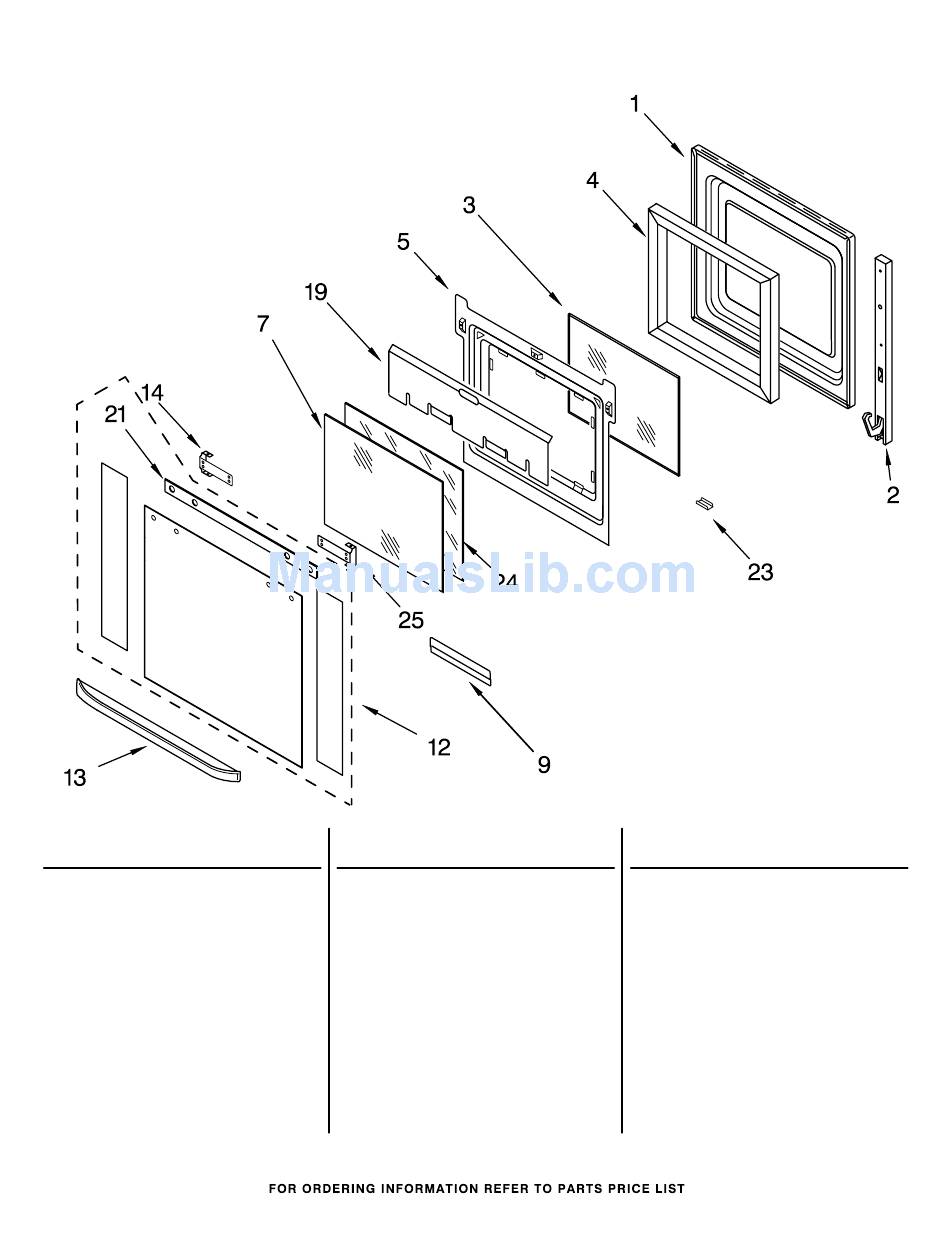

OVEN DOOR PARTS

(Black)
(White)
Illus.
Part
No.
No.
DESCRIPTION
5
4451671 Retainer, Glass
4449809 Screw
7
4449263 Glass, Inner
9
4451668 Retainer, Glass
4449809 Screw
12
Door Glass, Assy
4452074 Black Model
4452075 White Model
4452078 BS Model
4452316 Stainless Steel
13
Door Handle
4448414 Black & BS Models
4448415 White Model
4452088 Stainless Steel
4
(Black Stainless) (Stainless Steel)
Illus.
Part
No.
No.
14
4450813 Bracket, Handle
4451040 Screw
3400832 Screw
19
4450362 Shield, Heat
4449809 Screw
21
4451674 Seal, Door Top
23
4450863 Black & BS Models
4450864 White Model
3400832 Screw
24
4455257 Glass, Inner
25
4452959 Right Hand
4452960 Left Hand
DESCRIPTION
Retainer, Clip
Bracket, Handle
Stainles Steel
8185784
