Oven Door Parts - KitchenAid KEBK276SBL00 Parts List

27" built−in electric double oven
Hide thumbs

Advertisement

Illus.
Part
No.
No.
DESCRIPTION
1
8304522 Bumper, Door
2
8303990 Hinge, Door (2)
3
3196183 Screw
4
8304580BL Vent, Door Top
5
Bracket, Door
8304377 Right
8304378 Left
6
8303738BL Door Liner
7
8303732 Glass, Inner
8
4449743 Screw
10
8304523 Seal

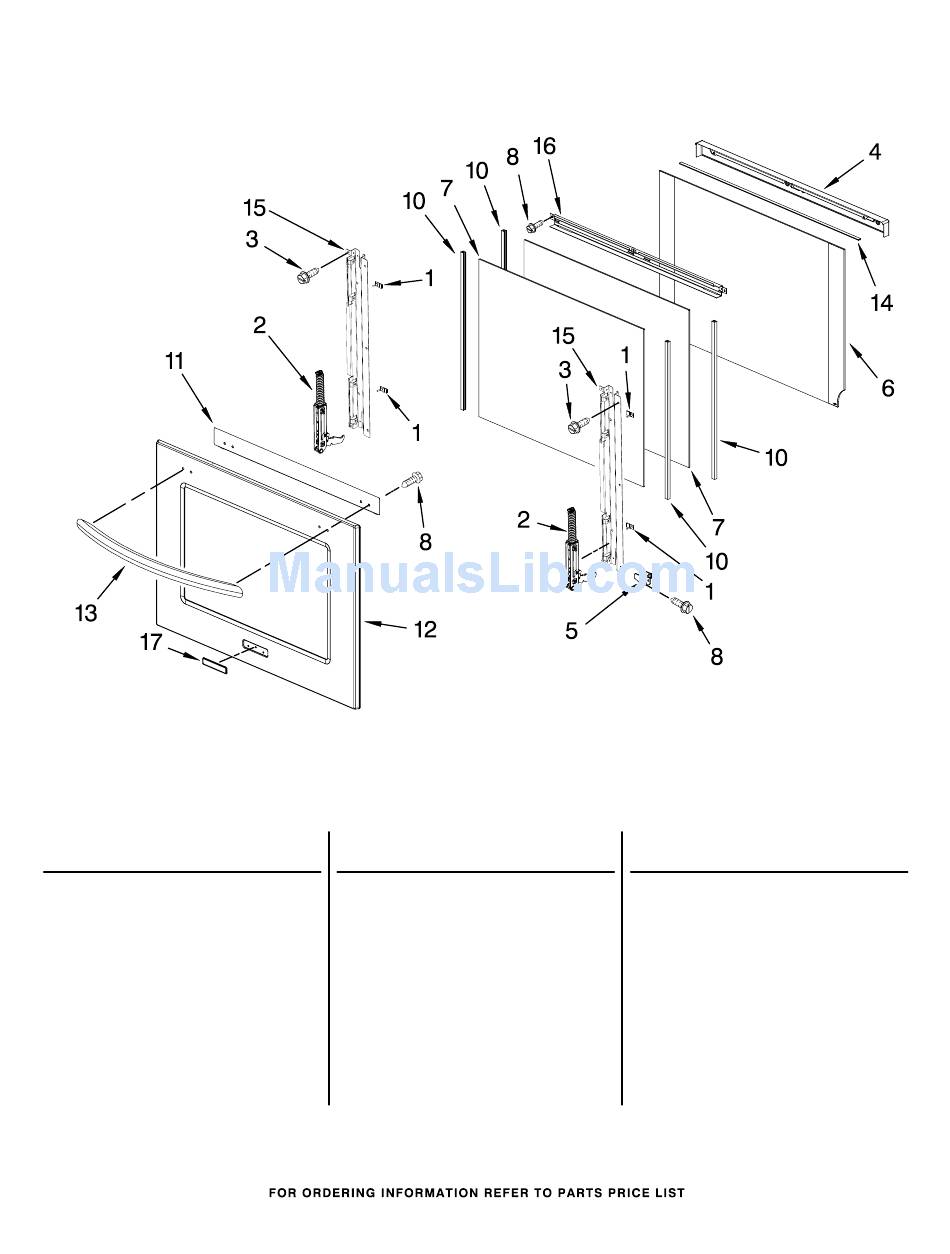

OVEN DOOR PARTS

For Models:KEBK276SBL00, KEBK276SWH00, KEBK276SSS00
(Black)
Illus.
Part
No.
No.
11
8304361BL Bracket, Handle
12
8304001 Black
8304003 White
8303999 Stainless
8304002 Black
8304004 White
8304000 Stainless
(White)
(Stainless)
Illus.
DESCRIPTION
No.
13
Door Glass,
Assembly
Lower Includes #17
14
15
16
17
Door Glass,
Assembly
Upper No Badge
4
Part
No.
DESCRIPTION
Door Handle
8303775BL Black
8303775WH White
8303775SS Stainless
8304525 Seal
8303745BL Frame,Door Side(2)
8303754 Door, Top Bracket
Badge
8304603BL Black
8304603WH White
8304603SS Stainless
W10129034
