Summary of Contents for KitchenAid KEBS207SBL04
-
Page 1: Oven Parts

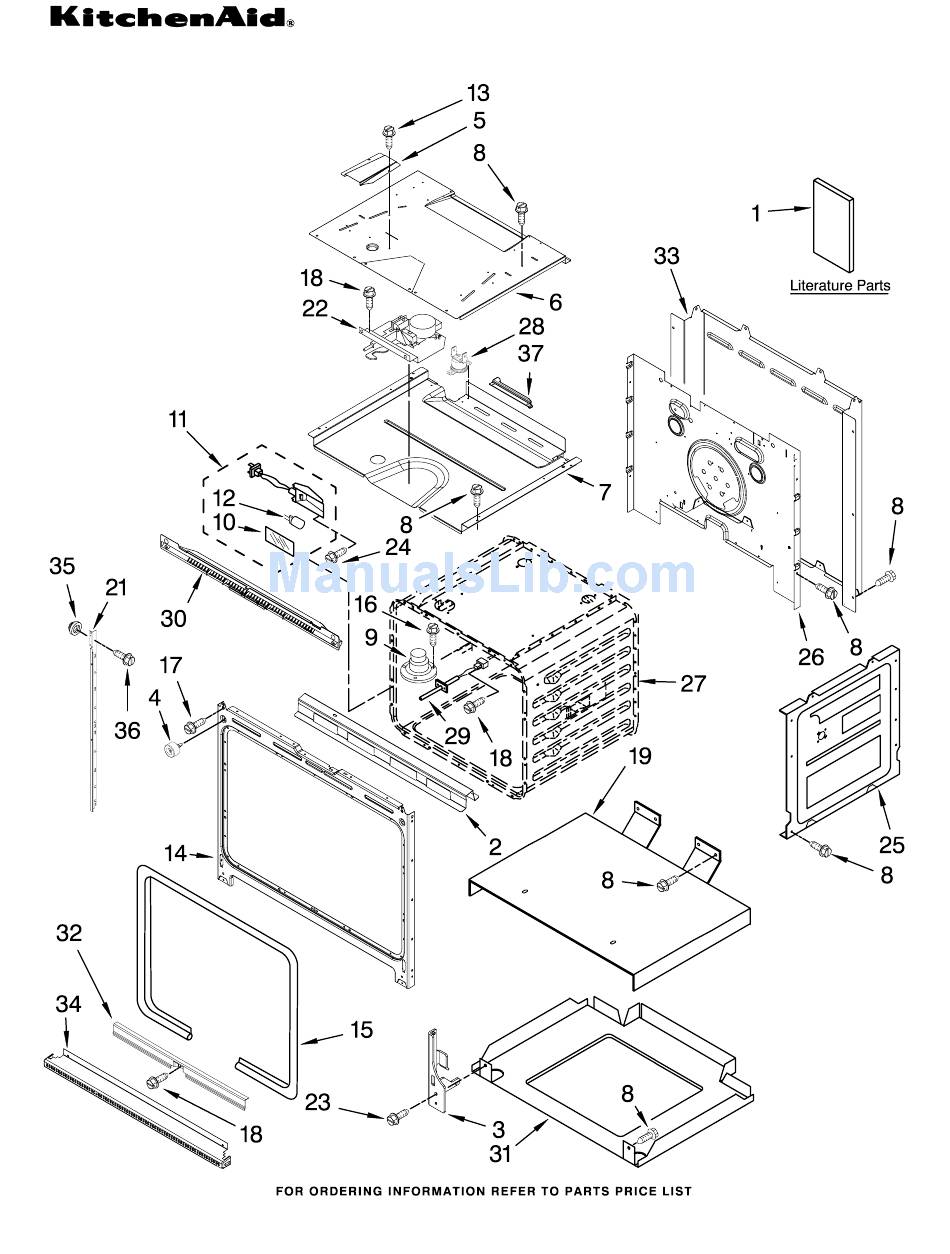

OVEN PARTS 30" BUILT−IN ELECTRIC DOUBLE OVEN For Models:KEBS207SBL04, KEBS207SWH04, KEBS207SSS04 THERMAL CONVECTION (Black) (White) (Stainless) 5−09 Litho in U.S.A. (amd)(bay) Part No. W10269264 Rev. A... - Page 2 For Models:KEBS207SBL04, KEBS207SWH04, KEBS207SSS04 Illus. Part DESCRIPTION Literature Parts 8304336 Installation Instructions W10162180 Use & Care Guide Tech Sheet W10220954 English W10220955 French 8304335 Easy Set Guide Safer Cooking Tips 9762761 English W10065852 French 2 W10153090 Bracket, Base Hinge Receiver...
-
Page 3: Control Panel Parts
CONTROL PANEL PARTS For Models:KEBS207SBL04, KEBS207SWH04, KEBS207SSS04 W10269264 (Black) (White) Illus. Part DESCRIPTION Panel, Control 8303716BL Black 8303716WH White W10216219 Stainless 8303687 Support, Appliance Manager 8304332 Control Panel, Glass Touch 5 W10172472 User Inferface 8303719 Backer, Control 8303887 Bracket,Enclosure 4449154 Screw... -
Page 4: Oven Door Parts
For Models:KEBS207SBL04, KEBS207SWH04, KEBS207SSS04 Illus. Part DESCRIPTION 8303737BL Door Liner 2 W10174285 Hinge, Door (2) 3196183 Screw 8304581BL Vent, Door Top Bracket, Door 8304377 Right 8304378 Left Cover, Door Hinge W10137043 Right W10137044 Left 8303731 Glass, Inner 4449743 Screw 8304523 Seal... - Page 5 INTERNAL OVEN PARTS For Models:KEBS207SBL04, KEBS207SWH04, KEBS207SSS04 W10269264 (Black) (White) (Stainless) Illus. Part DESCRIPTION 9760774 Element, Broil 8304602 Element, Broil Shield 8303841 Rack, Oven 6 W10208155 Oven Rack (Sliding) 9760768 Element, Bake 4455037 Tray, Bake 4449154 Screw 4450039 Cover, Bake Tray...
- Page 6 TOP VENTING PARTS For Models:KEBS207SBL04, KEBS207SWH04, KEBS207SSS04 (Black) (White) Illus. Part DESCRIPTION 9752759 Relay (2) 8304643 Duct, Air Outlet 4449809 Screw 8303972 Blower, 60mm 4450118 Nut 8285593 Connector, Cover 7 W10111628 Transformer, Control 4450038 Screw 4449868 Block, Terminal 3400080 Screw...
-
Page 7: Optional Parts
For Models:KEBS207SBL04, KEBS207SWH04, KEBS207SSS04 W10269264 OPTIONAL PARTS (Black) (White) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 261869 Cord Brown 72032 Black PAINT, SPRAY 350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.)
