KNOW
YOUR
DRILL-DRIVER

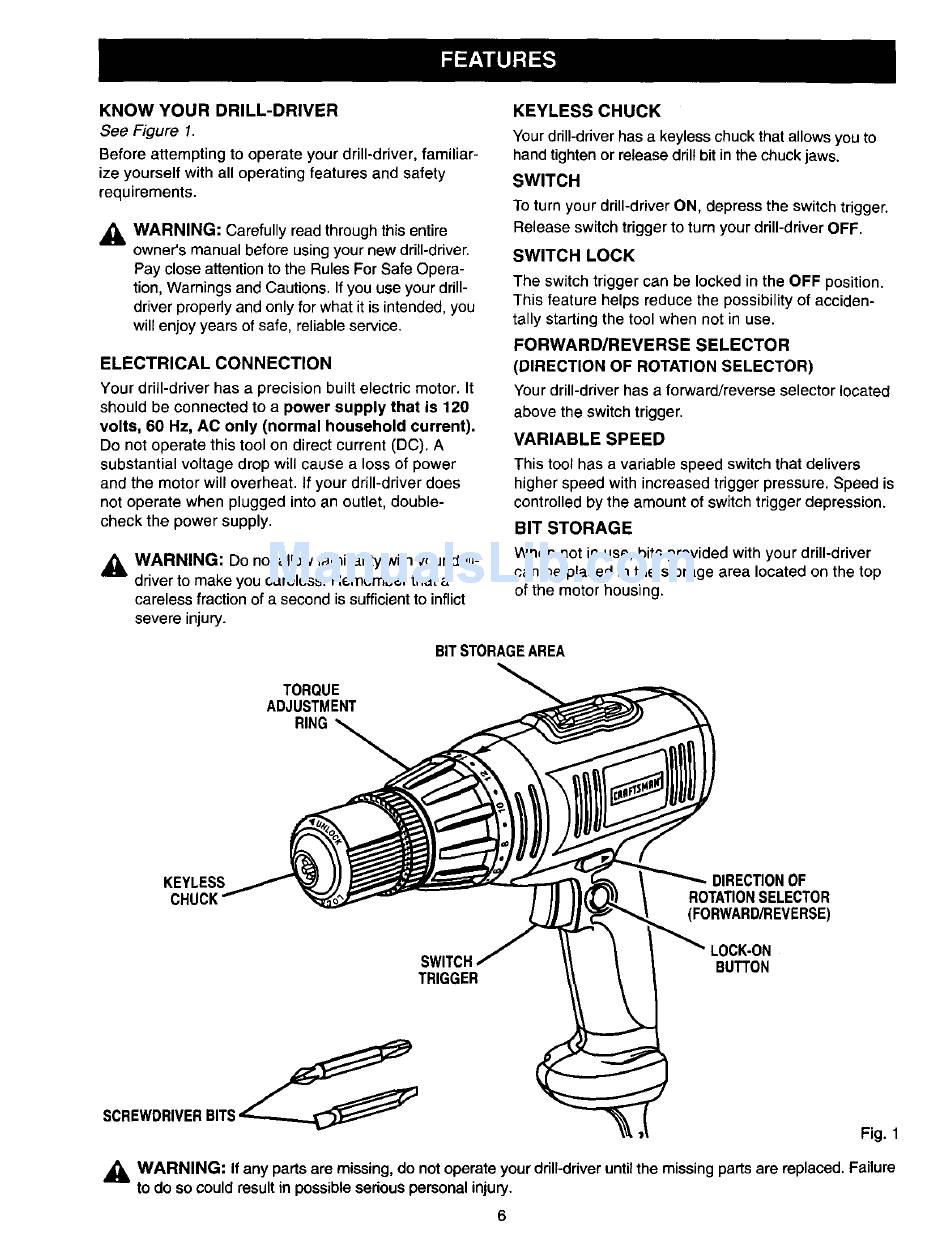

See Figure 1.
Before attempting to operate your drill-driver, familiar-
ize yourself with all operating features and safety
requirements.
_L
WARNING:
Carefully read through this entire
owner's manual before using your new drill-driver.
Pay close attention to the Rules For Safe Opera-
tion, Warnings and Cautions. If you use your drill-
driver properly and only for what it is intended, you
will enjoy years of safe, reliable service.
ELECTRICAL
CONNECTION
Your drill-driver has a precision built electric motor. It
should be connected to a power supply that is 120
volts, 60 Hz, AC only (normal
household
current).
Do not operate this tool on direct current (DC). A
substantial voltage drop will cause a loss of power
and the motor will overheat. If your drill-driver does
not operate when plugged into an outlet, double-
check the power supply.
_i,
WARNING:
Do not allow familiarity with your drill-
driver to make you careless. Remember that a
careless fraction of a second is sufficient to inflict
severe injury.
KEYLESS
CHUCK
Your drill-driverhas a keyless chuck that allows you to
hand tighten or release drill bit in the chuck jaws.
SWITCH
To turn your drill-driver ON, depress the switch trigger.
Release switch trigger to turn your drill-driver OFF.
SWITCH
LOCK
The switch trigger can be locked in the OFF position.
This feature helps reduce the possibility of acciden-
tally starting the tool when not in use.
FORWARD/REVERSE
SELECTOR
(DIRECTION
OF ROTATION SELECTOR)
Your drill-driver has a forward/reverse
selector located
above the switch trigger.
VARIABLE
SPEED
This toot has a variable speed switch that delivers
higher speed with increased trigger pressure. Speed is
controlled by the amount of switch tdgger depression.
BIT STORAGE
When not in use, bits provided with your drill-driver
can be placed in the storage area located on the top
of the motor housing.
BITSTORAGEAREA
TORQUE
ADJUSTMENT
RING
KEYLESS
SWlTC
TRIGGER
DIRECTIONOF
ROTATION SELECTOR
FORWARD/REVERSE)
LOCK-ON
BUTTON
SCREWDRIVER BITS
_
WARNING:
If any parts are missing, do not operate your drill-driveruntil the missing parts
to do so could result in possible serious personal injury.
6
Fig. 1
are replaced. Failure
