Craftsman 315.101270 Owner's Manual
Craftsman 315.101270 Owner's Manual

Craftsman 315.101270 Owner's Manual

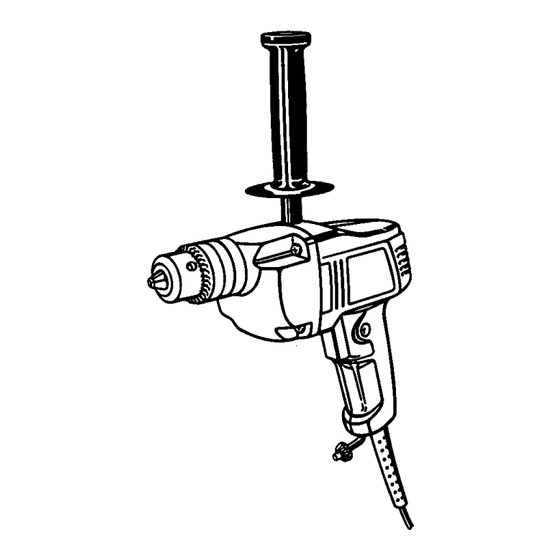

1/2 inch drill single speed - reversible double insulated

Advertisement

Quick Links

SE_/AIR_
OWNER'S
MANUAL
MODEL NO.
315.101270
CAUTION:
Read and follow
ALL safety rules
and instructions
before operating
this equipment.
CRRFTSMRNo
1/2 Inch Drill
Single Speed - Reversible
DOUBLE INSULATED
Thank
You for Buying
A
Craftsman
Drill
Rules for Safe Operation
Warranty
Operation
Maintenance
Repair Parts
®
Sold by SEARS, ROEBUCK AND CO., Hoffman Estates,
IL 60179 U.S.A.
972000-118
11-00
Printed In U.S.A.

Advertisement

loading

Subscribe to Our Youtube Channel

Summary of Contents for Craftsman 315.101270

  • Page 1 Single Speed - Reversible this equipment. DOUBLE INSULATED Rules for Safe Operation Warranty Thank You for Buying ® Operation Craftsman Drill Maintenance Repair Parts Sold by SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179 U.S.A. 972000-118 11-00 Printed In U.S.A.
  • Page 2 RULES FOR SAFE OPERATION DOUBLE INSULATION is a concept in safety, in electric IMPORTANT - Servicing of a tool with double insulation power tools, which eliminates the need for the usual three requires extreme care and knowledge of the system and wire grounded power cord and grounded supply system.
  • Page 3 Outdoor approved cords are WHEN SERVICING ONLY IDENTICAL marked with the suffix W-A, for example - SJTW-A CRAFTSMAN REPLACEMENT PARTS. or SJOW-A. POLARIZED PLUGS. To reduce the risk of electric 23. KEEP BITS CLEAN AND SHARP, Sharp bits shock, this tool has a polarized plug (one blade is minimize stalling and kickback.
  • Page 4 If this Craftsman Drill fails to give complete satisfaction within one year from the date of purchase, RETURN IT TO THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will repair it, free of charge. If this Craftsman Drill is used for commercial or rental purposes, this warranty applies for only 90 days from the date of purchase.
  • Page 5 OPERATION KNOW YOUR ELECTRIC DRILL Beforeattemptingto use your drill,familiarizeyourselfwith all operatingfeatures and safety requirements.See Figure 1. ELECTRICAL CONNECTION Your drill has a precision built electric motor. It should be connected to a power supply that is 120 volts, 60 Hz, AC only (normal household current).
  • Page 6 OPERATION SINGLE SPEED SWITCH See Figure 2. Your drill has a single speed switch. To turn your drill ON, depress switch trigger. Release switch trigger toturn your drill OFF. LOCK-ON BU'I-I'ON See Figure 2. Your drill is equipped with a "lock-on" feature, which is convenient when continuous drilling for extended periods of time is required.
  • Page 7 OPERATION TO INSTALL BITS See Figure 4. UNPLUG YOUR DRILL. Open or close the chuck jaws to a point where the opening is slightly larger than the drill bit you intend to use. Also, raise the front of your drillslightlyto keep the drill bits from falling out of the chuck jaws.
  • Page 8 OPERATION When drilling hard, smooth surfaces use a center punch to mark the desired hole location. This will prevent the drill bit from slipping off center as the hole is started. When drilling metals, use a light oil on the drill bit to keep it from overheating.
  • Page 9 MAINTENANCE GENERAL It has been found that electric tools are subject to accelerated Oniythe parts shown on parts list, page 11, are intended to be wear and possible premature failure when they are used on repairedorreplacadbythecustomer. All other parts represent fiberglass boats, sports...
  • Page 10 CRAFTSMAN 1/2 INCH ELECTRIC DRILL - MODEL NUMBER 315.101270 18 16 17 SEE NOTE "A", Page 11 Page 10...
  • Page 11 CRAFTSMAN 112 INCH ELECTRIC DRILL -- MODEL NUMBER 315.101270 I The model number will be found on a plate attached to the motor housing. Always mention the model number of your DRILL when requesting service I or ordering repair parts.
  • Page 12 For repair of major brand appliances in your own home... no matter who made it, no matter who sold it! 1-800-4-MY-HOME Anytime, day or night (1-800-469-4663) www.sears.com To bring in products such as vacuums, lawn equipment and electronics for repair, call for the location of your nearest Sears Parts & Repair Center. 1-800-488-1222 Anytime, day or night...
