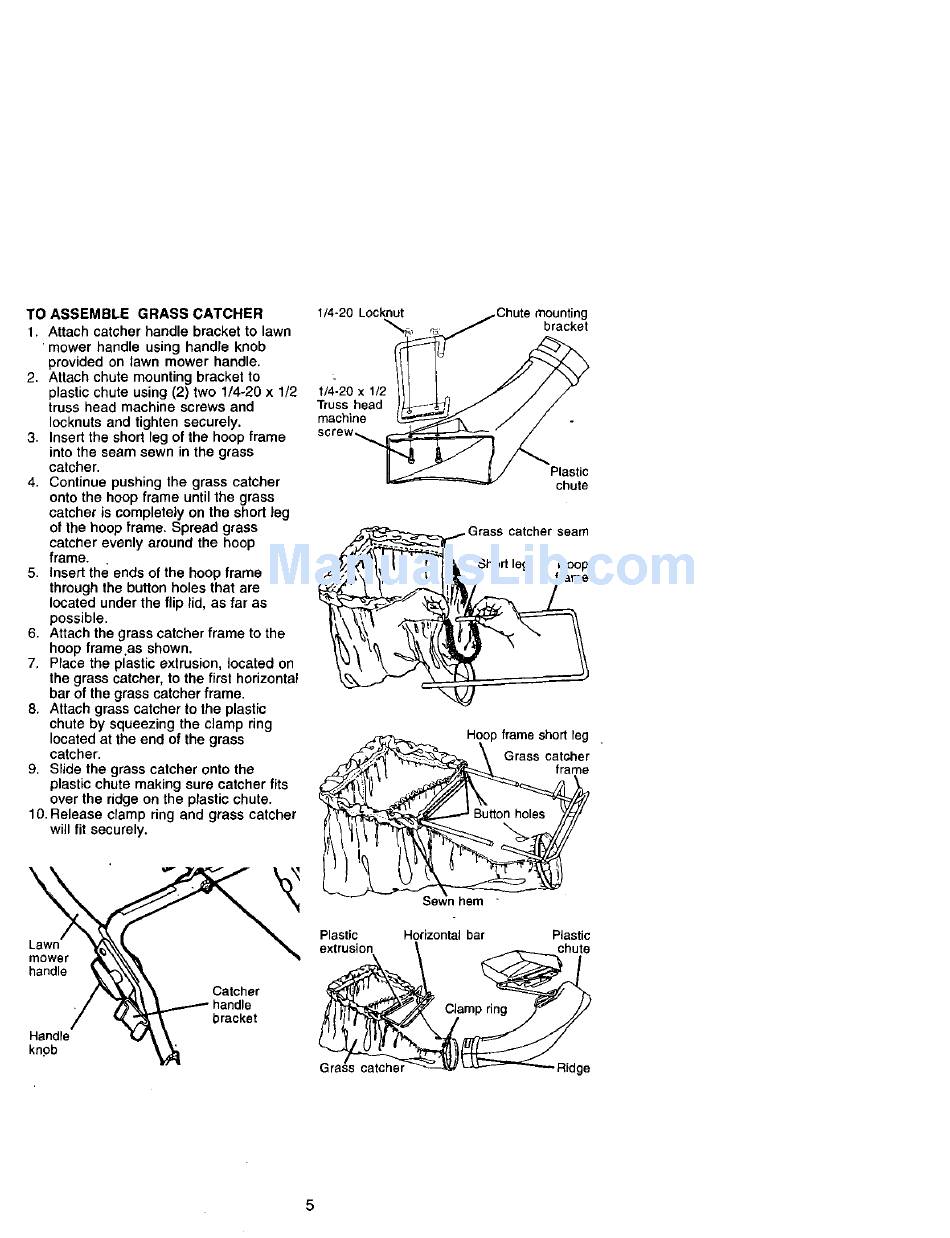

TO ASSEMBLE
GRASS CATCHER
1. Attach catcher handle bracket to lawn
mower handle using handle knob
provided on lawn mower handle.
2. Attach chute mounting bracket to
plastic chute using (2) two 1/4-20 x 1/2
truss head machine screws and
Iocknuts and tighten securely.
3. Insert the short leg of the hoop frame
into the seam sewn in the grass
catcher.
4. Continue pushing the grass catcher
onto the hoop frame until the grass
catcher is completely on the short leg
of the hoop frame. Spread grass
catcher evenly around the hoop
frame.
5. Insed the ends of the hoop frame
through the button holes that are
located under the flip lid, as far as
possible.
6. Attach the grass catcher frame to the
hoop frame as shown.
7, Place the plastic extrusion, located on
the grass catcher, to the first horizontal
bar of the grass catcher frame.
8. Attach grass catcher to the plastic
chute by squeezing the clamp ring
located at the end of the grass
catcher.
9. Slide the grass catcher onto the
plastic chute making sure catcher fits
over the ridge on the plastic chute.
10. Release clamp ring and grass catcher
will fit securely.
Lawn /
mower
handle
Handle
knob
Catcher
handle
bracket
I/4-20
Locknut
Ig
bracket
1/4-20 x 1/2
Truss head
machine
screw,_,
Plastic
chute
_Grass
catcher seam
t
f-'l
Sho.,eg.oop
, frame short leg
Grass catcher
frame
Plastic
Horizontal
bar
Plastic
extrusion
chute
