Craftsman 917.330721 Owner's Manual

Craftsman 917.330721 Owner's Manual

" flip lid " grass catcher for rotary lawn mowers
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Enlarged version
Owner's Manual

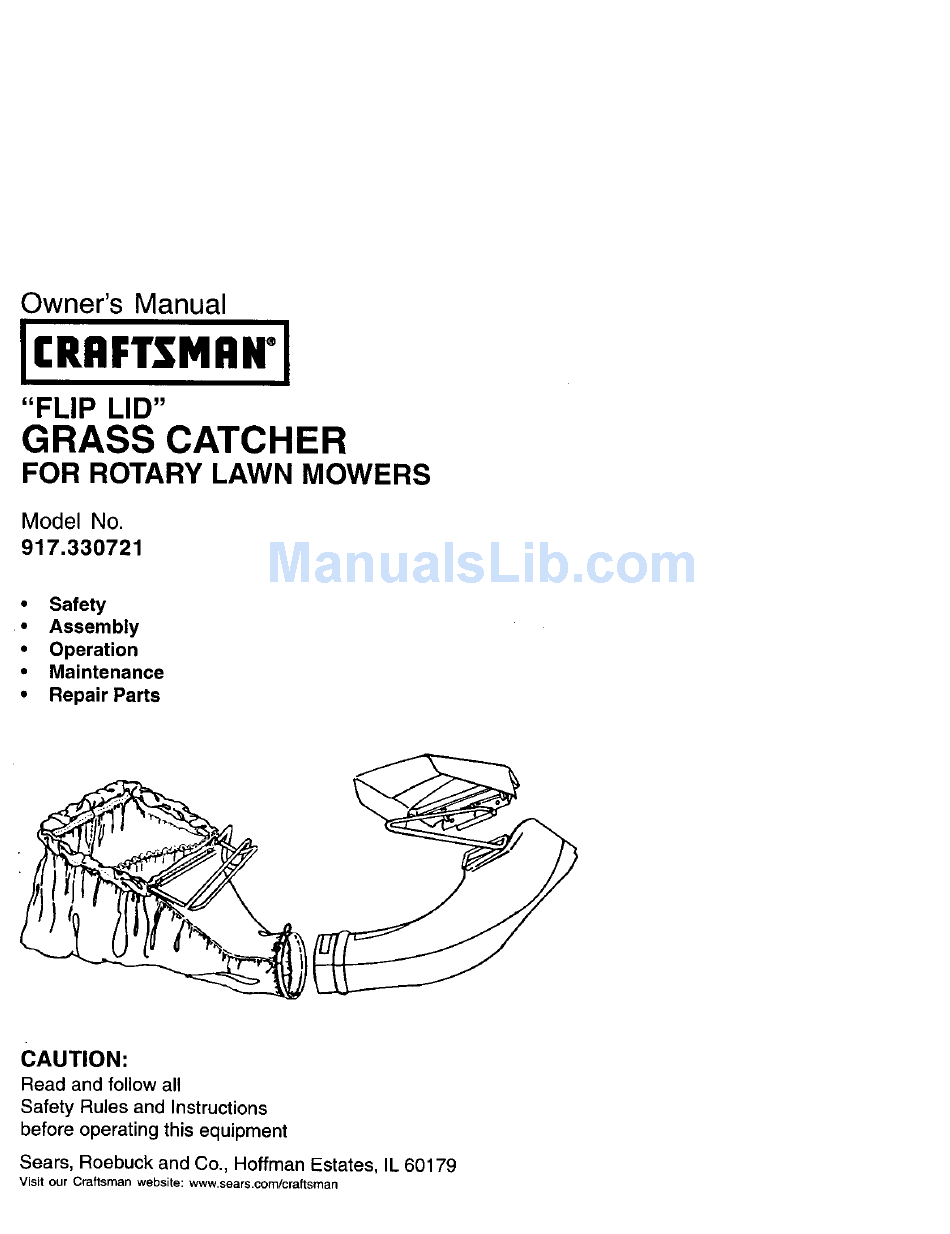

GRASS CATCHER
FOR ROTARY LAWN MOWERS
Model No
917.330721
•
Safety
•
Assembly
•
Operation
•
Maintenance
•
Repair Parts
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating
this equipment
Sears, Roebuck
and Co., Hoffman Estates,
IL 60179
Visit our Craftsman
website: www.sears.com/craftsman

Advertisement

loading
Need help?

Need help?

Do you have a question about the 917.330721 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Craftsman 917.330721

Summary of Contents for Craftsman 917.330721

  • Page 1 Model No 917.330721 • Safety • Assembly • Operation • Maintenance • Repair Parts CAUTION: Read and follow all Safety Rules and Instructions before operating this equipment Sears, Roebuck and Co., Hoffman Estates, IL 60179 Visit our Craftsman website: www.sears.com/craftsman...

  • Page 2: General Operation

    IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. I. GENERAL OPERATION • If the equipment should start to vibrate • Read, understand, and follow all abnormally, stop the engine (motor)
  • Page 3 IV. SERVICE • Mower blades are sharp and can cut. • Use extra care in handling gasoline Wrap the blade(s) or wear gloves, and and other fuels• They are flammable use extra caution when servicing them. and vapors are explosive• •...
  • Page 4 CARTON CONTENTS For future reference and repair parts ordering, keep this manual with your Lawn Mower manual. (1) 178527 Handle Bracket Plastic Chute (1) 163213X479 (2) 63601 Hex Locknuts 1/4-20 (1) 751399 Chute Mounting Bracket (2) 74180410 Truss Head Machine Screws 1/4-20 x (1) 178532 (1) 163214...

  • Page 5: Grass Catcher

    TO ASSEMBLE GRASS CATCHER I/4-20 Locknut bracket 1. Attach catcher handle bracket to lawn mower handle using handle knob provided on lawn mower handle. 2. Attach chute mounting bracket to 1/4-20 x 1/2 plastic chute using (2) two 1/4-20 x 1/2 Truss head truss head machine screws and machine...

  • Page 6: Troubleshooting

    TO EMPTY GRASS CATCHER TO ATTACH GRASS CATCHER 1. Hook the chute mounting bracket over 1. Open flip lid. Squeeze clamp ring and remove grass catcher from plastic the housing bracket on lawn mower. chute. NOTE: When the mounting bracket is in 2.
  • Page 7 SERVICE NOTES...
  • Page 8 Get it fixed, at your home or ours! For repair of majorbrand appliancesin your own home... no matter who made it, no matterwho soldit!. 1-800-4-MY-HOME _rne, day orn_jht (1-800-469-4663) (U.S.A. a ndCanada) wt_t.._qear_corfl w,llw.se_'lt_ca For repairof cany-inproductslike vacuums, lawn equipment,and electronics, call forthe nearest Sears Parts and Repair Center.
