Grass Catcher - Craftsman 917.248962 Owner's Manual

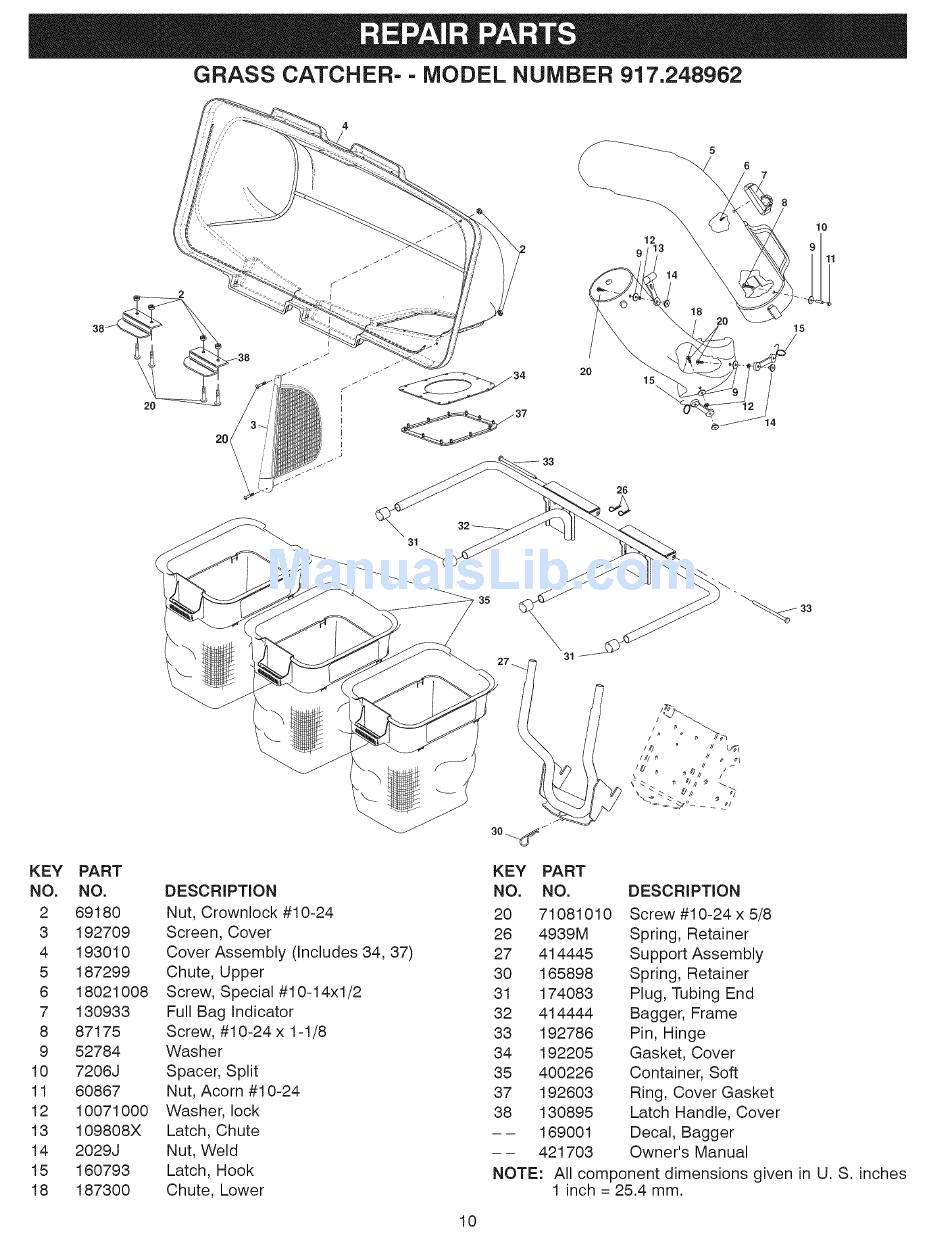

GRASS CATCHER- - MODEL NUMBER 917.248962
2
38_38
2O
20
15
15
31
26
35
31
KEY
NO.
2
3
4
5
6
7
8
9
10
11
12
13
14
15
18
PART
NO. DESCRiPTiON
69180 Nut, Crownlock #10-24
192709 Screen, Cover
193010 Cover Assembly (Includes 34, 37)
187299 Chute, Upper
18021008 Screw, Special #10-14xl/2
130933 Full Bag Indicator
87175 Screw, #10-24 x 1-1/8
52784 Washer
7206J Spacer, Split
60867 Nut, Acorn #10-24
10071000 Washer, lock
109808X Latch, Chute
2029J Nut, Weld
160793 Latch, Hook
187300 Chute, Lower
10
KEY
NO,
20
26
27
30
31
32
33
34
35
37
38
PART
NO. DESCRiPTiON
71081010 Screw #10-24x5/8
4939M Spring, Retainer
414445 Support Assembly
165898 Spring, Retainer
174083 Plug, Tubing End
414444 Bagger, Frame
192786 Pin, Hinge
192205 Gasket, Cover
400226 Container, Soft
192603 Ring, Cover Gasket
130895 Latch Handle, Cover
169001 Decal, Bagger
421703 Owner's Manual
NOTE: All component dimensions given in U. S. inches
1 inch = 25.4 mm.
