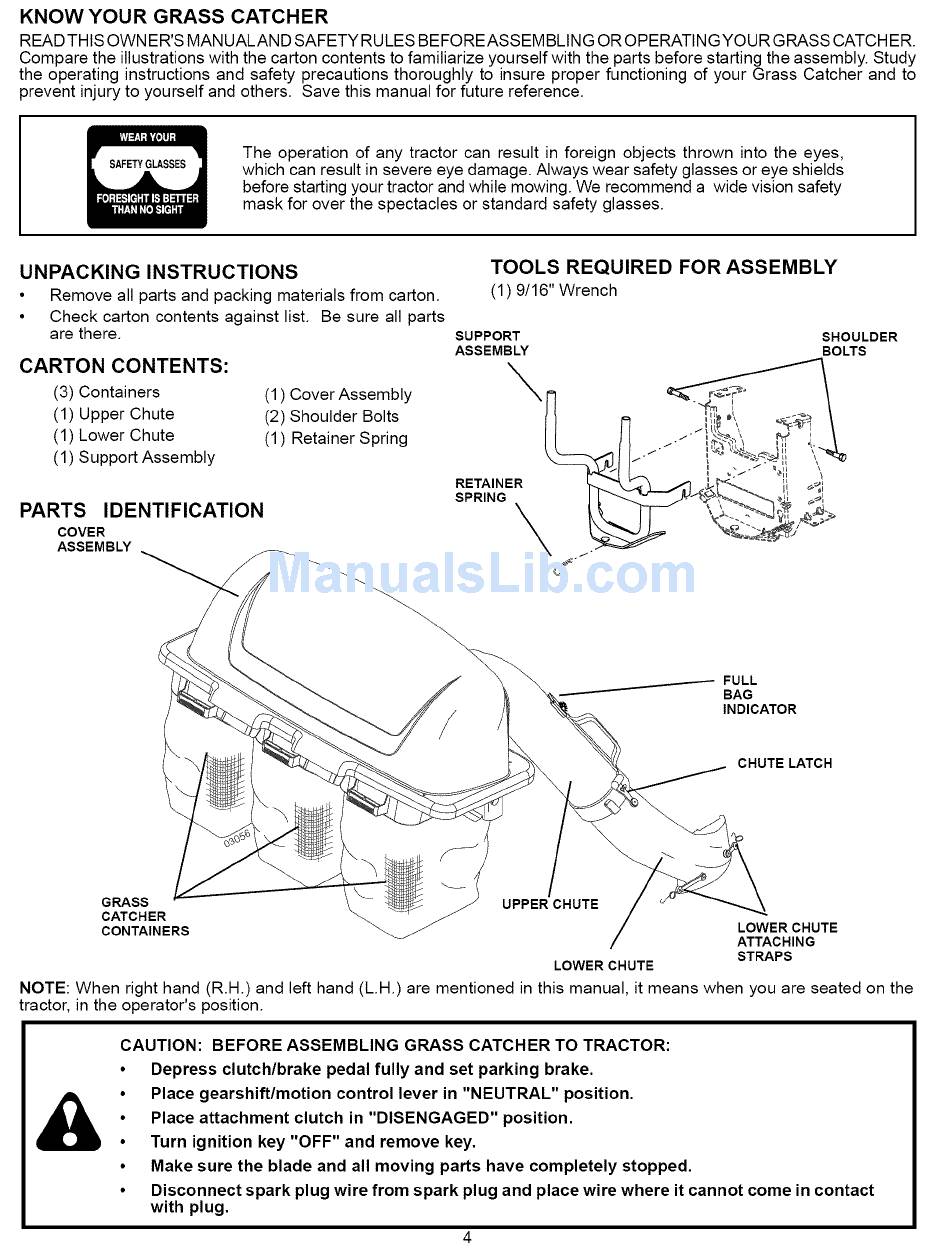

KNOW YOUR GRASS CATCHER
READ THIS OWN ER'S MANUALAND SAFETY RULES BEFOREASSEMBLING
OR OPERATING YOUR GRASS CATCH ER.
Compare the illustrations with the carton contents to familiarize yourself with the parts before starting the assembly. Study
the operating instructions and safety precautions thoroughly to insure proper functioning of your Grass Catcher and to
prevent injury to yourself and others. Save this manual for future reference.
The operation of any tractor can result in foreign objects thrown into the eyes,
which can result in severe eye damage. Always wear safety glasses or eye shields
before starting your tractor and while mowing. We recommend a wide vision safety
mask for over the spectacles or standard safety glasses.
UNPACKING
INSTRUCTIONS
•
Remove all parts and packing materials from carton.
•
Check carton contents against list. Be sure all parts
are there.
CARTON
CONTENTS:
(3) Containers
(1) Upper Chute
(1) Lower Chute
(1) Support Assembly
(1) Cover Assembly
(2) Shoulder Bolts
(1) Retainer Spring
PARTS
IDENTIFICATION
COVER
ASSEMBLY
\
TOOLS
REQUIRED
FOR ASSEMBLY
(1) 9/16" Wrench
SUPPORT
ASSEMBLY
FULL
BAG
INDICATOR
CHUTE LATCH
GRASS
CATCHER
CONTAINERS
UPPER CHUTE
LOWER CHUTE
LOWER CHUTE
ATTACHING
STRAPS
NOTE: When right hand (R.H.) and left hand (LH.) are mentioned in this manual, it means when you are seated on the
tractor, in the operator's position.
&
CAUTION:
BEFORE ASSEMBLING
GRASS CATCHER TO TRACTOR:
•
Depress clutch/brake pedal fully and set parking brake.
i
Place gearshift/motion
control lever in "NEUTRAL"
position.
Place attachment clutch in "DISENGAGED"
position.
Turn ignition key "OFF" and remove key.
•
Make sure the blade and all moving parts have completely stopped.
•
Disconnect spark plug wire from spark plug and place wire where it cannot come in contact
with plug.
