Craftsman 917.249040 Owner's Manual page 11

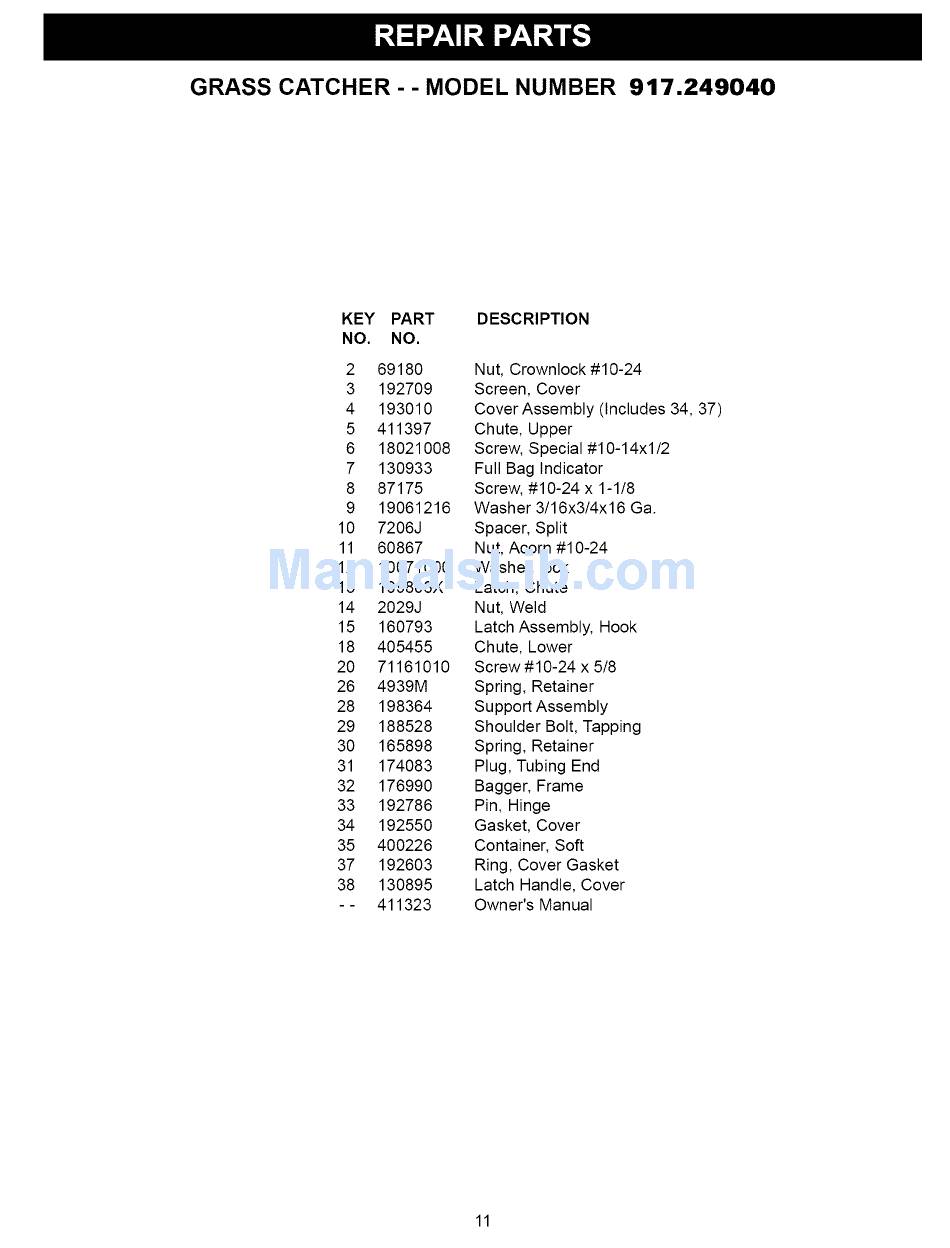

GRASS CATCHER - - MODEL NUMBER 917.249040
KEY PART DESCRIPTION
NO. NO.
2 69180
3 192709
4 193010
5 411397
6 18021008
7 130933
8 87175
9 19061216
10 7206J
11 60867
12 10071000
13 109808X
14 2029J
15 160793
18 405455
20 71161010
26 4939M
28 198364
29 188528
30 165898
31 174083
32 176990
33 192786
34 192550
35 400226
37 192603
38 130895
-- 411323
Nut, Crownlock #10-24
Screen, Cover
Cover Assembly (Includes 34, 37)
Chute, Upper
Screw, Special #10-14xl/2
Full Bag Indicator
Screw, #10-24 x 1-1/8
Washer 3/16x3/4x16 Ga.
Spacer, Split
Nut, Acorn #10-24
Washer, lock
Latch, Chute
Nut, Weld
Latch Assembly, Hook
Chute, Lower
Screw #10-24 x 5/8
Spring, Retainer
Support Assembly
Shoulder Bolt, Tapping
Spring, Retainer
Plug, Tubing End
Bagger, Frame
Pin, Hinge
Gasket, Cover
Container, Soft
Ring, Cover Gasket
Latch Handle, Cover
Owner's Manual
11
