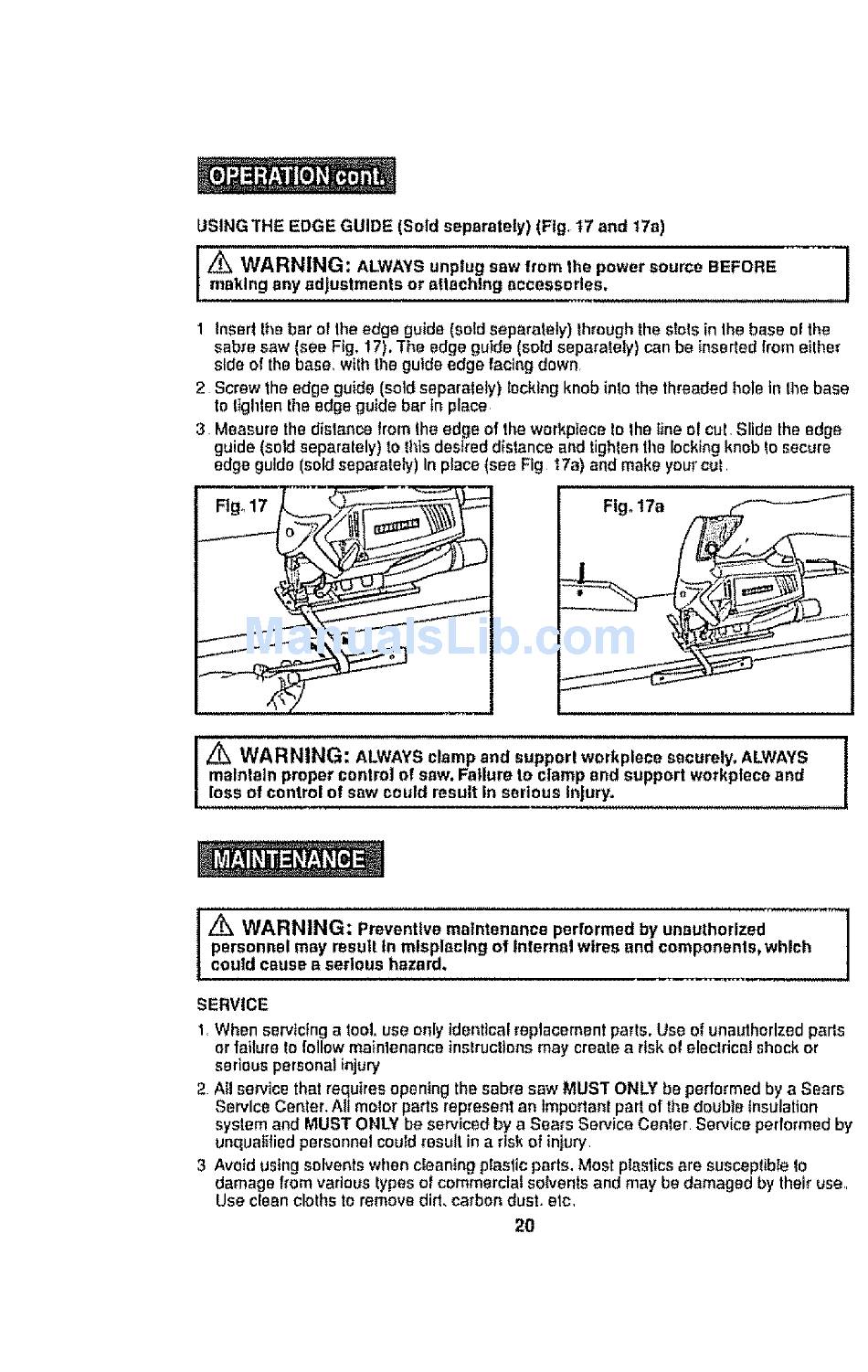

USING THE EDGE GUIDE (Sold separately) (Fig, 17 and t7a)
I _ WARNING: ALWAYS unplug saw from the power source BEFORE 1
making any adjustments or attaching accessories.
1 tnsed the bar of the edge guide (sold separately) lhrough the stets in the base of the
sabre saw (see Fig, '17). The edge guide (sold separately) can be inserted from either
side of the base, with the guide edge facing down,
2 Screw the edge guide (sold separately) locking knob into the threaded hole in the base
to tighten the edge guide bar in place
3 Measure the distance from the edge of the workpfece lo lha line of cut. Slide the edge
guide (sold separately) to ll_ts desired distance and tighlen the locking knob _o secure
edge guide (sold separately) In place (see Fig t 7a) and make your cut,
Z_ WARNING:
ALWAYS clamp and supporl workpleee securely, ALWAYS
maintain proper control or saw. Failure to clamp end support workplace and
toss of control of saw could result in serious injury.
I Z_ WARNING:
Preventive maintenance performed by unauthorized |
1
personnsl may result in misplacing of internal wires end components, which
J
could cause a serious hazard,
SERVICE
t. When servicing a tool. usa oniy identical replacement parts. Use of unauthorized parts
or fatlure to follow mainlenance instructions may create a risk el electrical shock or
serious personal injury
2 Atl service that requires opening the sabre saw MUST ONLY be performed by a Sears
Service Center, All meier parts represent an Important part of the double insulation
system and MUST ONLY be serviced by a Seers Service Center Service performed by
unqualified personnel could result in a risk of injury
3 Avoid using solvents when c_eantng ptaslic parts, Most ptastics ere susceptibIe Io
damage from various types of commercfaf solvents and may be damaged by their use,,
Use clean cloths to remove dirt, carbon dust. etc,
2O
