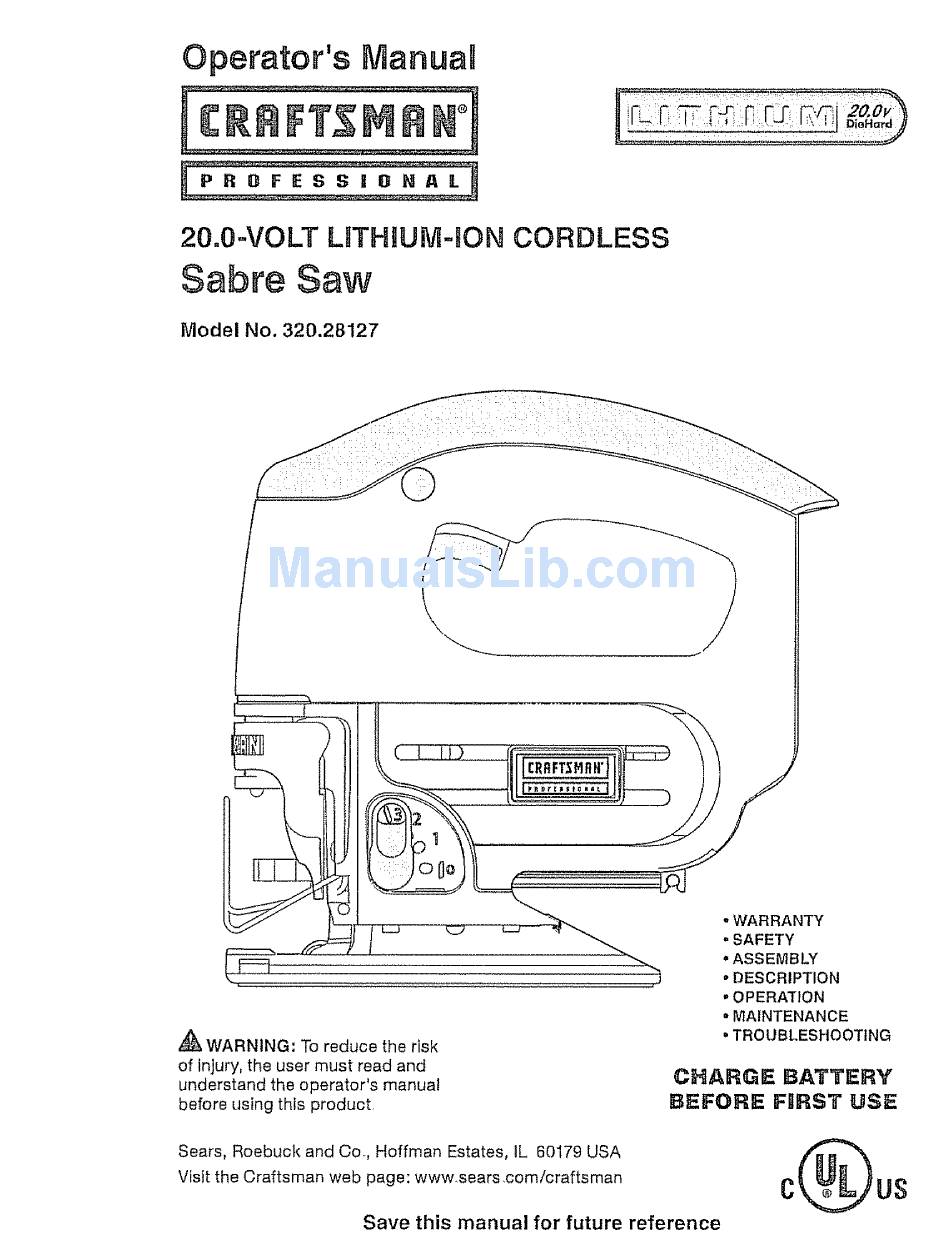

Craftsman Lithium 320.28127 Operator's Manual

20.0-volt lithium-ion cordless sabre saw
Hide thumbs

Advertisement

Quick Links

• _
WARNtNG: To reduce the risk
of injury, the user must read and
understand the operator's manual
before using this product
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman
" WARRANTY
, SAFETY
"ASSEMBLY
• DESCRIPTION
. OPERATION
• r_AINTENANCE
• TROUBLESHOOTING
CHARGE
BATTERY
BEFORE
FIRST
USE
Save this
manual
for future
reference

Advertisement

loading

  Related Manuals for Craftsman Lithium 320.28127

  Summary of Contents for Craftsman Lithium 320.28127

  • Page 1 CHARGE BATTERY understand the operator's manual BEFORE FIRST before using this product Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA Visit the Craftsman web page: www.sears.com/craftsman Save this manual for future reference...
  • Page 2 Exploded View and Parts List Pages 23-26 TWO YEAR LIMITED WARRANTY ON CRAFTSMAN® PROFESSIONAL TOOL If this Craftsman Professional Tool fails due to a defect in material or workmanship, return it to any Sears store, Sears Service Center, or other...
  • Page 3 SAVE THESE INSTRUOTIONS! READ INSTRUCTIONS! This tool has many features for making its use more pleasant and enjoyabte_ Safety, performance, and dependability have been given priority in the design of this product making it easy to maintain and operate. WARNING: Some dust created by using power tools contains chemicals known to the state of California to cause cancer and birth defects...
  • Page 4 Some of these following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and more safely_ SYMBOL NAME DESIGNATION / EXPLANATION Volts Voltage Current Amperes...
  • Page 5 WARNING: READ AND UNDERSTAND ALL INSTRUCTIONS° Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. The term "power tool" in atl of the warnings listed below refer to mains-oper- ated (corded) power tools or battery-operated (cordless) power...
  • Page 6 Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents, Remove any adjusting key or wrench before turning the power...
  • Page 7 Maintain power tools. Check misalignment or binding of moving parts, breakage of parts and any other condition that may affect power tool's operation, if damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools+ Keep cutting...
  • Page 8 Do not place battery tools or their batteries near fire or heat. This will reduce the risk of explosion and possibly injury. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has been dropped or received a sharp...
  • Page 9 SPECIFIC SAFETY RULES FOR SABRE Position your body to either side of the saw blade and not in direct line with the saw blade. Do not reach under the work piece. The blade extends under the work piece when the saw is cutting. Do not touch the blade or the work...
  • Page 10 /J_k WARNING: READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury, Before using battery charger, read all instructions and cautionary mark- ings in this manual, on battery charger', battery and product using battery to prevent misuse of the products and possible injury or damage,...
  • Page 11 Do not operate charger with a damaged cord or plug, which could cause shorting and electric shock. If damaged, have the charger repaired or re- placed by an authorized service technician at Sears Service Center. Do not operate charger if it has received a sharp blow, been...
  • Page 12: Specifications

    Work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling and other construction activities. Wear protective clothing and wash exposed areas with soap...
  • Page 13 KNOW YOUR SABRE (Fig, 1) WARNING: The safe use of this product requires an understanding of the information included on the tool and in this operator's manual, as well as knowl- edge of the project you are attempting. Before using this product, familiarize yourself with all operating features and safety rules.
  • Page 14 Inspect the tool carefully to make sure that no breakage or damage occurred during shipping. Do not discard the packing material until you have carefully inspected satisfactorily operated the tool. If any parts are damaged or missing, return the product and packaging to the place...
  • Page 15: Operation

    SmartChip BATIERY PROTECTION SmartChip intuitive circuitry protects the battery pack from extreme tempera- ture, over-discharge, and over-charge. To protect the battery from damage to prolong its life, the batten./pack's SmartChip circuitry will turn off the battery pack if it becomes overloaded or if the temperature becomes...
  • Page 16 Attach the battery pack to Fig. 3 the charger by aligning the raised ribs of the battery pack with the slot in the char- ger. Slide the battery pack onto the charger. (Fig. 3) The charger will cornmuni- cate with the battery pack's SmartChip circuitry...
  • Page 17 and the green LED will be off_ When the battery warms to a temperature of more than 32°F (0°C), the charger' wilt automatically begin charging. DEFECTIVE BATTERY If the charger detects a problem, the red LED wil! begin flashing and the green LED will be off.
  • Page 18 TO ATTACH BATTERY PACK (Fig, 5) Align the raised portion on the battery pack with the grooves on the rear of the sabre saw, then attach the battery pack to the tool as shown, Make sure the latch on the battery pack snaps into place and that the batter,/ pack is secured to the saw before...
  • Page 19: Removing Saw Blade

    By doing this, you will get a smoother, faster cut and prolong blade life_ Additional blades for this saw are available from your nearest Craftsman retailer. You must use a T-shank blade. 28127 Manual_Revised 074_320 Page 19...
  • Page 20 HEX KEY STORAGE (Fig. 9 Fig. 9 Secure the supplied hex hey at the bottom of the saw base. Push it into place. Remove time hex key by pulling it free. ORBITAL MOTION (Fig. 10) The blade of the saw cuts ill an orbital motion.
  • Page 21: Plunge Cutting

    BEVEL CUTTING Fig. 12 Bevel-cutting angles may be adjusted from 0 ° to 45 ° right or left. Angles for cuts from 0 ° to 45 ° in 15 ° increments marked on a scale on both the left and the right sides of the base, Notches on the rear of the base...
  • Page 22: Maintenance

    GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from commercial solvents and may be damaged by their user Use clean cloths to remove dirt, dust, oil, grease, WARNING: Do not at any time allow brake fluids, gasoline, petroleum-based products, penetrating...
  • Page 23 CAUSE SOLUTION PROBLEM Blade cannot be Blade is incorrect Use "T" shank blade only installed The "LOCK-OFF" switch is The trigger cannot Release the lock-off switch be depressed engaged Battery is depleted Charge the battery The Saw does not work Reset the battery by de- Battery is protected pressing the "Power Bar"...
  • Page 24 5670175000 3700184000 Washer 3703717000 Pendulum Plate , ,,,,,,,, ,,,, ,,,, 3520244000 Counterweight 2822262000 Counterweight 2822159000 Gear Set 5700029000 Needle Bearing 3550186000 Gear Shaft 3700183000 Washer 5660007000 i Circlips For Shaft 5700022000 Needle Bearing 3550214000 Crank Roller 5620068000 Screw 3550172000 Drive Bracket 3550813000 Suppod 3520240000...
  • Page 25 3810006000 Sabre saw Blade 3420534000 Gear Case Cover 5620040000 Screw 3123125000 Wrench 3123413000 LED Cover 3650082000 Wire Guard 3550814000 Pendulum pin ....... 3550883000 Guiding Roller Support 3703719000 Guiding Roller Support 3550811000 Guiding Roller 5700021000 Needle Bearing 3550878000 Guiding Roller Pin E RING 5690125000 3420532000...
  • Page 26 28127 M anual_Revised 07-0320 Page 26...
  • Page 27 28127 M anual Revised_07-0320 Page 27...
  • Page 28 Get tried, at your homeor ours! Your Home For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter made it, no matter who sold For the replacement parts, accessories owner's manuals...
