PROLINE CHEF'S BLENDER
3−SPEED HOUSEHOLD/STAINLESS STEEL JAR
MODELS:
KPCB348SPM0 (Pearl Metallic)
4KPCB348SPM0 (Pearl Metallic)
c
2006 KITCHENAID
4−06 Litho in U.S.A. (skr)
Part No. 8204589 Rev. C

Advertisement

   Summary of Contents for KitchenAid KPCB348SPM0

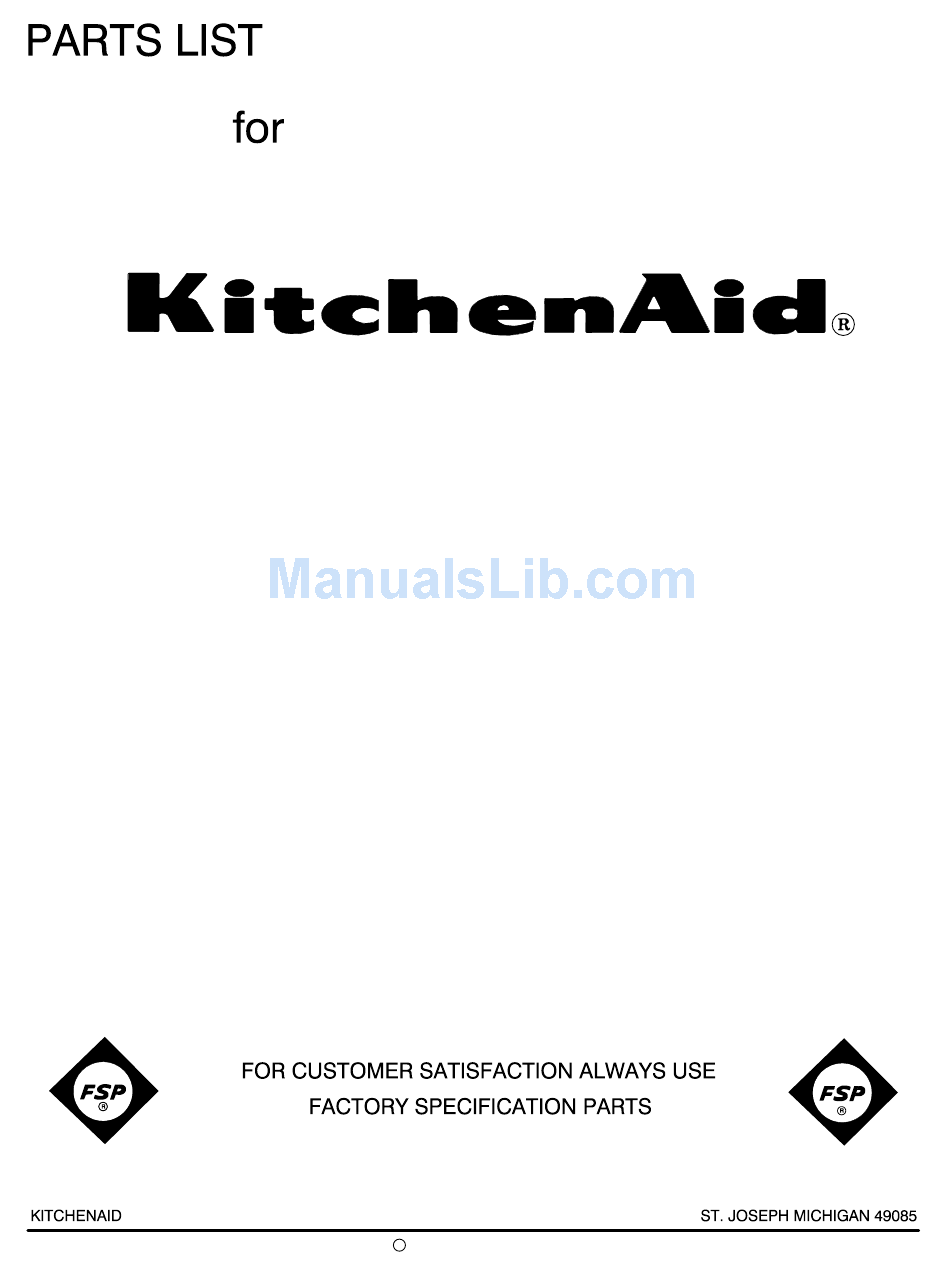

  • Page 1

    PROLINE CHEF’S BLENDER 3−SPEED HOUSEHOLD/STAINLESS STEEL JAR MODELS: KPCB348SPM0 (Pearl Metallic) 4KPCB348SPM0 (Pearl Metallic) 2006 KITCHENAID 4−06 Litho in U.S.A. (skr) Part No. 8204589 Rev. C...

  • Page 2

    JAR ASSEMBLY PARTS For Models: KPCB348S_ _0, 4KPCB348S_ _0 Illus. Part DESCRIPTION Literature Parts Use & Care Guide 8204582 U.S. 8212224 Canada 8204589 Repair Parts List 8212228 Cap, Ingredient 8211478 Lid Assembly 8212231 Jar, Stainless (Incl Blade Assy) 8212281 Blade Assembly 8204589...

  • Page 3

    MOTOR AND HOUSING PARTS For Models: KPCB348S_ _0, 4KPCB348S_ _0 Illus. Part DESCRIPTION 4176868 Coupler, Lower 4176869 Housing 4176870 Cord, Power 4176873 Seal, Motor 4176874 Motor 4176875 Screw, 10 x 16 4176876 Base 4176877 Screw, 10 x 16 4176878 Screw, 8 x 3/8 4176879 Foot, Pedestal 4176880 Cover, Base 8211663 Sensor, Hall...

  • Page 4

    ESCUTCHEON AND CONTROL PARTS For Models: KPCB348S_ _0, 4KPCB348S_ _0 Illus. Part DESCRIPTION 4176866 Seal, Nameplate 4176867 Nut, Washer 4176865 Nameplate 4176884 Control PCB Assy 3−Speed 4176864 Switch, Mount 4176861 Seal, Escutcheon 4176860 Escutcheon 4176859 Switch, On/Off 4176858 Bezel, Switch 4176883 Mount, Main PCB 4176882 Main PCB 4176897 Nut, Plastic...
