KitchenAid 4KPCB348PPM1 Parts List

Proline chef's blender 3−speed household/plastic jar.
Hide thumbs


Advertisement

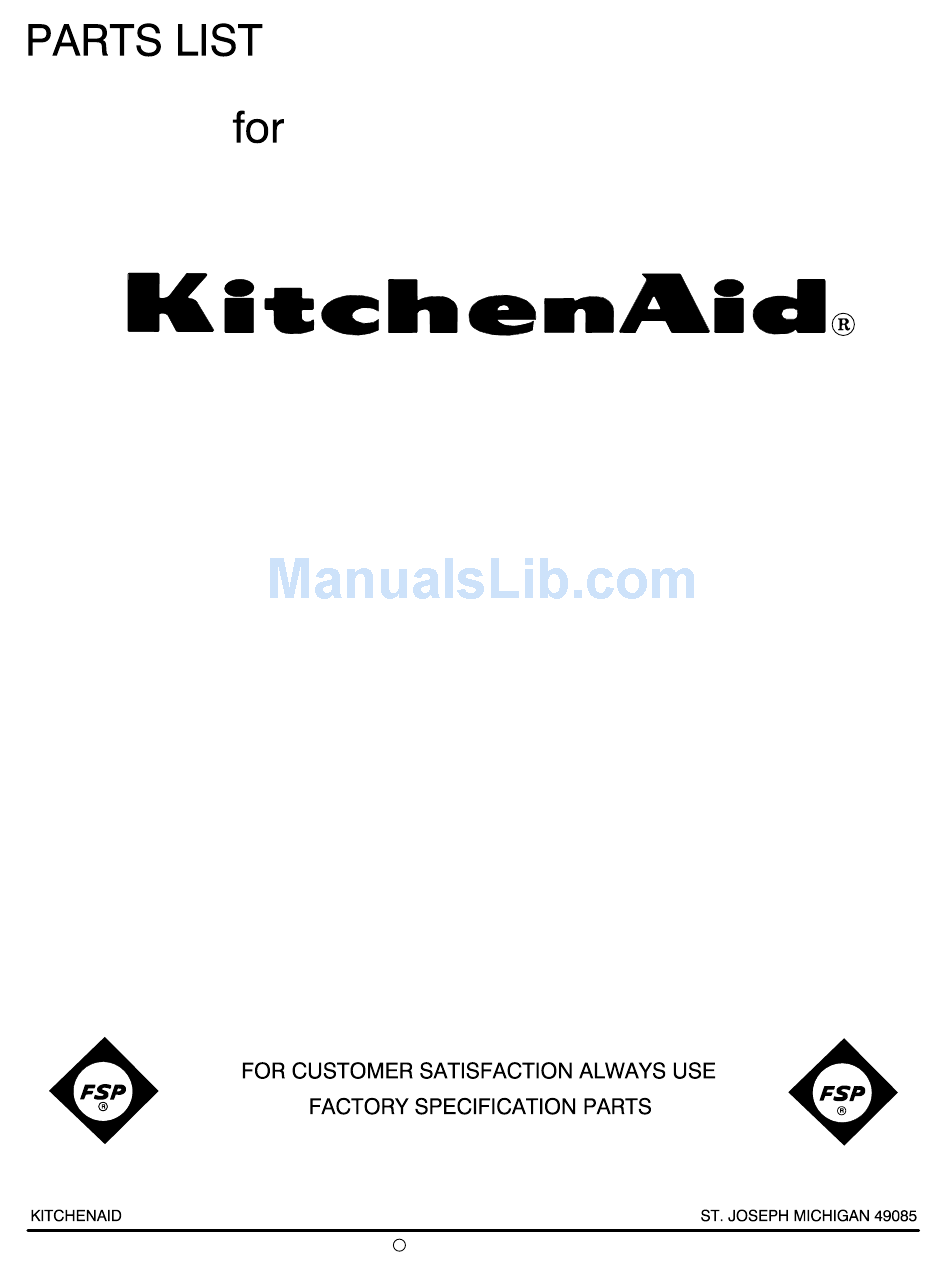

PROLINE CHEF'S BLENDER
3−SPEED HOUSEHOLD/PLASTIC JAR
MODELS:
KPCB348PPM1 (Pearl Metallic)
KPCB348PNP1 (Nickel Pearl)
KPCB348POB1 (Onyx Black)
4KPCB348PPM1 (Pearl Metallic)
c
2008 KITCHENAID
03−08 Litho in U.S.A. (skr)
Part No. 8212134 Rev. B

Advertisement

Table of Contents

   Summary of Contents for KitchenAid 4KPCB348PPM1

  • Page 1 PROLINE CHEF’S BLENDER 3−SPEED HOUSEHOLD/PLASTIC JAR MODELS: KPCB348PPM1 (Pearl Metallic) KPCB348PNP1 (Nickel Pearl) KPCB348POB1 (Onyx Black) 4KPCB348PPM1 (Pearl Metallic) 2008 KITCHENAID 03−08 Litho in U.S.A. (skr) Part No. 8212134 Rev. B...
  • Page 2 8212134 JAR ASSEMBLY PARTS For Models: KPCB348P_ _1, 4KPCB348P_ _1 Illus. Part DESCRIPTION Literature Parts Use & Care Guide 8204582 U.S. 8212224 Canada 8212134 Repair Parts List 8212228 Cap, Ingredient 8211478 Lid Assembly 8212227 Jar, Plastic (Incl. Blade Assy) 8212280 Blade Assembly...
  • Page 3 MOTOR AND HOUSING PARTS For Models: KPCB348P_ _1, 4KPCB348P_ _1 Illus. Part DESCRIPTION 4176868 Coupler, Lower Housing 4176869 Pearl Metallic 8212232 Nickel Pearl W10193428 Onyx Black 4176870 Cord, Power 4176873 Seal, Motor 4176874 Motor 4176875 Screw 4176876 Base 4176877 Screw 4176878 Screw 4176879 Foot, Pedestal 4176880 Cover, Base...
  • Page 4 ESCUTCHEON AND CONTROL PARTS 8212134 For Models: KPCB348P_ _1, 4KPCB348P_ _1 Illus. Part DESCRIPTION 4176866 Seal, Nameplate 4176867 Nut, Washer 4176865 Nameplate 4176864 Switch, Mount 4176861 Seal, Escutcheon 3−Speed 4176860 Escutcheon 4176859 Switch, On/Off 4176858 Bezel, Switch 4176883 Mount, Main PCB 4176882 Main PCB, 3−speed 4176897 Nut, Plastic 4176881 Screw, Plastic...

This manual is also suitable for:

Kpcb348pnp1Kpcb348pob1Kpcb348ppm1
