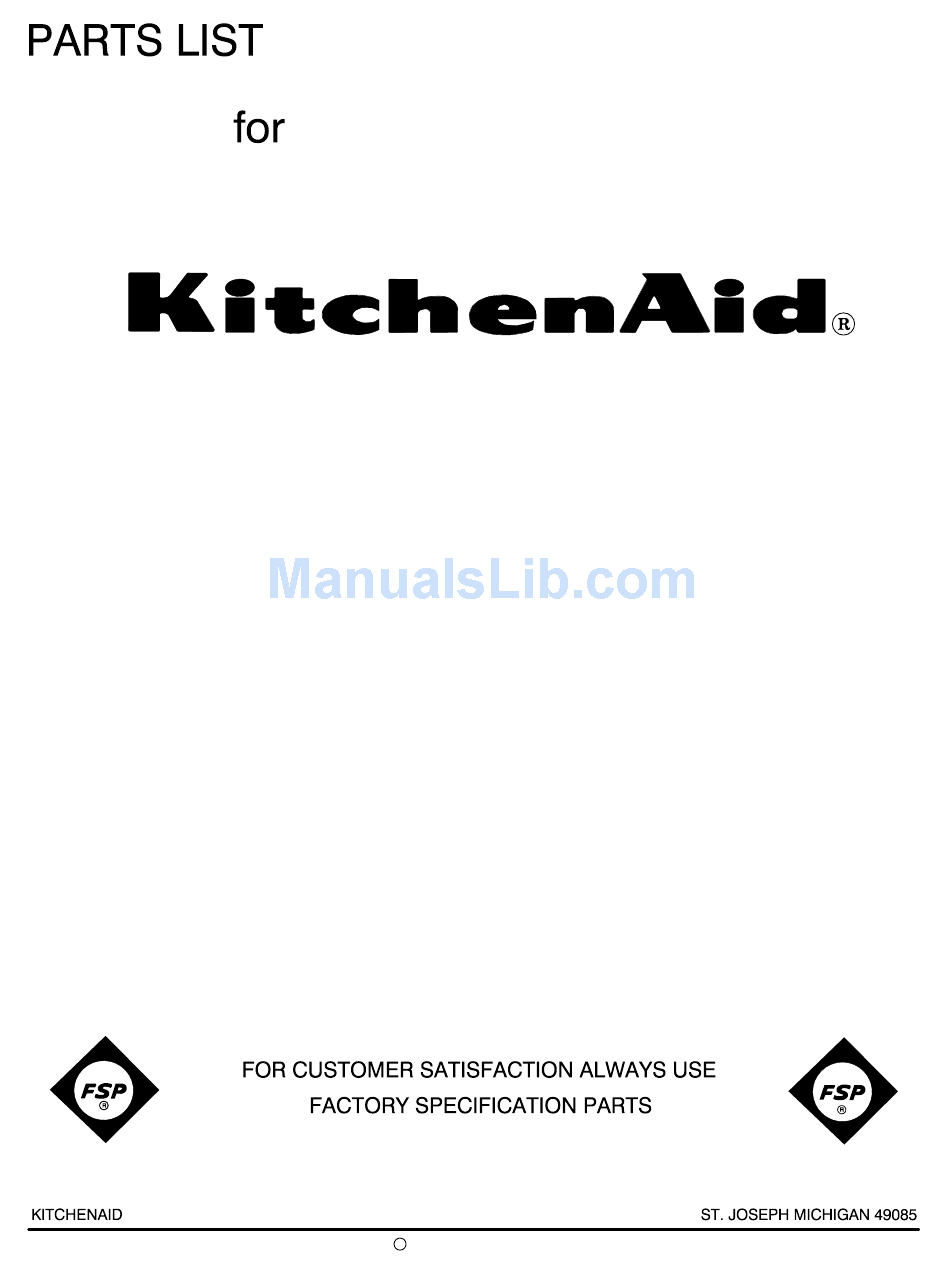

KitchenAid KPCB348SOB1 Parts List

Hide thumbs


Advertisement

PROLINE CHEF'S BLENDER
3−SPEED HOUSEHOLD/STAINLESS STEEL JAR
MODELS:
KPCB348SPM1 (Pearl Metallic)
KPCB348SOB1 (Onyx Black)
4KPCB348SPM1 (Pearl Metallic)
c
2009 KITCHENAID
11−09 Litho in U.S.A. (skr)
Part No. 8212139 Rev. B

Advertisement

   Summary of Contents for KitchenAid KPCB348SOB1

  • Page 1

    PROLINE CHEF’S BLENDER 3−SPEED HOUSEHOLD/STAINLESS STEEL JAR MODELS: KPCB348SPM1 (Pearl Metallic) KPCB348SOB1 (Onyx Black) 4KPCB348SPM1 (Pearl Metallic) 2009 KITCHENAID 11−09 Litho in U.S.A. (skr) Part No. 8212139 Rev. B...

  • Page 2

    JAR ASSEMBLY PARTS For Models: KPCB348S_ _1, 4KPCB348S_ _1 Illus. Part DESCRIPTION Literature Parts Use & Care Guide 8204582 U.S. 8212224 Canada 8212139 Repair Parts List 8212228 Cap, Ingredient 8211478 Lid Assembly 8212231 Jar, Stainless (Incl. Blade Assy) 8212281 Blade Assembly 8212139...

  • Page 3

    MOTOR AND HOUSING PARTS For Models: KPCB348S_ _1, 4KPCB348S_ _1 Illus. Part DESCRIPTION 4176868 Coupler, Lower Housing 4176869 Pearl Metallic W10193429 Onyx Black 4176870 Cord, Power 4176873 Seal, Motor 4176874 Motor 4176875 Screw 4176876 Base 4176877 Screw 4176878 Screw 4176879 Foot, Pedestal 4176880 Cover, Base 8211663 Sensor, Hall Effect...

  • Page 4

    ESCUTCHEON AND CONTROL PARTS For Models: KPCB348S_ _1, 4KPCB348S_ _1 Illus. Part DESCRIPTION 4176866 Seal, Nameplate 4176867 Nut, Washer 4176865 Nameplate 4176864 Switch, Mount 4176861 Seal, Escutcheon 3−Speed 4176860 Escutcheon 4176859 Switch, On/Off 4176858 Bezel, Switch 4176883 Mount, Main PCB 4176882 Main PCB, 3−Speed 4176897 Nut, Plastic 4176881 Screw, Plastic...

This manual also for:

Kpcb348spm1, 4kpcb348spm1
