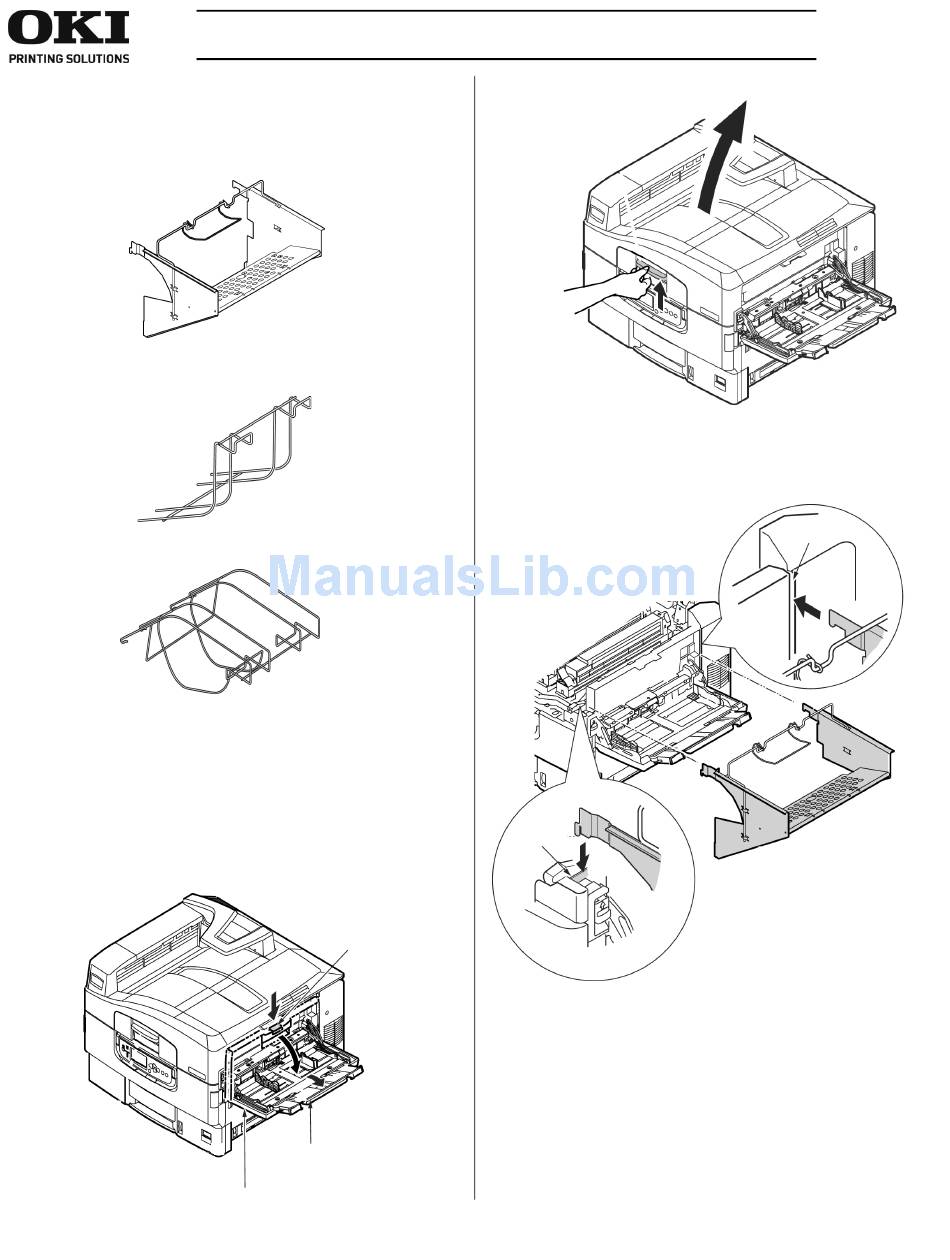

Step 1: Checking the parts

The banner tray has the three parts.

a. Guide base

b. Sheet guide

c. Stacker

Step 2: Assembling the Banner

Tray

1. Press the button on the right side of the printer

(a) to open the multi-purpose tray (b). Open

the paper supporter (c).

Banner Tray Installation Guide

2. Open the top cover.

3. Hold the guide base with both hands. Install the

guide base as shown, laying it on top of the

multi-purpose tray.

Note: Be sure the paper tray is on top of the

extended multipurpose tray.

4. Make sure the guide base is securely in place.

5. Close the top cover.

Need help?

Do you have a question about the C9600hdn and is the answer not in the manual?

Page 1 Banner Tray Installation Guide Step 1: Checking the parts 2. Open the top cover. The banner tray has the three parts. a. Guide base 3. Hold the guide base with both hands. Install the guide base as shown, laying it on top of the multi-purpose tray.
Page 2 6. Flip the sub-stacker (a) in the direction indi- 8. Insert the sheet guide into the holes in the cated by the arrow so that it rests on the plastic guide base. piece that extends from the printer (b). Be sure the sub-stacker is in place before you go to the next step.
Page 3 10. Make sure that 2. Insert the front edge of the paper in the manual • the stacker (a) is on the sheet guide (b). guide along the sheet guide (1) and place the • the sub-stacker (c) is on the plastic back edge over the stacker (2) as shown.
Page 4 (c) is on the plastic paper source. For details, refer to "Custom extension piece on the printer (d). Page Size" in your online Printing Guide. • The paper is straight. 58376201 © 2006 Oki Data Americas, Inc.
