Installation Guide

4. Connect the Components

The following sections describe how to connect the system components:
The figure below provides a sample configuration. See
Configuration Overview

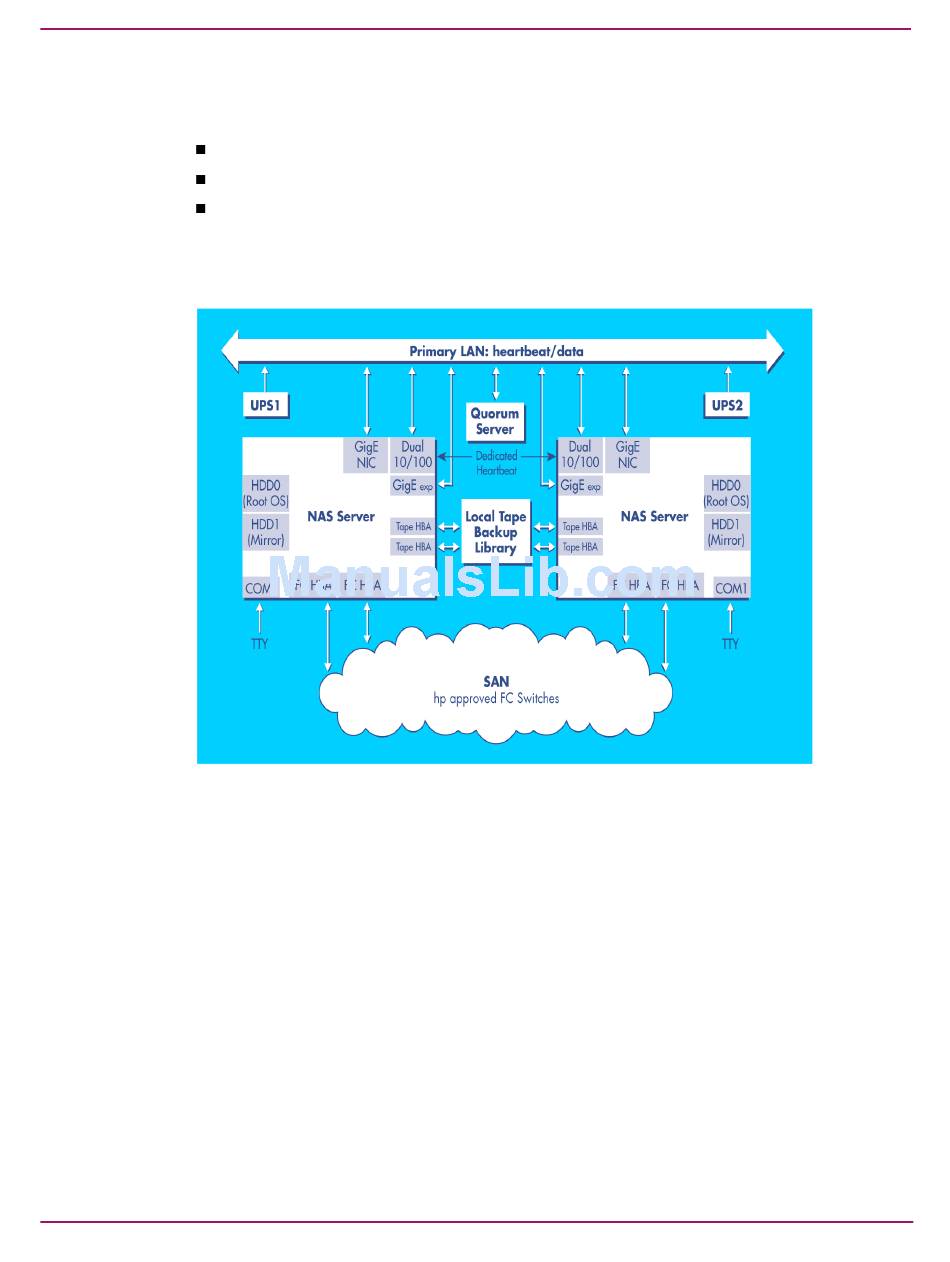

Figure 9: Sample Connection Diagram
If you are using Data Path Manager, the connection diagram will be slightly more complex.
See the HP NAS Data Path Manager Installation and User's Guide for more information.

Connect a Tape Library (optional)

You may connect a tape library to your NAS server by ordering the appropriate HBAs
(installed in PCI slots 1 & 2). The NAS 8000 supports either SCSI or fibre-channel HBAs.
The tape library can be shared by both NAS servers; however, the NAS 8000 nodes cannot
share a tape library with other components on a SAN.
See the tape library user's guide for detailed connection instructions.
42
Tape library
Network ports
Power
on page 9 for detailed cabling diagrams for your configuration
HP StorageWorks NAS 8000 SAN High Availability, Solution Integration Manual (SIM)
Solution Integration and Product
