Network and Storage Planning

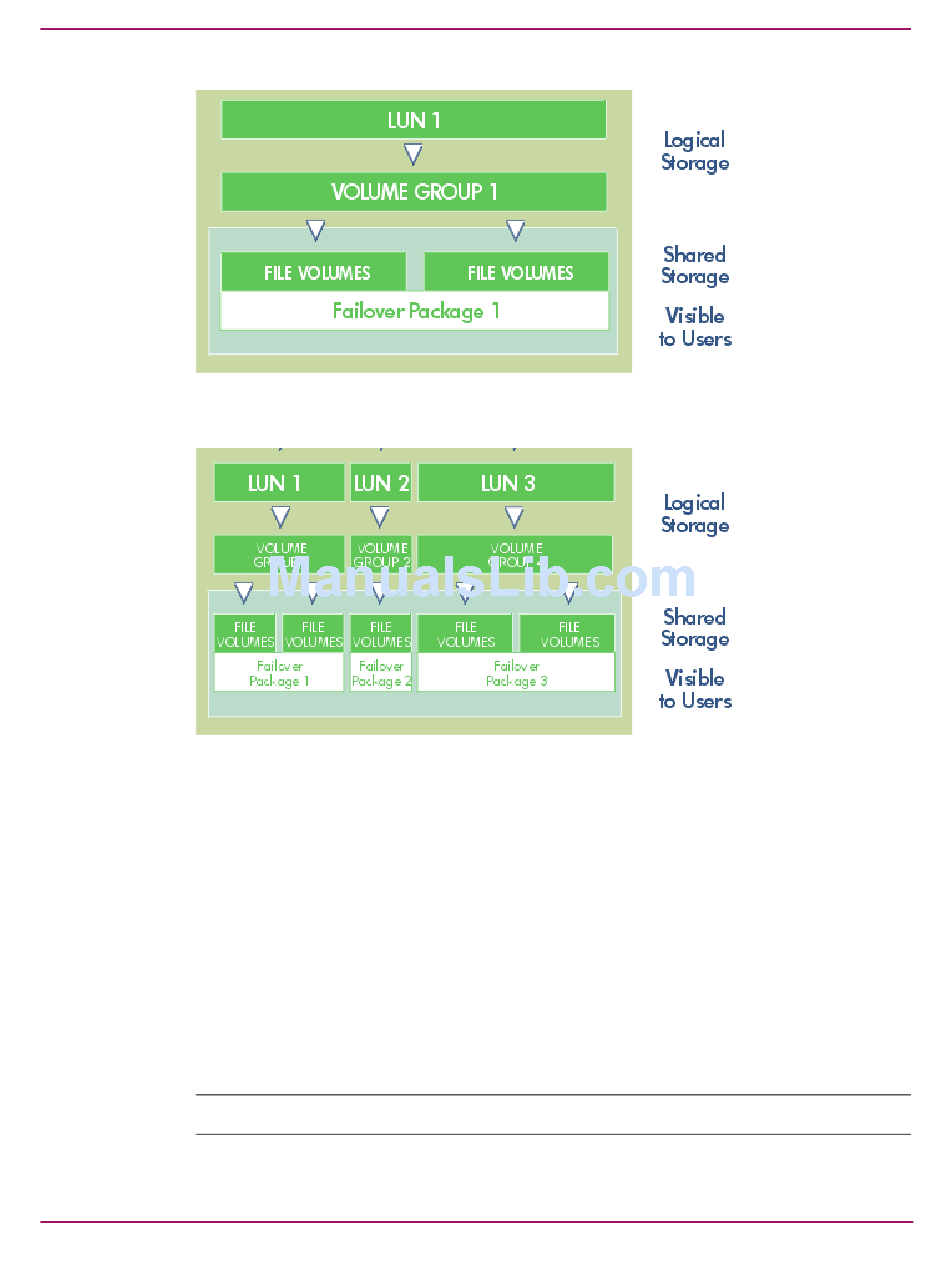

Figure 3: One LUN and One Volume Group for Active/Passive Failover
Figure 4: Multiple LUNs, Volume Groups and Failover Packages

Port Designation and Enumeration

Integrated Lights-Out (iLO)

The server's on-board NIC is dedicated to the Integrated Lights Out (iLO) controller. The iLO
is a management chip embedded in the NAS 8000 server. The iLO features are accessed from
a network client using a web browser. This allows an administrator to fully control the host
server's display (with keyboard and mouse control) from a remote location, regardless of the
state of the host server or the host server's operating system. Consequently, you can install,
configure, monitor, update, and troubleshoot your NAS 8000 from a desktop located
anywhere.
Note:
18
A separate network data line and IP address are required to use the iLO.
HP StorageWorks NAS 8000 SAN High Availability, Solution Integration Manual (SIM)
