Oven Door Parts - KitchenAid KDRP487MSS00 Parts List

48" free standing range dual fuel
Hide thumbs

Advertisement

Illus.
Part
No.
No.
DESCRIPTION
1
4455616 Door Liner
2
Hinge, Door
8300571 R.Side
8300572 L.Side
3
4449251 Glass, Inner
4
4451720 Insulation, Door
5
8300776 Retainer, Glass
7
4449247 Glass, Inner
8186112

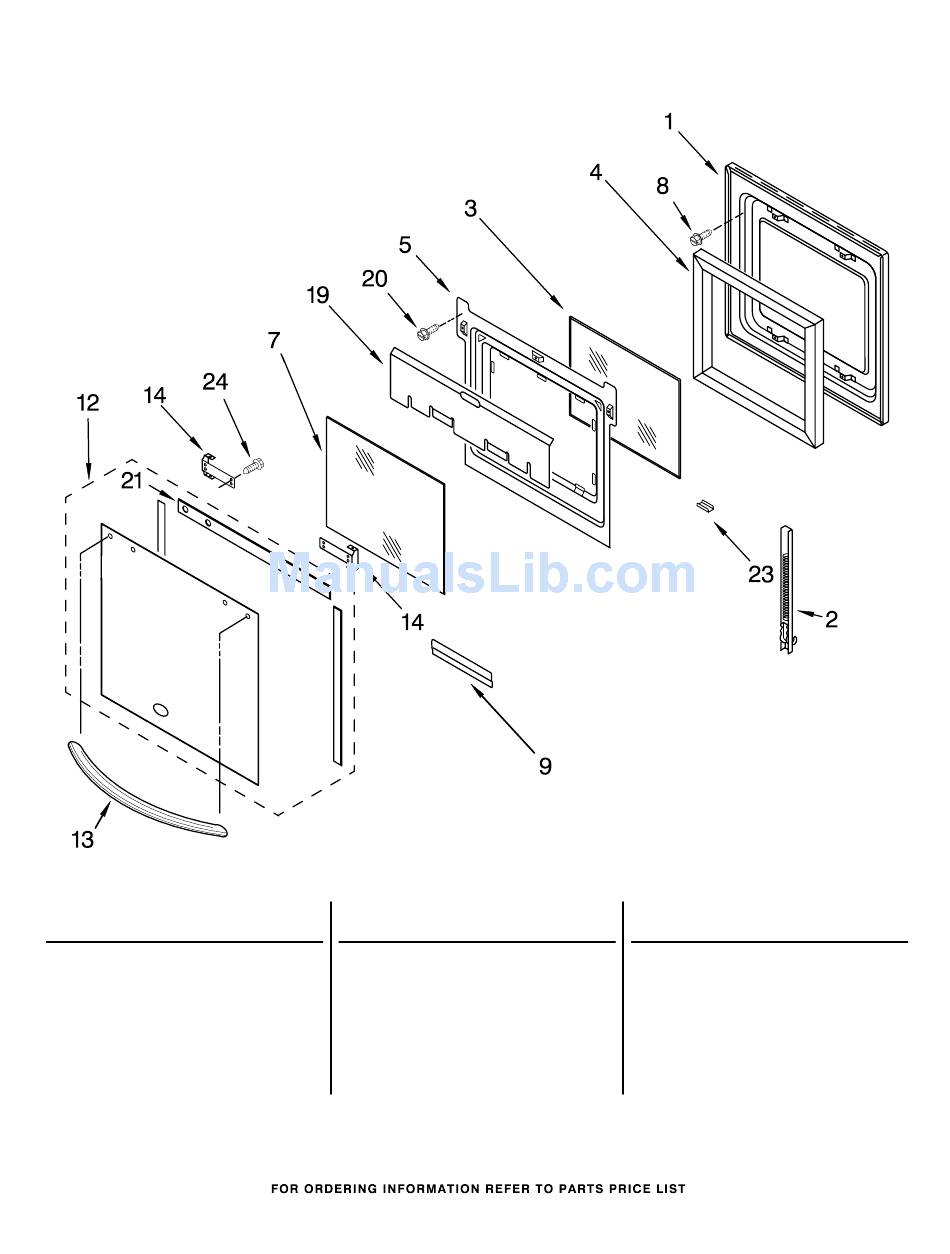

OVEN DOOR PARTS

For Model:KDRP487MSS00
(Stainless Steel)
Illus.
Part
No.
No.
DESCRIPTION
8
4449743 Screw, 8−32 x 3/8
9
4451668 Retainer, Glass
12
8301257 Assy, Door Glass
13
8301255 Door Handle
14
Bracket, Handle
4455803 Right Hand
4455804 Left Hand
3400832 Screw
3
Illus.
Part
No.
No.
DESCRIPTION
19
4450360 Shield, Heat
20
4449809 Screw, 8−18 x 3/8
21
8300853 Seal, Door Top
23
4450863 Retainer, Clip
3400832 Screw
24
3196184 Screw, 8−32 x .548
