Connecting to a conventional TV (continued)
DV-SL2000W

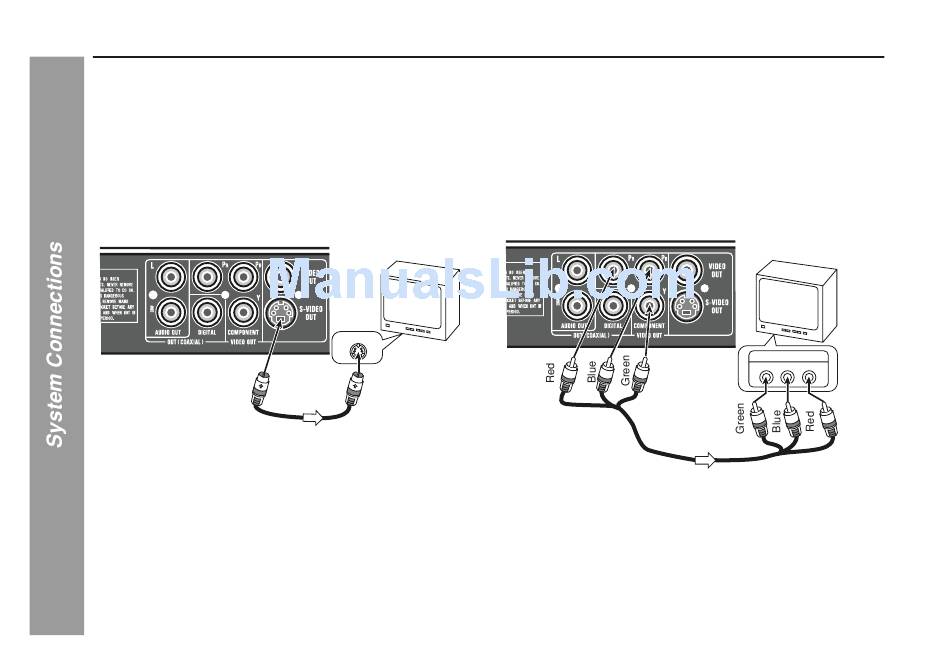

Using the S-VIDEO OUT socket
Notes:
Please follow the steps before turn on the power.
1. If your TV has the S-video input socket, connect the DVD player with the
S-video cable (not supplied). (The VIDEO OUT socket connection is not
necessary.)
You can enjoy clearer picture playback.
2. You also need to connect the left and right audio cables to the AUDIO OUT
sockets of DVD player and the Audio input sockets of the TV.
DVD player
*Please consult your local audio/video dealer.
9
TV
S-VIDEO IN 1
To S-video input
To S-VIDEO
socket
OUT socket
*S-video cable
(not supplied)
Using the COMPONENT VIDEO OUT sockets
Notes:
Please follow the steps before turn on the power.
1. If your TV has the component video input sockets, connect the DVD player
to these sockets. (The VIDEO OUT or S-VIDEO OUT socket connection is
not necessary.)
You can enjoy high quality picture playback.
2. You also need to connect the left and right audio cables to the AUDIO OUT
sockets of DVD player and the Audio input sockets of the TV.
DVD player
*Component video cable (not supplied)
TV
COMPONENT VIDEO INPUT
Y P P
B R
