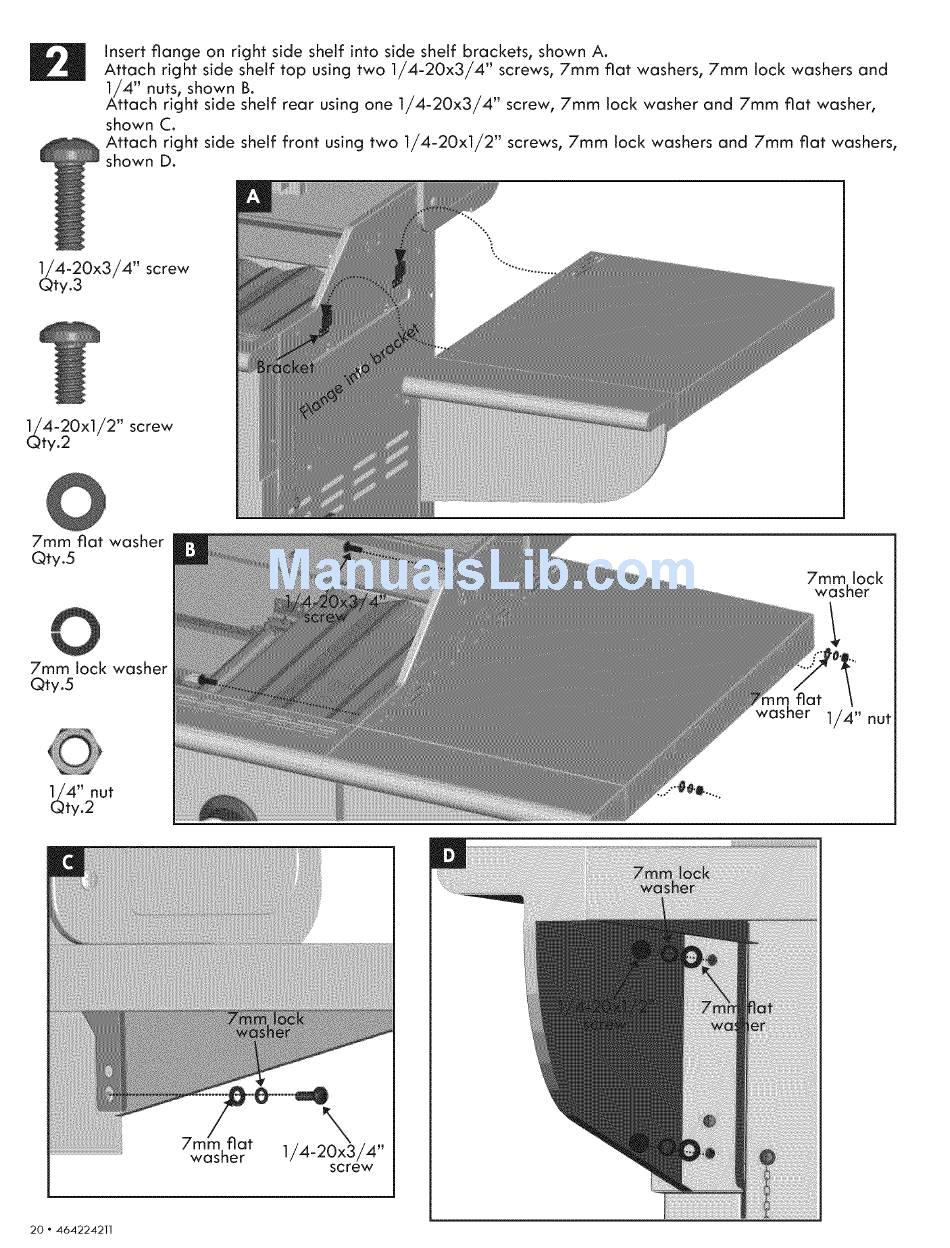

insert flange on right side shelf into side shelf brackets,
shown A.
Attach
right side shelf top using two 1/4-20x3/4"
screws, 7mm fiat washers, 7mm lock washers and
1/4" nuts, shown B.
Attach
right side shelf rear using one 1/4-20x3/4"
screw, 7mm lock washer and 7mm flat washer,
shown C.
Attach
right side shelf front using two 1/4-20xl/2"
screws, 7ram lock washers and 7ram flat washers,
shown D.
4-20x3/4
''
y.3
4-20xl/2"
ty.2
screw
screw
\
7mm flat washer
Qty.5
7mm lock
washer
7mm lock washer
Qty.5
lm fiat
washer
1/4" nut
7m/m fiat
washer
y
1/4-20x3/4
'
screw
20 ° 464224211
