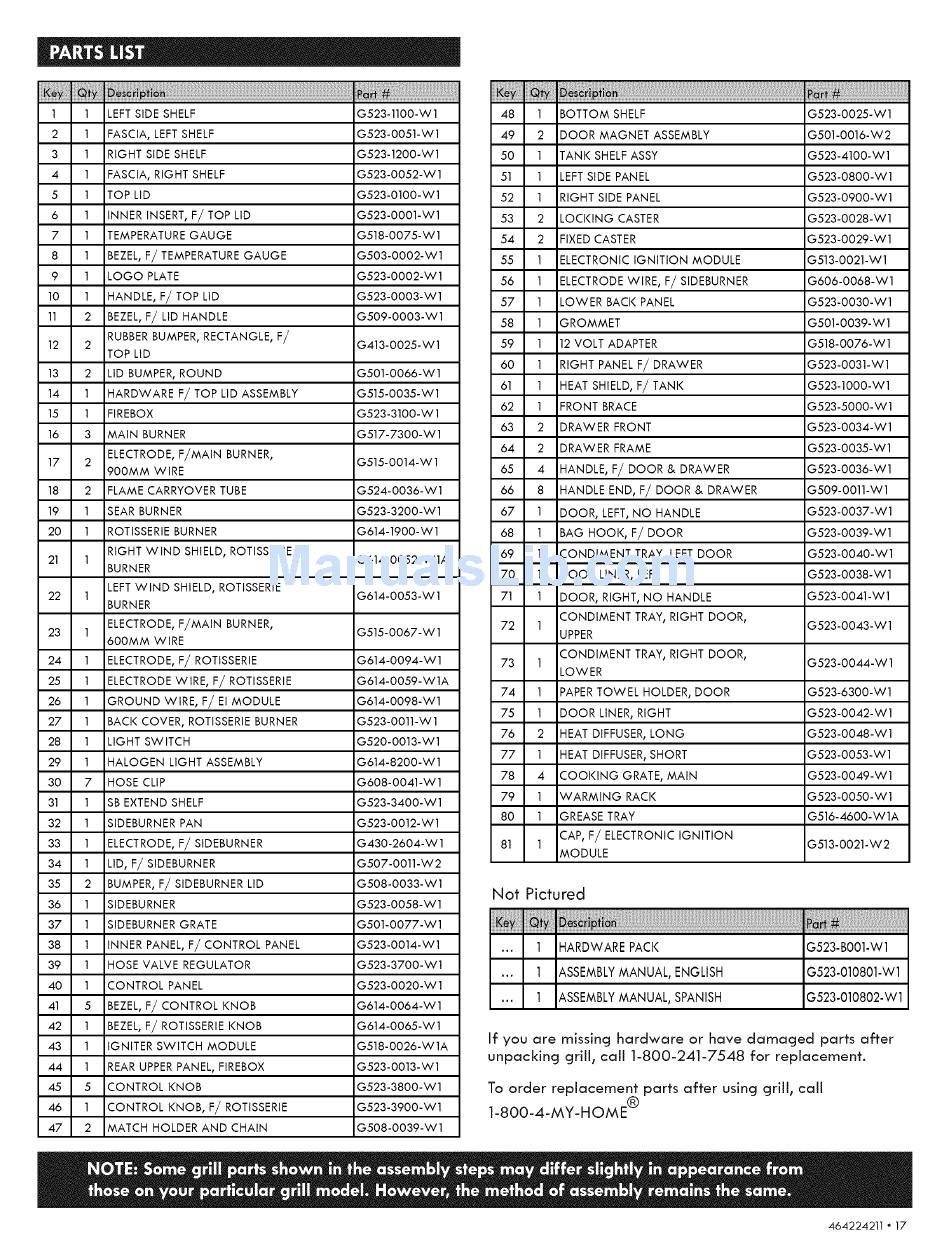

Kenmore 415.16139110 Use & Care Manual page 17

1 1 LEFT SIDE SHELF G523-1100-W1 48 1 BOTTOM SHELF G523-0025-W1
2 1 FASCIA, LEFT SHELF G523-OO51-W1 49 2 DOOR MAGNET ASSEMBLY G501-0016-W2
3 1 RIGHT SIDE SHELF G523-1200-W1 50 1 TANK SHELF ASSY G523-4100-W1
4 1 FASCIA, RIGHT SHELF G523-OO52-W1 51 1 LEFT SIDE PANEL G523-0800-W1
5 1 TOP LID G523-O100-W1 52 1 RIGHT SIDE PANEL G523-0900-W1
6 1 INNER INSERT, F/TOP LID G523-OOO1-W1 53 2 LOCKING CASTER G523-0028-W1
7 1 TEMPERATURE GAUGE G518-OO75-W1 54 2 FIXED CASTER G523-0029-W1
8 1 BEZEL, F/TEMPERATURE GAUGE G503-OOO2-W1 55 1 ELECTRONIC IGNITION MODULE G513-0021-W1
9 1 LOGO PLATE G523-OOO2-W1 56 1 ELECTRODE WIRE, F/SIDEBURNER G606-OO68-W1
10 1 HANDLE, F/TOP LID G523-OOO3-W1 57 1 LOWER BACK PANEL G523-0030-W1
11 2 BEZEL, F/ LID HANDLE G509-OOO3-W1 58 1 GROMMET G501-0039-W1
12 2 RUBBER BUMPER, RECTANGLE, F/ G413-OO25-W1 59 1 12 VOLT ADAPTER G518-OO76-W1
TOP LID
60 1 RIGHT PANEL F/DRAWER G523-0031-W1
13 2 LID BUMPER, ROUND G501-OO66-W1
61 1 HEAT SHIELD, F/TANK G523-1000-W1
14 1 HARDWARE F/TOP LID ASSEMBLY G515-OO35-W1
62 1 FRONT BRACE G523-5000-W1
15 1 FIREBOX G523-3100-W1
63 2 DRAWER FRONT G523-0034-W1
16 3 MAIN BURNER G517-7300-W1
64 2 DRAWER FRAME G523-0035-W1
17 2 ELECTRODE, F/MAIN BURNER, G515-OO14-W1
900MM WIRE 65 4 HANDLE, F/DOOR & DRAWER G523-0036-W1
18 2 FLAME CARRYOVER TUBE G524-OO36-W1 66 8 HANDLE END, F/DOOR & DRAWER G509-0011-W1
19 1 SEAR BURNER G523-3200-W1 67 1 DOOR, LEFT, NO HANDLE G523-0037-W1
20 1 ROTISSERIE BURNER G614-1900-W1 68 1 BAG HOOK, F/DOOR G523-0039-W1
RIGHT WIND SHIELD, ROTISSERIE 69 1 CONDIMENT TRAY, LEFT DOOR G523-0040-W1
21 1 G614-OO52-W1A
BURNER 70 1 DOOR LINER, LEFT G523-0038-W1
LEFT WIND SHIELD, ROTISSERIE
22 1 BURNER G614-OO53-W1 71 1 DOOR, RIGHT, NO HANDLE G523-0041-W1
ELECTRODE, F/MAIN BURNER, 72 1 CONDIMENT TRAY, RIGHT DOOR, G523-0043-W1
23 1 G515-OO67-W1 UPPER
600MM WIRE
24 1 ELECTRODE, F/ ROTISSERIE G614-OO94-W1 73 1 CONDIMENT TRAY, RIGHT DOOR, G523-OO44-W1
LOWER
25 1 ELECTRODE WIRE, F/ROTISSERIE G614-OO59-W1A
74 1 PAPER TOWEL HOLDER, DOOR G523-6300-W1
26 1 GROUND WIRE, F/El MODULE G614-OO98-W1
75 1 DOOR LINER, RIGHT G523-0042-W1
27 1 BACK COVER, ROTISSERIE BURNER G523-OO11-W1
76 2 HEAT DIFFUSER, LONG G523-0048-W1
28 1 LIGHT SWITCH G520-OO13-W1
77 1 HEAT DIFFUSER, SHORT G523-0053-W1
29 1 HALOGEN LIGHT ASSEMBLY G614-8200-W1
78 4 COOKING GRATE, MAIN G523-OO49-W1
30 7 HOSE CLIP G608-OO41-W1
31 1 SB EXTEND SHELF G523-3400-W1 79 1 WARMING RACK G523-0050-W1
80 1 GREASE TRAY G516-4600-W1A
32 1 SIDEBURNER PAN G523-OO12-W1
33 1 ELECTRODE, F/SIDEBURNER G430-2604-W1 81 1 CAP, F/ELECTRONIC IGNITION G513-0021-W2
MODULE
34 1 LID, F/SIDEBURNER G507-OO11-W2
35 2 BUMPER, F/SIDEBURNER LID G508-OO33-W1
Not Pictured
36 1 SIDEBURNER G523-OO58-W1
37 1 SIDEBURNER GRATE G501-OO77-W1 pt_
38 1 INNER PANEL, F/CONTROL PANEL G523-OO14-W1 ... 1 HARDWARE PACK G523-B001-W1
39 1 HOSE VALVE REGULATOR G523-3700-W1 ... 1 ASSEMBLY MANUAL, ENGLISH G523-010801-W1
40 1 CONTROL PANEL G523-OO20-W1
41 5 BEZEL, F/CONTROL KNOB G614-OO64-W1 ... 1 ASSEMBLY MANUAL, SPANISH G523-010802-W1
42 1 BEZEL, F/ROTISSERIE KNOB G614-OO65-W1
If you are missing hardware or have damaged parts after
43 1 IGNITER SWITCH MODULE G518-OO26-W1A
unpacking grill, call 1-800-241-7548 for replacement.
44 1 REAR UPPER PANEL, FIREBOX G523-OO13-W1
45 5 CONTROL KNOB G523-3800-W1
To order replacement parts after using grill, call
46 1 CONTROL KNOB, F/ ROTISSERIE G523-3900-W1
1_800_4_MY_HOME ®
47 2 MATCH HOLDER AND CHAIN G508-OO39-W1
464224211 • 17
