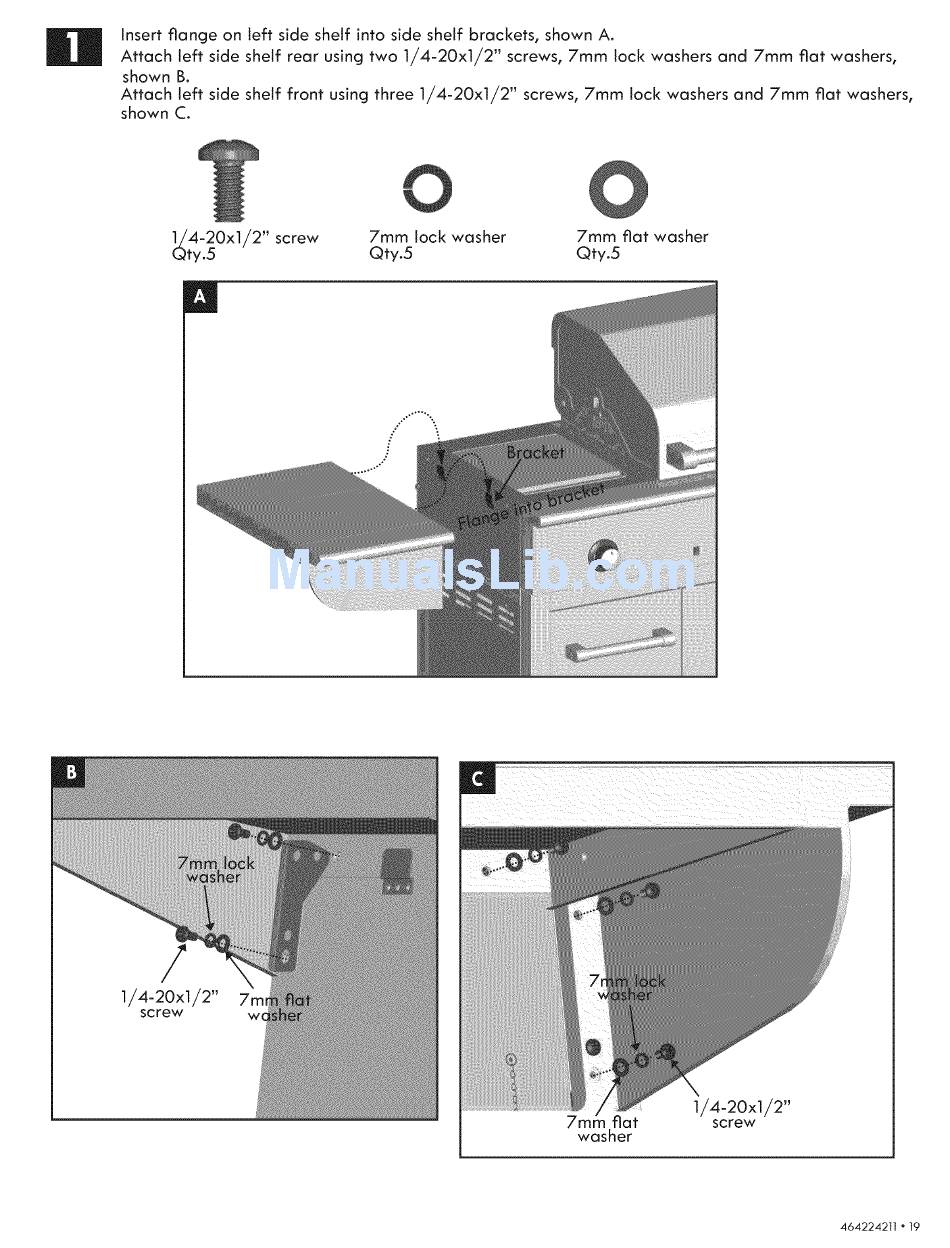

insert flange on left side shelf into side shelf brackets,
shown A.
Attach
left side shelf rear using two 1/4-20xl/2"
screws, 7mm lock washers and 7mm fiat washers,
shown Bo
Attach
left side shelf front using three 1/4-20xl/2"
screws, 7mm lock washers and 7mm fiat washers,
shown C
4-20x1/2
'' screw
7mm lock washer
y.5
Qty.5
m
©
7mm fiat washer
Qty.5
7mi
fiat
washer
1/4-20xl/2"
screw
464224211
° 19
