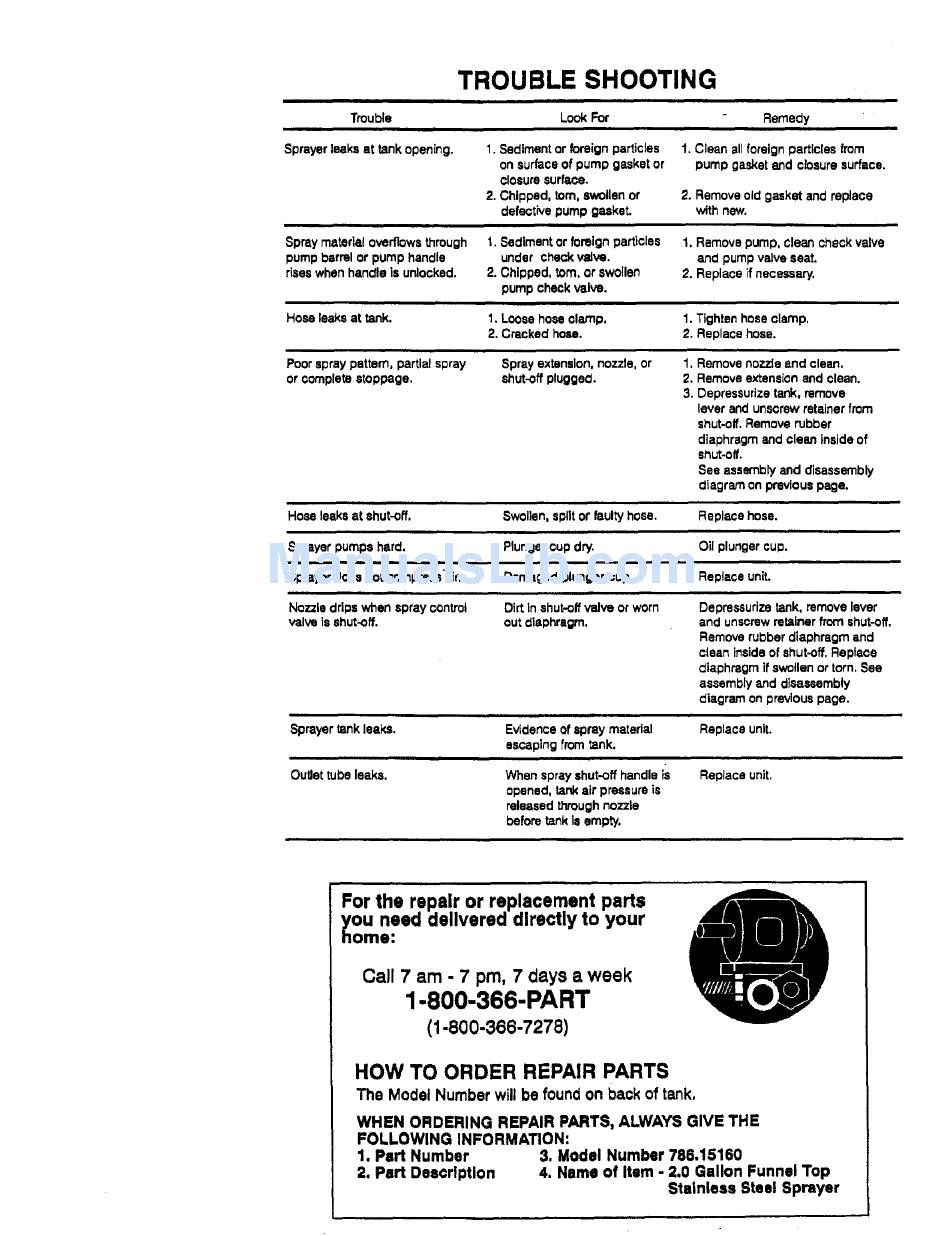

TROUBLE SHOOTING
i
Trouble
Look For
Remedy
iiii
Sprayer leaks at tank opening.
1. Sediment or foreign particles
1. Clean all foreign particles from
on surface of pump gasket or
pump gasket and closure surface.
closure surface.
2. Chipped, tom, swollen or
2. Remove old gasket and replace
defective pump gaskeL
with new.
Spray material overflows through
1. Sediment or foreign particles
1. Remove pump, clean check valve
pump barrel or pump handle
under check valve,
and pump valve seat.
rises when handle is unlocked.
2. Chipped. _om. or swollen
2. Replace if necessary.
pump check valve.
,,m
Hose leaks at tank.
1. Loose hose clamp.
1. Tighten hose clamp.
2. Cracked hose.
2. Replace hose.
Poor spray pattern, partial spray
Spray extension, nozzle, or
1. Remove nozzle and clean.
or complete stoppage,
shut.off pluggecl.
2. Remove extane[on and clean.
3. Deprassurize tank, remove
lever and unscrew retainer from
shut.off. Remove rubber
diaphragm and clean inside of
shut-off.
See assembly and disassembly
diagram on previous page.
Hose leaks at shut-off.
Swollen. split or faulty hose.
Replace hose.
Sprayer pumps hard.
Plunger cup dry.
Oil plunger cup.
Sprayer does not compressair.
Damaged plunger cup.
Replace unit.
Nozzle drips when spray control
valve is shut-off.
Sprayertankleaks.
Dirt In shut.off valve or worn
out diaphragm.
i.
Evidence of spray material
escaping from _ank.
Depressurize tank. remove lever
and unscrew retainer from shut-off.
Remove rubber diaphragm and
clean inside of shut-off. Replace
cliaph_gm if swollen or torn. See
asseml01y and disassembly
diagram on previous page.
Replace unit.
OuUet t uDeleaks.
When sprayshut-.off h andleis
opened, tankair pressure is
releasedthrough nozzle
before tankis empty.
Replace unit.
For the repair or replacement
parts
ou need delivered directly to your
_ome:
Call 7 am - 7 pro, 7 days a week
1-800-366-PART
(1-800-366-7278)
HOW TO ORDER REPAIR PARTS
The Model Number will be found on back of tank.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
1. Part Number
3. Model Number 756.15160
2. Part Description
4. Name of Item - 2.0 Gallon Funnel Top
Stainless Steel Sprayer
