Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
8113P622−60 Manual, Owners
8119P367−60 Wiring Diagram
2
Grate, Double
74009143 Black
74009145 Gray
11−11 Litho in U.S.A. (amd) (eeb)

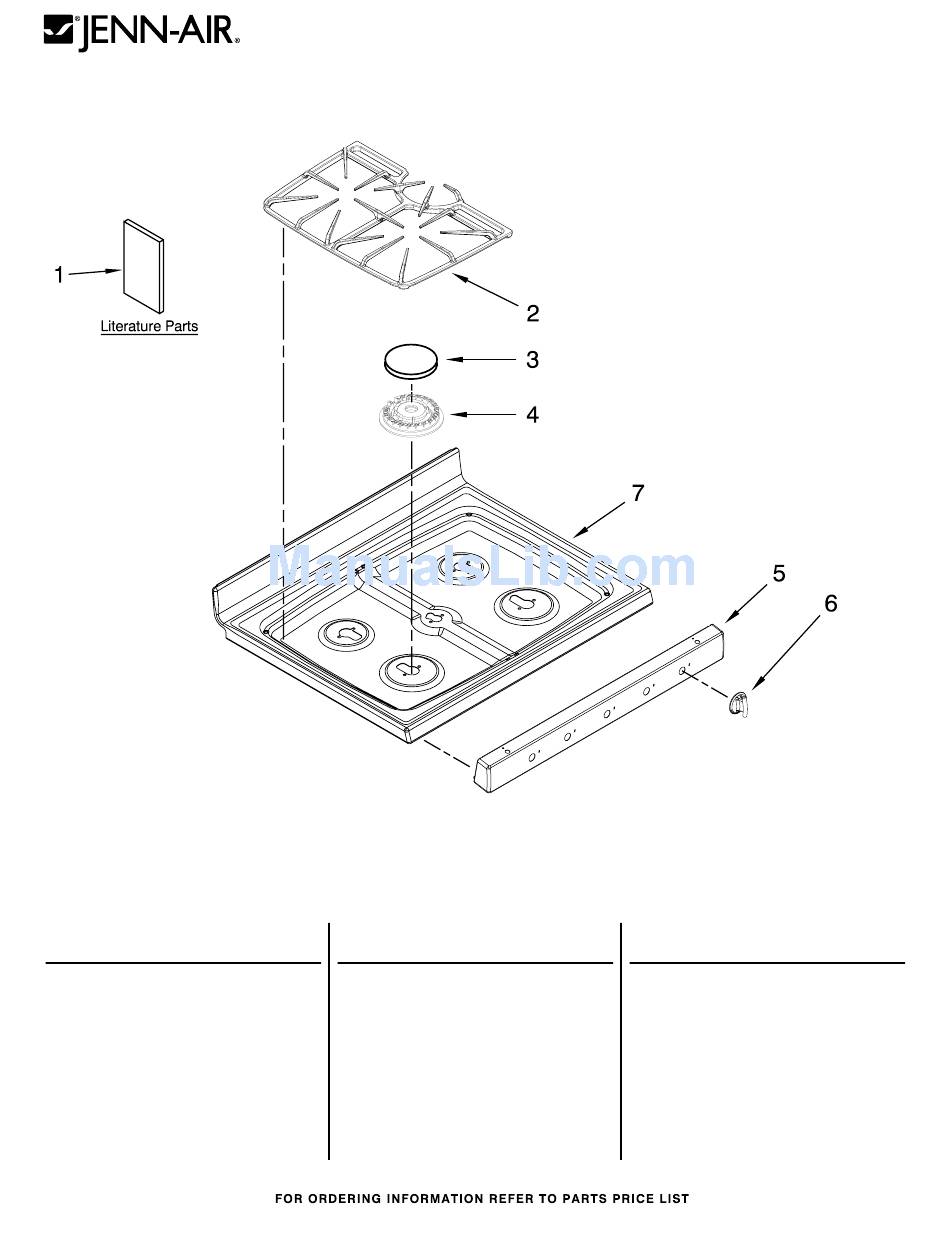

COOKTOP PARTS
For Models: JDR8880RDB10, JDR8880RDW10, JDR8880RDS10
(Black)
Illus.
Part
No.
No.
3
74007414 Black, (LF)
74007416 Black,(LR)
74007925 Black,Medium (3)
74007420 Gray,(RF)
74007422 Gray,(LR)
74007752 Gray,Medium (3)
4
74007411 5K, Center (1)
74007413 16K, RF
74007698 12K,9.2K (3)
(White)
(Stainless)
Illus.
DESCRIPTION
No.
Cap, Burner
Base, Burner
1
30" FREE STANDING
DUAL FUEL
CONVECTION RANGE
Part
No.
DESCRIPTION
5
Panel, Manifold
74009138 Black
74009139 White
74009146 Stainless
6
74009147 Knob, Valve
7
Cooktop
74009086 Black
74009087 White
Part No. W10141329 Rev. B
Advertisement
Table of Contents
Related Manuals for Jenn-Air JDR8880RDB10
Summary of Contents for Jenn-Air JDR8880RDB10
- Page 1 COOKTOP PARTS 30" FREE STANDING DUAL FUEL For Models: JDR8880RDB10, JDR8880RDW10, JDR8880RDS10 CONVECTION RANGE (Black) (White) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Cap, Burner Panel, Manifold 8113P622−60 Manual, Owners 74007414 Black, (LF) 74009138 Black 8119P367−60 Wiring Diagram 74007416 Black,(LR) 74009139 White...
- Page 2 CONTROL PANEL PARTS For Models: JDR8880RDB10, JDR8880RDW10, JDR8880RDS10 (Black) (White) (Stainless) Illus. Part DESCRIPTION End Cap 74009022 Black (Right) 74009023 Black (Left) 8507P333−60 Control Backgaurd Assy. 74011912 Black 74011913 Stainless 74011914 White Sheild, Heat Visor 74009202 Black 74009203 White 74010983 Cover, Rear Wire 74001530 Screw 74009444 Shield, Vent 74011982 Bracket, Control...
- Page 3 OVEN PARTS For Models: JDR8880RDB10, JDR8880RDW10, JDR8880RDS10 (Black) (White) (Stainless) W10141329...
- Page 4 OVEN PARTS For Models: JDR8880RDB10, JDR8880RDW10, JDR8880RDS10 (Black) (White) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Panel, Side 74008690 Spacer, Side Panel 74008715 Switch, Limit 74008709 White 74011896 Latch, Door Lock 74008340 Panel, Access 74009710 Black 74011278 Light, Oven 74008760 Cover, Wire Lower 74008701 Retainer, Side 7407P103−60 Bulb, Oven Light...
- Page 5 MANIFOLD PARTS For Models: JDR8880RDB10, JDR8880RDW10, JDR8880RDS10 (Black) (White) (Stainless) Illus. Part DESCRIPTION 74009098 Module, Spark 74008815 Pipe, Manifold Valve, Burner 74010629 5K Copreci (1) 74010751 16K Copreci (1) 74010752 12K Copreci (3) 74010753 Harness, Switch Orifice Holder 74009099 RF 74009100 RR 7527P097−60 Center 7527P100−60 LR...
- Page 6 DRAWER PARTS For Models: JDR8880RDB10, JDR8880RDW10, JDR8880RDS10 (Black) (White) (Stainless) Illus. Part DESCRIPTION 74005546 Spacer, Rubber 74008877 Drawer, Service 74009105 Sheild, Heat 74009268 Screw 74008908 Handle, Drawer 7103P082−60 Nut 74005231 Shaft, Roller 74004078 Roller, Drawer 7101P072−60 Screw Panel, Drawer 74008856 White 74009035 Black 74009518 Panel, Drawer (Stainless Models)
-
Page 7: Door Parts
DOOR PARTS For Models: JDR8880RDB10, JDR8880RDW10, JDR8880RDS10 (Black) (White) (Stainless) W10141329... - Page 8 DOOR PARTS For Models: JDR8880RDB10, JDR8880RDW10, JDR8880RDS10 (Black) (White) (Stainless) Illus. Part DESCRIPTION 7902P805−60 Glass, Outer 311426 Nut 74008914 Spacer, Handle 7760P218−60 Panel, (Stainless) 74008920 Handle, Door Trim, Side 74010560 Black 74010561 White Glass, Door 74008684 White 74008686 Black Trim, Bottom 74008757 White 74008889 Black Tape,Double Sided...
