Jenn-Air JXT6030ADR0 Parts List

5−11 Litho in U.S.A. (MP) (eeb)

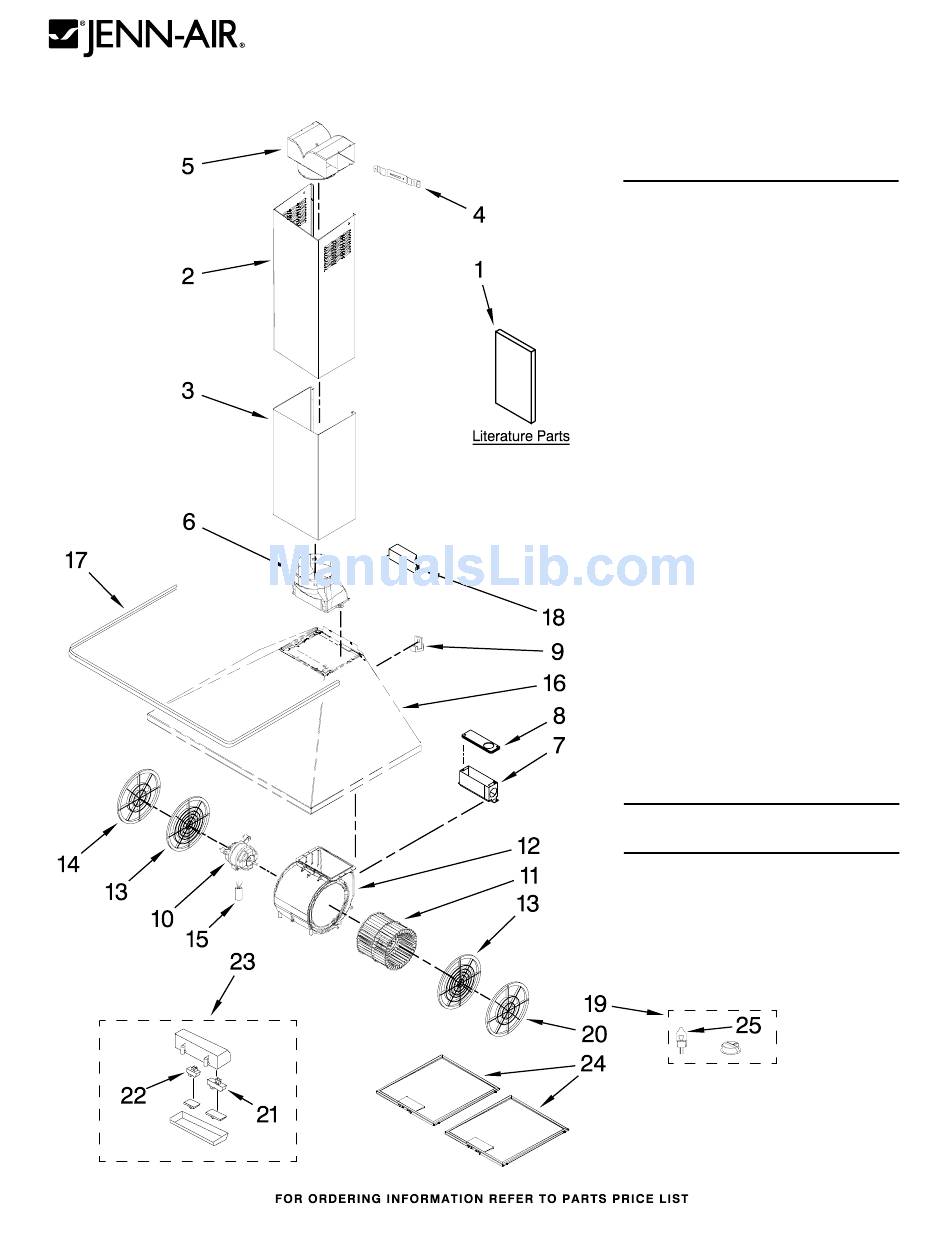

HOOD PARTS

For Models: JXT6030ADR0, JXT6036ADR0
(Oil Bronze)
1
(Oil Bronze)
Illus. Part
No. No.
1
W10173691 30" Hood
W10173692 36" Hood
2 W10169943 Chimney, Upper
3 W10169941 Chimney, Lower
4 8190843 Bracket, Mounting
5 W10169958 Duct, Air Diverter
6 W10169956 Duct, Air Connect
7 W10169952 Box, Control
8 8186708 Cover
9 8190805 Bracket, Mounting
10 W10169948 Motor, Fan
11 W10169955 Wheel, Blower
12 8190813 Housing, Fan Motor
13 W10169945 Endcap, Blower
14 W10169962 Filter, Charcoal
15 8186677 Capacitor
16
17
W10169944 30" Hood
W10169976 36" Hood
18 8186686 Transformer
19 8186678 Bulb Assembly
20 W10169946 Support, Motor
21 8190854 Switch, Motor
22 8190855 Switch, Light
23 W10169947 Slider, Control
24 W10169961 Filter, Grease
25 W10298151 Bulb, Halogen
FOLLOWING PARTS
NOT ILLUSTRATED
W10169963 Hardware, Mounting
Part No. W10169982 Rev. B
30/36" RANGE HOOD
(VENTED)
DESCRIPTION

Literature Parts

Use & Care Guide
Canopy
(Not Serviced)
Trim (Frame)
(110−127V,20−6W)
(Complete)
