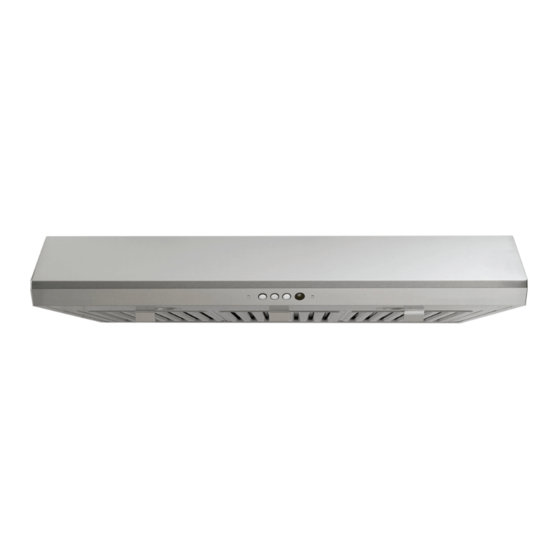

- Page 1 WINi:JS're~TM MODEL: RA.3030/3036 RA.3130/3136 OPERATION MANUAL c@~s 230302 read and save this guide through before using your range hood Please Store the guide away in a safe place so that you will know where it is. when you want to refer to it.
-
Page 2: Important Safety Instructions
A. Important Safety Instructions Read and Save These Instructions CAUTION- To reduce risk of fire and to properly exhaust air. be sure to duct air outside- Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages. WARNING- To reduce the risk of fire or electric shock. - Page 3 WARNING- To reduce the risk of injury to persons in the event of a range top grease fire. observe the following: A- SMOTHER FLAMES with a close- fitting lid. cookie sheet. or metal tray, then turn off the burner. Be careful to preven burns.
-
Page 4: Safety Notes
B. Safety Notes 1. Allelectrical must be done in accordance with local and/or work national electrical code as applicable for safety. This product must be grounded if your are unfamiliar with methods of installing electrical wiring, secure the services of a qualified electrician. 2. -
Page 5: Tools And Materials Required
c. Tools and Materials Required ~ Drill.electric of ratchet drive. with 3/16" wood bit (for drilling starter holes and 1 ¥4 "wood bit (to drill an access holes in the cabinet or kitchen wall for the electric power line) ~ One common screwdriver. ~ Plier (for opening electrical knockout). -
Page 6: Preparing The Range Hood
E. Preparing The Range Hood 1. Remove the top electrical knockout. you may plan to ~"~I Knooko", bring power to the range hood either through the cabinet or through the wall (Fig.1) Fig. 2. Insert a screwdriver into the knockout slot and bend the knockou and forth. -
Page 7: Preparing The Installation
F. Preparing The Installation Location Note: Please also refer P.11 "J. Making the Electrical Connection' 1. A. If you want to move the electric range to make room for working on the cabinet turn off the 220 volt power for the electric range at the service entrance. -
Page 8: Providing Electrical Power
4. Screw the four 1"wood screws (tor mounting the hood) into the exact center of the arrow and of the keyhole mounting slots marked on the cabinet bottom (for flush installations), or marked on the 1"x2"wood strips (tor recessed cabinet installation) (Fig.7) Do not turn the mounting screws in all the way. - Page 9 Wiring to power supply & SAFETY WARNING RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
- Page 10 H. Mounting Range Hood To Cabinet Note: Please also refer P.11 "J. Making the Electrical Connection' 1. Position the hood in place so that: a. The electrical line is routed through the appropriate Knockout opening. This step will have to be accomplished while positioning the hood (Fig.1 0) b.
- Page 11 I. Mounting Range Hood Without Cabinet Note: Please also refer P.10 "J. Making the Electrical Connection' 1. Using metal brackets and screws (included), center hood onto board and install screw. 2. Remove the hood from the board and nail the wood board onto the wall. (Be sure the nail is in the center of the stud) 3.
- Page 12 J. Making the Electrical Connection 1. Turn the six nuts at the front/back of bottom board. ( Fig.13) 2. Remove screws on wiring case. fish out wires through the knockout. (Fig.13) screw Fig.! 3. Mark the electrical connection by fastening all wires to the existing wall wiring according to the their colors.
- Page 13 K. Use and Care ..Operate switches (Fig.9) Fig.9 Switch A: ON I OFF I DELAY press" "ON" - When the hood is "OFF", turn on the blower by operate at second speed and LED button once the blower will light indicate "2", press"...
-
Page 14: Halogen Light Replacement
L. Halogen light replacement Note: The halogen light will be very hot when it is working Never touch it with bare hand(s). Before changing halogen light ensure the unit is switched off and the halogen light is cool. Note: Ensure the unit is switched off. -
Page 15: Maintenance
M. Maintenance Instruction 1. Maintenance shall be important than repair. Please take care of the needed maintenance in order to secure and extend the excellent functions and using life. Note: Before repairing the range hood. Disconnect the power source. 2. After using the machine. wipes the machine by neutral detergent order to keep it clean and maintain the appearance with brightness and sanitation. -
Page 16: Parts Layout Diagram
o. Parts Layout Diagram 13 Safety mesh Chamber Machine b ody Control switch 14 Oilcollector ( round) Motor 15 Hanging bracket Halogen l ight 16 Innerductcoyer(optional) Transformer 10 Oiltunnel 11 Bottom board 17 Outer ductcoyer(optional) Capacitor 18 Duct c oyer-mounting 12 Oilcollector ( oval) bracke Capacitor bracket... -
Page 17: Circuit Diagram
P. Circuit Diagram NOTE: Any faults with this unit should only be attended to by a qualifiec technician. G)§@@ -16-... - Page 18 Q. Size o Model: RA-3030 / RA-3036 Model: RA-3130 / RA-3136 / RA-3142 / RA-314E -17-...
